Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 pc
Supply Capability:100000 pc/month
Quick Details
Place of Origin: | China (Mainland) | Brand Name: | xrsolar | Model Number: | ERC-156M-3BB |
Material: | Monocrystalline Silicon | Size: | 6 inch | Number of Cells: | 1 |
Max. Power: | 4.3W | Material:: | monocrystalline Silicon | Size:: | 156mmx156mm or 6 inch |
Max. Power:: | 4.3 watts | efficiency:: | 16%-17.8% | busbar:: | 3 |
Color: | Dark Blue | Voltage:: | 0.508V-0.53V | Thickness:: | 190um±20um |
Packaging & Delivery
Packaging Details: | 100pcs in one box,1000pcs per carton, standard export carton |
Delivery Detail: | 5-7 days after received the payment |
Specifications

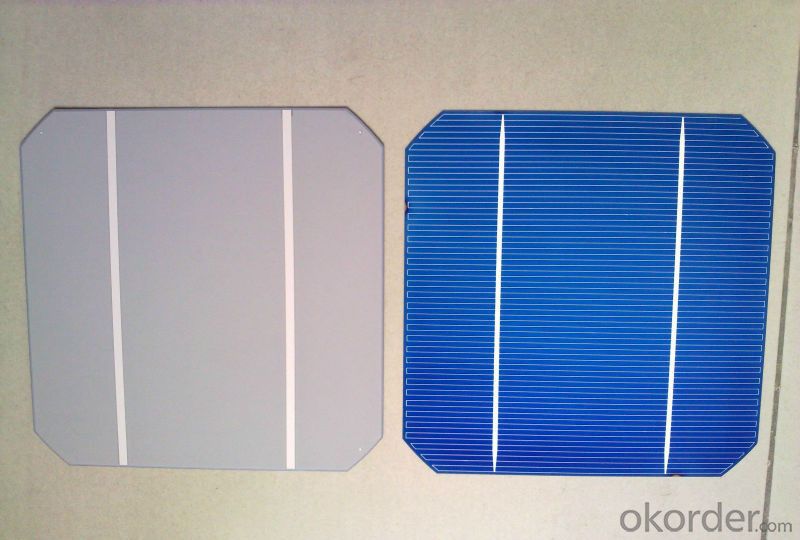

3BB Monocrystallin Best Solar Cell Price
1.Size: 6*6 solar cell
2. Efficiency:4.3WMonocrystallin Best Solar Cell Price
6 Inch 3BB Monocrystallin Best Solar Cell Price
Dimension: 156mm x 156mm
Diagonal: 200mm (round chamfers)
Front: Anisotropically texturized surface and dark silicon nitride
anti-reflection coating
1.9mm silver busbars
Back: Full-surface aluminum back-surface field
4.0mm (silver / aluminum) continuous soldering pads
Features
1.High conversion efficiencies resulting in superior power output performance.
2.Outstanding power output even in low light or high temperature conditions
3.Optimized design for ease of soldering and lamination
4.Long-term stability,reliability and performance
5.Low breakage rate
6.Color uniformaity
Packaging & Shipping
1. Item are only shipped after PAYMENT is received.
2.Originally our solar cells are 100 pieces per box, 10 boxes per carton.
2. Please check out your ADDRESS carefully when processing order.
3. Please CONTACT us ASAP if you haven't received the parcel.
Shipping will be made via EMS, DHL, Fedex, UPS , TNT etc
FAQ:
FAQ:
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangsu
2. Q: How can I visit your factory?
A: Before you visit,please contact us.We will show you the route or arrange a car to pick you up.
3. Q: Do you provide free sample?
A: Commenly we provide paid sample.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept it.And need an Authorization Letter from you.
