Solar Controllers Buyers:Street Light Controller 24V Economical Wind Solar Hybrid

Loading Port:Shanghai

Payment Terms:TT or LC

Min Order Qty:1 unit

Supply Capability:10000 unit/month

Product Description:

I. PRODUCT INTRODUCTION

The wind/solar hybrid street light controller is specially designed for high-end small-scale wind/solar hybrid system and especially suitable for wind/solar hybrid street light system and wind/solar hybrid monitoring system. It can simultaneously control wind turbine and solar panel and transform the wind and solar energy into electricity for the DC load use, with excess energy stored into batteries. Varieties of appearance and function design, which is flexible to meet the requirements of different customers.

II. PERFORMANCE FEATURES

 Superior military-grade components to ensure the product stability.

 Perfect protection function, thus the system has higher reliability.

 LED、digits indicator for freely check and set various of status parameters.

 Voltage limiting and current-limiting charge mode ensures battery in the best charging status.

 Two DC Load output, light-control, time-control, constant output, and multiple output control mode selection

 PWM stepless unload mode, which burn the excess power into Dump load, making the battery charging in best status.

 High quality aluminum alloy appearance, with small size and good cooling effect.

III. APPLICATION AREAS

 Stand alone wind/solar hybrid power station.

 Stand alone domestic household wind/solar hybrid power system.

 Mobile Communication base stations, expressway and other non-residential regions.

 Coastal islands, remote mountainous, border posts for regions shortage of or without electricity.

 Government demonstration projects, landscape lighting project, street light project etc.



IV. 24V TECHNICAL PARAMETERS

Product Model

WWS03-24-B00D

WWS04-24-B00D

WWS06-24-B00D

Rated Battery Voltage

24V

24V

24V

Rated Wind Turbine Input Power

300W

400W

600W

Wind Turbine Maximum Input Power

450W

600W

900W

Wind Turbine

Brake Current

15A

20A

30A

Rated solar input power

200W

Wind Turbine Charge Shutoff Voltage

29V

Wind Turbine Charge Recovery Voltage

26.4V

Battery Under Voltage Shutoff

21.6V

Battery Under Voltage Recovery

24V

Input over voltage shutoff

32V

PV Voltage Of Light-Control On

2V

PV Voltage Of Light-Control Off

3.2V

Load 1 and load 2 rated output current

10A

Load 1 output control mode

Light-Control On and Light-Control Off

Load 2 output control mode

Light-Control On and Time-Control 5 hours

Dumpload control mode

PWM

Display mode

LED digits indicator

Cooling

Aluminium alloy shell radiating

Protection Level

IP53(Indoor)

Quiescent current

≤20 mA

Display content

Over-voltage, Over-discharge, Overload, Short-circuit, Night etc.

Protection function

Solar reverse charge protection , Solar reverse connection protection,

Battery over charge protection, Battery over discharge protection,

Battery reverse connection protection, Over Load protection, Short-circuit protection, Lightning protection, Wind turbine current limiting, Wind turbine automatic brake and manual brake.

Ambient temperature

-20~+55℃

Ambient Humidity

0~93%, without condensing

Working aititude

≤4000m

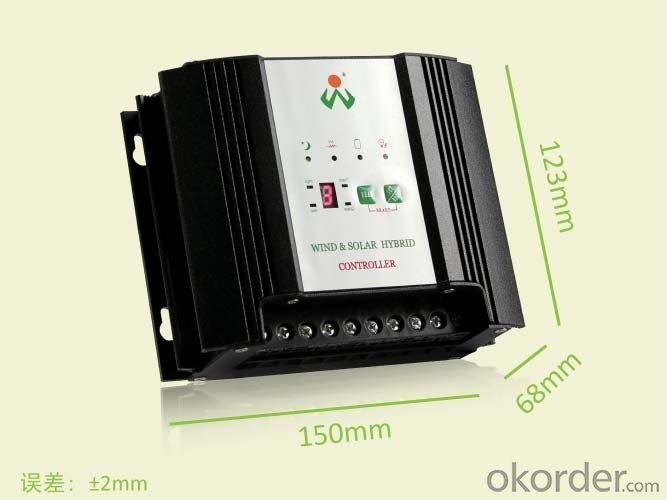

Dimension

125×152×62mm

Net weight

0.75kg

In order to serve our customers better, our company can adjust parameters configuration according to customer’s requirement.
