Introduction of High Quality Solar Controller VS1024N-3024N

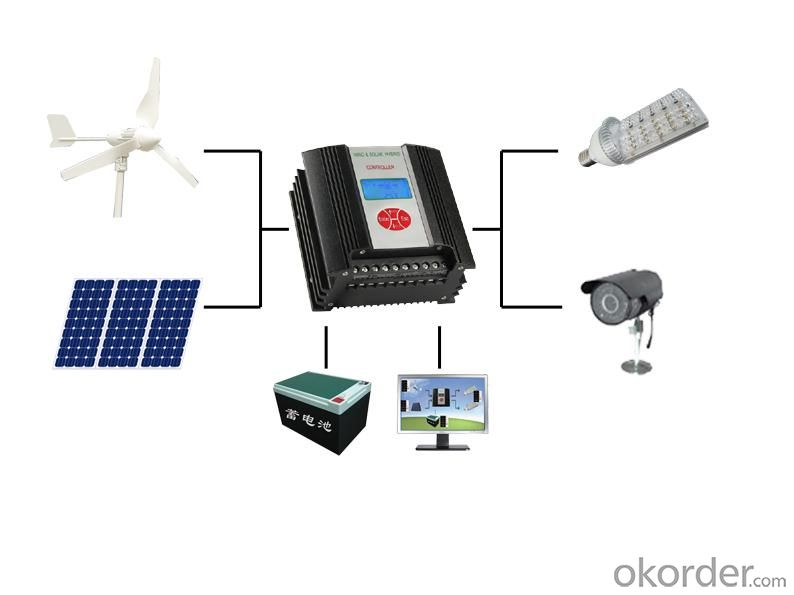

VS1024N-3024N solar controller is our new generation controller for off-grid solar system, such as street light, solar home system or small power station etc.VS1024N-3024N has LCD display, reliable battery charging, full electronic protection, programmable parameters and other features and powerful function.
Our factory is highly recognized by its business partners and clients all over the world and has obtained rapid development under the spirit of win-win .With Solar Controller VS1024N-3024N,We will carry on the mutual beneficial,innovative and revolutionary trading structure as we did before,create value for our employees,share holders and clients and benefit the whole society in our future development.Please contact us ,if you have interest in Solar Controller VS1024N-3024N,don’t hesitate!
Features of High Quality Solar Controller VS1024N-3024N
·Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, integrated menu displaying and operation
·32 bit MCU with high speed
·12 bit A/D high-precision sampling to ensure accuracy
·Excellent EMC design
·High efficient Series PWM charging
·Use MOSFET as electronic switch
·Widely used, automatically recognize day/night
·Humanized design of browser interface, undertake every operating conveniently
·Full control parameters setting and modification, diversified load control mode
·Gel, Sealed and Flooded battery type option
Electronic Protections of High Quality Solar Controller VS1024N-3024N
·Overheating
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV reverse polarity
·Battery reverse polarity
Data Sheet of High Quality Solar Controller VS1024N-3024N | |||
Model | VS1024N | VS2024N | VS3024N |
Rated system voltage | 12/24V auto work | ||
Rated battery current | 10A | 20A | 30A |
Rated load current | 20A | ||
Max.battery voltage | 32V | ||
Self-consumption | <18mA | ||
Charge Circuit Voltage | <=0.26V | ||
Discharge Circuit Voltage Drop | <=0.15V | ||
Communication | TTL232/8 pin RJ45 | ||
Equalize Charging Voltage | Sealed:14.6V;x2/24V Flooded | ||
Temp/compensation | -30mV/℃/12V(25℃) | ||
Working temperature | -35℃~+55℃ | ||
Storage temperature range | -35℃~+80℃ | ||
Humidity | 10%-90% NC | ||
Enclosure | IP 20 | ||
Altitude | <=3000m | ||
Mounting hole size | Φ5 | ||
Weight | 2.05kg |
Factory Picture of High Quality Solar Controller VS1024N-3024N
Package Picture of High Quality Solar Controller VS1024N-3024N
