1. Structure of Solar Street Light Charging Controller for Home Use with LCD Display Model CM 3024Z
This solar street light charging controller is designed for home use, such as light in the yard. The controller of CM Series is a kind of intelligent and multi-functional solar charging and discharging controller. The products of this series consist of special LCD display which has very convenient operation interface, and all of the controls parameters can be set and adjusted according to different requirement. It is really a good example of solar energy application in daily use for home.
2. Main Features of Solar Street Light Charging Controller
· Vivid graphic symbol on LCD
· ·Easy and explicit operation with button
· ·Automatic identification of system voltage degree
· ·Intelligent charging mode of PWM
· ·Automatic temperature compensation
· ·Available for setting loading work mode
· ·Accumulative function for total Amper-hours during charging and discharging
· ·Reverse polarity protection and undervoltages protection for accumulator
· ·Overload protection and short circuit protection for accumulator
3. Solar Street Light Charging Controller Specification
Model | CM3024Z |
Rated working current | 20A \30A |
Rated working voltage | 12V/24V |
Solar panel voltage | ≤50V |
Floating charge voltage | 13.8V/27.6V |
Undervoltage protection | 10.7V/21.4V |
Undervoltage recovery | 12.5V/25.0V |
No-load loss | ≤30mA |
Circuit voltage drop | ≤170mV |
Charging mode | PWM MODE |
Temperature conpensation | -4mV/Cell/℃ |

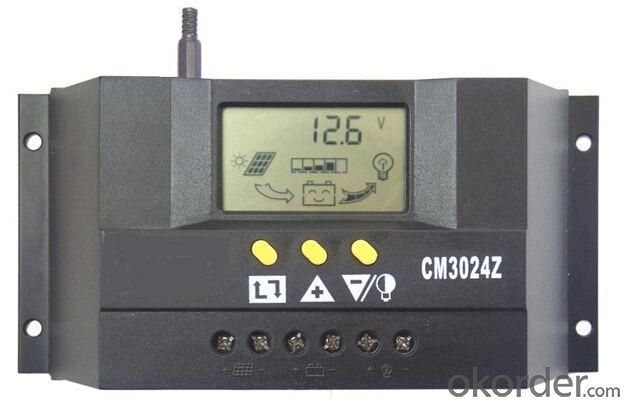

4. Solar Street Light Charging Controller Images
5. FAQ
We have organized several common questions for our clients, which may help you sincerely:
Q1. How to guarantee the quality of the products?
The company presses the ISO9000 quality management system control product quantity strictly, the export production all passes the relevant national company check (CE, ROHS), and get high evaluation of the customer.
Q2. How long can we receive the product after signing Sales Confirmation?
Generally speaking, if there is enough quantity of finished products which can meet the clients’ requirement, we can manage the delivery within three to five working days according to the instruction of the payment terms in the Sales Confirmation; if the products needs some time to get ready, we will arrange the delivery as soon as possible after the manufacture.
