Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:-
Supply Capability:-
Features:
·High efficient Series PWM charging

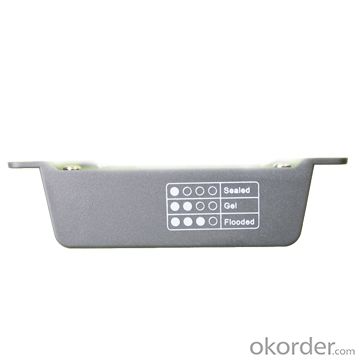

·Battery type option
·LED indicators indicate battery voltage state
·Use MOSFET as electronic switch
·Temperature compensation
·Electronic protection: over charging, over discharging, overload, and short circuit
·Battery reverse polarity protection
Electronic Protections:
·Load overload
·Load short circuit
·Battery reverse polarity
Specification:
Electrical parameters | LS0512 |
Nominal System Voltage | 12VDC |
Rated Battery Current | 5A |
Max. Battery Voltage | 16V |
Charge Circuit Voltage Drop | ≤0.26V |
Discharge Circuit Voltage Drop | ≤0.15V |
Self-consumption | ≤6mA |
Overall dimension | 97 x 66x 25mm |
Terminal | 2.5mm2 |
Net weight | 0.05kg |
Working temperature | -35℃ to +55℃ |
Humidity | 10%-90% NC |
Enclosure | IP30 |
Battery Voltage Parameters (temperature at 25℃) | |||
Battery charging setting | Gel | Sealed | Flooded |
Equalize Charging Voltage | —— | 14.6V | 14.8V |
Boost Charging Voltage | 14.2V | 14.4V | 14.6V |
Float Charging Voltage | 13.8V | 13.8V | 13.8V |
Low Voltage Reconnect Voltage | 12.6V | 12.6V | 12.6V |
Low Voltage Disconnect Voltage | 11.1V | 11.1V | 11.1V |
Equalize Duration | —— | 2 hours | 2 hours |
Boost Duration | 2 hours | 2 hours | 2 hours |
FAQ:
Q1. What is the voltage?
A1. Our 45/60A solar charge controller is 12/24/36/48V auto work.
Q2. What is the difference between MPPT&PWM?
A2. MPPT has higher efficiency, it can track the max power point and won't waste energy.
Q3. What is the efficiency of the MPPT controller?
A3. MPPT>99%, peak conversion efficiency>98%.
Q4. What is the waranty of product?
A4. 12 months.
Q5. What protection does your MPPT controller have?
A5. PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit.
