Product Description

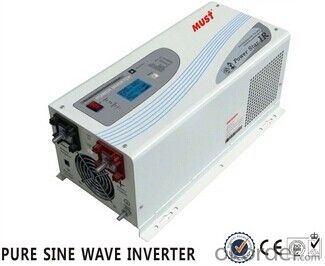

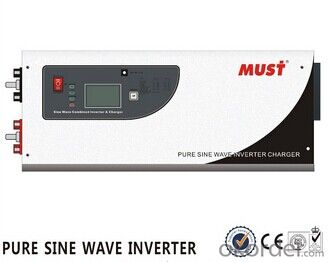

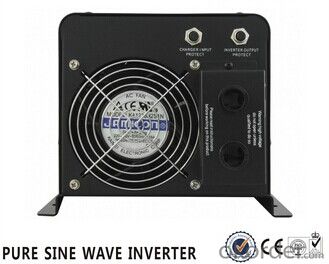

Solar 1000w 1500w 2000w 3000w Pure Sine Wave Inverter 12V 24V 48V to 230V
1.Pure Sine Wave Inverter Features:
1. 1kw-6kw power range,12v / 24v / 48vdc optional,use copper transformer to increase efficiency;
2.165v-260v wide input voltage range ,40-70HZ input frequency;
3.low frequency and pure sine wave which can run inductive loads . main use for home and office: computer, lights, fan,tv, fridge,air-condition .etc;
4. built in 4 steps supper battery charger 30-75A to save charge time.Charger (bulk, absorption, float);
5. with 200cm battery cable;
6. Support generator 1hp/2hp/3hp;
7. Support solar system;
8. Remote control / RS232 , monitor inverter working by computer;
9. CE/ SONCAP certificate;
10. Charge current is adjustable 25%,50%,75%.100%;
11.Hybird solar system , Solar advantage, battery advantage;
NEW FUNCTION :(Solar Priority/Battery Priority Function)
SOLAR HYBIRD INVERTER : Solar Energy , City power , DC to AC can transfer automatically
When battery voltage is low (3 options---10v/10.5v/11v) , it will turn to city power automatically
2. Pure Sine Wave Inverter Specification
| Model | EP3000 Series | 1000 | 2000 | 3000 | 3000 | 4000 | 5000 | 6000 |
| Capacity | W | 1000W | 2000W | 3000W | 3000W | 4000W | 5000W | 6000W |
| Battery | DC Voltage (Optional) | 12V | 24V or 12 | 24V | 48V | 48V | 48V | 48V |
| Recharge current | 35+/-5A | 35+/-5A | 45+/-5A | 35+/-5A | 35+/-5A | 40+/-5A | 50+/-5A | |
| 3 - stage charge | Boost CC → Boost CV → Float | |||||||
| Input | Nominal Voltage | 120VAC or 230VAC | ||||||
| voltage trip range | 90v+-4% to 140v+-4% or 184v/154v +-4% to 253v+-4% | |||||||
| Voltage re engage range | 100v+-4% -135v+-4% or 194v/164v+-4% to 243v+-4% | |||||||
| Max input AC voltage | 150VAC or 270VAC | |||||||
| Frequency | 50Hz or 60Hz(Auto detect) | |||||||
| Current | 25 Amps in maximum | |||||||
| Efficiency | 95% | |||||||
| Output | Voltage | 120V or 230V AC ±5% | ||||||
| Wave form | Pure Sine wave | |||||||
| Frequency | 50/60Hz | |||||||
| voltage range | Depends on battery type | |||||||
| Transfer time | ≤5ms | |||||||
| Protection | Overload | 15 mins for 125%, 60s for 150%, 20s for over 150s | ||||||
| Short circuit protection | Fault after 10 secs | |||||||
| Electric Fans | Thermo -controlling | |||||||
| Static Consumption | < 10 Watts | |||||||
| Surroundings | Temperature, humidity | 0-50 °C ,90%, no condensing | ||||||
| Surge rating (10s) | 3000W | 6000W | 9000W | 9000W | 8000W | 10000W | 12000W | |
| capable of starting electric moto | 1HP | 2HP | 3HP | 3HP | 4HP | 5HP | 6HP | |
| Physical | Mount | Horizontal wall mount | ||||||
| Size CM (H x W x D) | 44.2 x 21.8 x 17.9 | 63.0 x 21.8 x 17.9 | ||||||
| Carton CM (H x W x D) | 58.0x32.0x31.0 | 75.5 x32.0x31.0 | ||||||
| N.W ( KGS) | 19 | 21 | 25 | 25 | 35 | 38 | 40 | |
| G.W (KGS) | 21 | 23 | 27 | 27 | 37 | 40 | 42 | |
| Remark | Specification for reference , subject to change without prior notification | |||||||
| We accept order with special specifications | ||||||||
3. Pure Sine Wave Power inverter Packing:
Power inverter 1000W 2000W 3000W 4000W 5000W 6000W Inverters
4. EP3000 Pure Sine Wave Solar Power Inverter on the Solar System:
