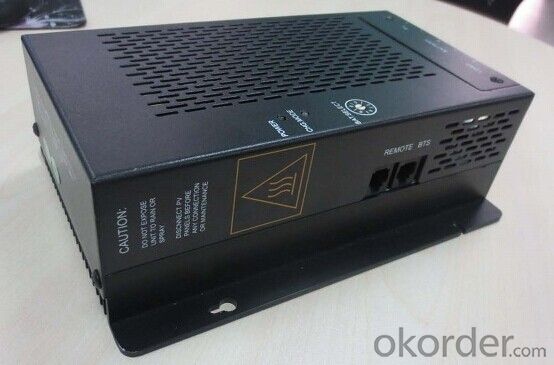

12V 24V 20A mppt china solar charge solar controller
PC1000 series solar controller Features:
1. MPPT Solar charge controller 20A,30A,40A
2.An optional battery temperature sensor ensures precise battery charging
3.Built-in MPPT tracker is enquipped in the power inverter to optimize the power transformation.
4.Reversed current protection for preventing equipment damage
5.Automatic battery temperature compensation for long -term reliability
6.Three stage charge control system (bulk,absorption,and float mode) with temperature compensation
7.Autamatic overload protection in both active and passive modes
8. MPPT efficiency max 90%
| Model | PC10-2005A | PC10-3005A | PC16-4005A | |
| Default Battery System Voltage | 12V/24V DC (adjustable) | |||
| CONTROLLER INPUT | PV Open Circuit Voltage Range | 16V~30V for 12V battery system / 32V~55V for 24V battery system | ||
| Max PV Input Power(12V) | 300W | 450W | 600W | |
| Max PV Input Power(24V) | 600W | 900W | 1200W | |
| BATTERY | Float Charging Voltage | 13.4V(default)/26.8V(default) | ||
| Bulk Charging Voltage | 14.6V(default)/28.6V(default) | |||
| Equalization Charging Voltage | 14.0V(default)/28.0V(default) | |||
| Battery Temperature Sensor | BTS(optional) remote batter temperature sensor for increased charging precision | |||
| DC OUTPUT | Output Voltage | 11.0~14.3VDC /22.0~28.6VDC | ||
| Max Charging Current | 40A | |||
| Max Output Current | 15A(for DC load) | |||
| Cutoff for Overcharge | 14.8V/29.6V | |||
| Overcharge Voltage Recovering | 13.6V/27.2V | |||
| Cutoff for Low Voltage | 10.5~12.5VDC/21.0~25.0VDC | |||
| Low Voltage Recovery | 12.0~14.0VDC/24.0~28.0VDC | |||
| GENERAL SPECIFICATION | Charge Mode | MPPT,constant current-constant voltage | ||
| Radiating Mode | Automatic cooling | |||
| Working Mode | Four stage: Absorption CC, Absorption CV, Float CC, Float CV | |||
| DISPLAY & PROTECTION | LED indication | Systematic operation, LV indication, LV protection, over charge protection, loads protection, short circuit protection | ||
| Alarm Protections | 2.0*inom>5s;1.5*inom>20s;1.25*inom temperature | |||
| Load control mode | 1.Low Voltage Reconnect(LVR):Adjustable | |||
| 2.Low Voltage Disconnect(LVD):Automatic | ||||
| 3.Reconnection:Includes waming flash before | ||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | ||
| W*H* D(mm) | 260*460*185mm | |||
| G.W(kg) | 2.2kg | 2.4kg | 2.6kg | |
| OTHER | Environmental Rating/IP Grade | Indoor/IP21 | ||
| Operation Temperature Range | 0~40°C(for full power)/40~60°C(for derating) | |||
| Ambient humidity | 0~90% relative humidity(non-condensing) | |||
| Altitude | ≤5000m | |||
| Terminal size (fine/single wire) | #8AWG | |||
