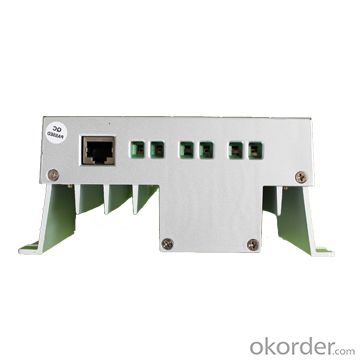

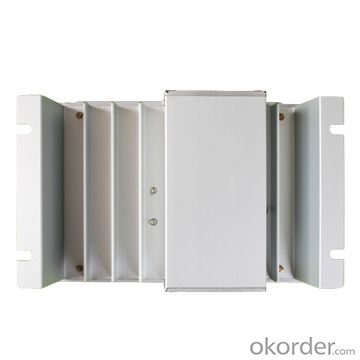

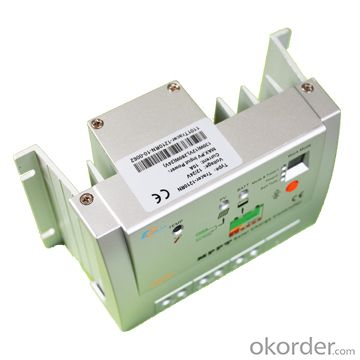

Go Power Solar Charge Controllers MPPT Solar Charge Controller 10A 12/24V Tracer-1215RN

Product Description:

All of our grid-tie inverters are UL listed and code-compliant. We do not stock refurbished grid-tie inverters.

Because grid-tie inverters have stricter requirements than off grid inverters, refurbished grid-tie inverters may not be code-compliant.

Check with your local electrician or building department before investing in a refurbished grid-tie inverter.

Specifications

MPPT controller
10A,12V/24V
Max PV input power 130W in 12V system, 260W in 24V system
ON/OFF, Dusk to dawn, 1-15h timer

Features:

· MPPT technology

· Peak conversion efficiency of  97 %

· High Tracking efficiency of  99%

· Several seconds tracking speed

· Very fast Sweeping of the entire I-V curve

· 4- Stage charge with PWM output

· Excellent thermal design and nature air cooling

· Full power output in ambient temperatures up to 45°C

· Temperature compensation function

· Sealed, Gel, Flooded battery type optional

· Diversified load control: Manual, Dusk to Dawn, dual timer, TEST

· RJ45 interface with optional remote meter

· Standard 2 years warranty

· CE certificate

Electronic Protections:

·PV short circuit  protection
·PV reverse polarity protection
·PV overvoltage alarm protection
·PV over current protection
·Battery overcharge protection
·Battery over discharge protection
·Battery reverse polarity protection
·Load short circuit protection
·Load overload protection

Specification:
