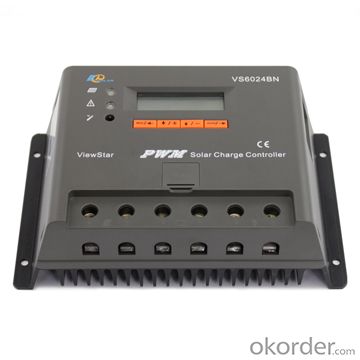

Electric Fence Solar Powered Controllers - LCD/LED High Quality PWM Solar Street Light Charge Controller/Regulator with CE ROHS, 60A, 12V/24V, VS6024BN

Loading Port:Tianjin

Payment Terms:TT or LC

Min Order Qty:-

Supply Capability:-

Product Description:

Descriptions:

A solar inverter, or PV inverter, or Solar converter, converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network. It is a critical BOS–component in a photovoltaic system, allowing the use of ordinary AC-powered equipment. Solar inverters have special functions adapted for use with photovoltaic arrays, including maximum power point tracking and anti-islanding protection.

Features:

·Excellent EMC design
·32 bit MCU with high speed
·High efficient Series PWM charging
·Four battery type options: Sealed, Gel, Flooded, and USER
·Intelligent lighting and timer control for solar lighting system
·12 bit A/D high-precision sampling to ensure accuracy
·Use MOSFET as electronic switch
·Full control parameters setting and modification, diversified load control mode
·Humanized design of browser interface, undertake every operating conveniently
·Temperature compensation
·Adopt graphics dot-matrix LCD screen and HMI  (human-machine interface) with 4 buttons,integrated menu displaying and operation


Electronic Protections:

·PV short circuit  protection
·PV reverse polarity protection
·Battery overcharge protection
·Battery over discharge protection
·Battery reverse polarity protection
·Load overload protection
·Load short circuit protection

·Overheating protection


Specification:

Model

VS1024BN

VS2024BN

VS3024BN

VS4524BN

VS6024BN

Nominal system voltage

12V/24V auto work

Rated battery current

10A

20A

30A

45A

60A

Rated load current

10A

20A

30A

45A

60A

Max. battery voltage

32V

Equalize charging voltage

Sealed: 14.6V,  Flooded: 14.8V,  User-defined: 9~17V

Boost charging voltage

Gel: 14.2V,  Sealed: 14.6V,  Flooded: 14.8V, User-defined: 9~17V

Float charging voltage

Gel /Sealed /Flooded: 13.8V,  User-defined: 9~17V

Low voltage reconnect voltage

Gel /Sealed /Flooded: 12.6V,  User-defined: 9~17V

Low voltage disconnect voltage

Gel /Sealed /Flooded: 11.1V, User-defined: 9~17V

Self-consumption

≤15mA(12V); ≤10mA(24V); ≤9mA(36V); ≤8mA(48V)

Grounding

Common negative

Temp. compensation

-3mV/°C/2V

Relative humidity

10%~90% Non-condensation

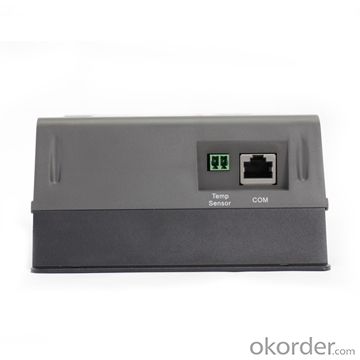

Communication

RS485 / RJ45 interface

LCD temperature

-20°C ~ +70°C

Working temperature

-25°C ~ +55°C

Humidity

≤95% N.C.

Enclosure

IP30

Overall dimension

162x85x40mm

162x100x50mm

200x103x58mm

201x109x59mm

205x129x67mm

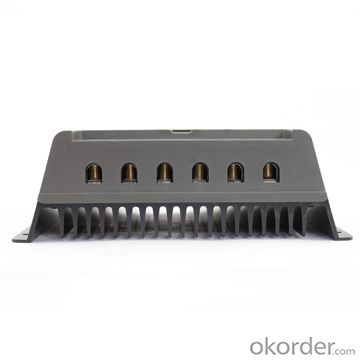

Terminals

4mm2

10mm2

16mm2

35mm2

35mm2

Net weight

0.2kg

0.4kg

0.7kg

0.9kg

1.3kg
