1. Structure of Lawn Light Solar Charge Controller Model CMB03

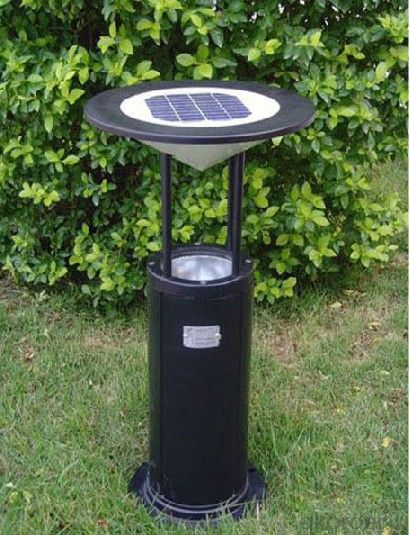

This solar charge controller designed for solar lawn lights, solar garden lights, mini solar street light, mini solar advertising light box and so on. The box of the controller is compact sealed with silicon. They have the function of temperature compensation during charging and Sensor Control (optional), fit for 24W /12V or 36W /12V solar panels.
2. Main Features of Lawn Light Solar Charge Controller Model CMB03
· ·Overcharging and Over discharging protection
· · Prevent the reverse current from the battery to the solar panel at night time.
· ·Automatically open the loads after sunset according to the light intensity. (Optional)
· ·Automatically close the loads:
A: battery voltage is in full condition, automatically close the loads after sunrise.
B: the voltage of battery is low; automatically close the loads in advance.

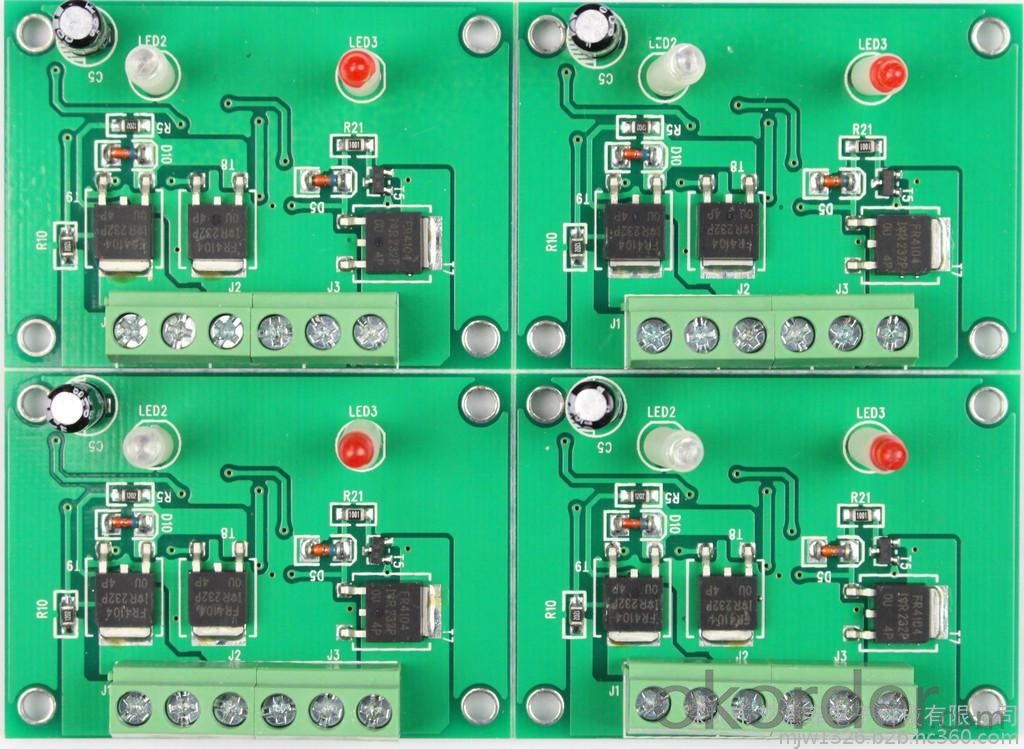

3. Lawn Light Solar Charge Controller Model CMB03 Images
4. Lawn Light Solar Charge Controller Model CMB03 Specification
Rated Voltage | 12V |
Rated Charge Current | 3A |
Rated Discharge Current | 3Ａ |
HVD (High Voltage Disconnection) | 14.4V |
Temperature Compensation | -3mV/℃/cell |
Size | 55×36×20mm |
LVD (Low Voltage Disconnection) | 10.5V |
LVR (Low Voltage Reconnection) | 12.0V |
Light Controller Mode | visibility 20m |
Temperature | －10- +40℃ |
Relative Humidity | ≦90% |
Net weight | 33g |
