1. Features :
*Used GPRS communicate,support 850/900/1800/1900MHz four bands.
*Collection the data of single lamp, protocol conversion, data uploaded to the monitoring system, sending commands to the single lamp controller.
*Combined GPRS communication technology, remote monitoring anytime and anywhere.
*Used zigBee wireless mesh networking technology, support unicast and broadcast mode.
*The standard of industrial products, industrial grade aluminum alloy shell, anti-interference, durable, easy to install.
*The intelligent concentrator routing algorithm
*Support SMS control and setting
*Support ASE128 encryption algorithm
*Support remote online upgrade
*Excellent electromagnetic compatibility, system can work accurately under high voltage pulse, strong magnetic and electrostatic, lightning surge and range temperature variation.
*IP65 waterproof grade
2. Technical parameters
Parameter name | GPRS Concentrator parameter value |
Mode | Depower-DTU |
Power supply | 9~30V |
Operating bands | GPRS |
modulation mode | TCP/IP |
maximum transmit power | EGSM900/GSM850 Class4(2W) |
GSM1800/GSM1900 Class1(1W) | 14≤Vmp≤35(12V), |
Reception sensitivity | <-107dBm |
Wireless | 50Ω/SMA(Female head) |
line-of-sight transmission | Global |
Working temp | -30℃ ~ +75℃ |
Size(exclude antenna) | 113(mm) × 85(mm) × 43(mm) |
Weight | 0.92kg |

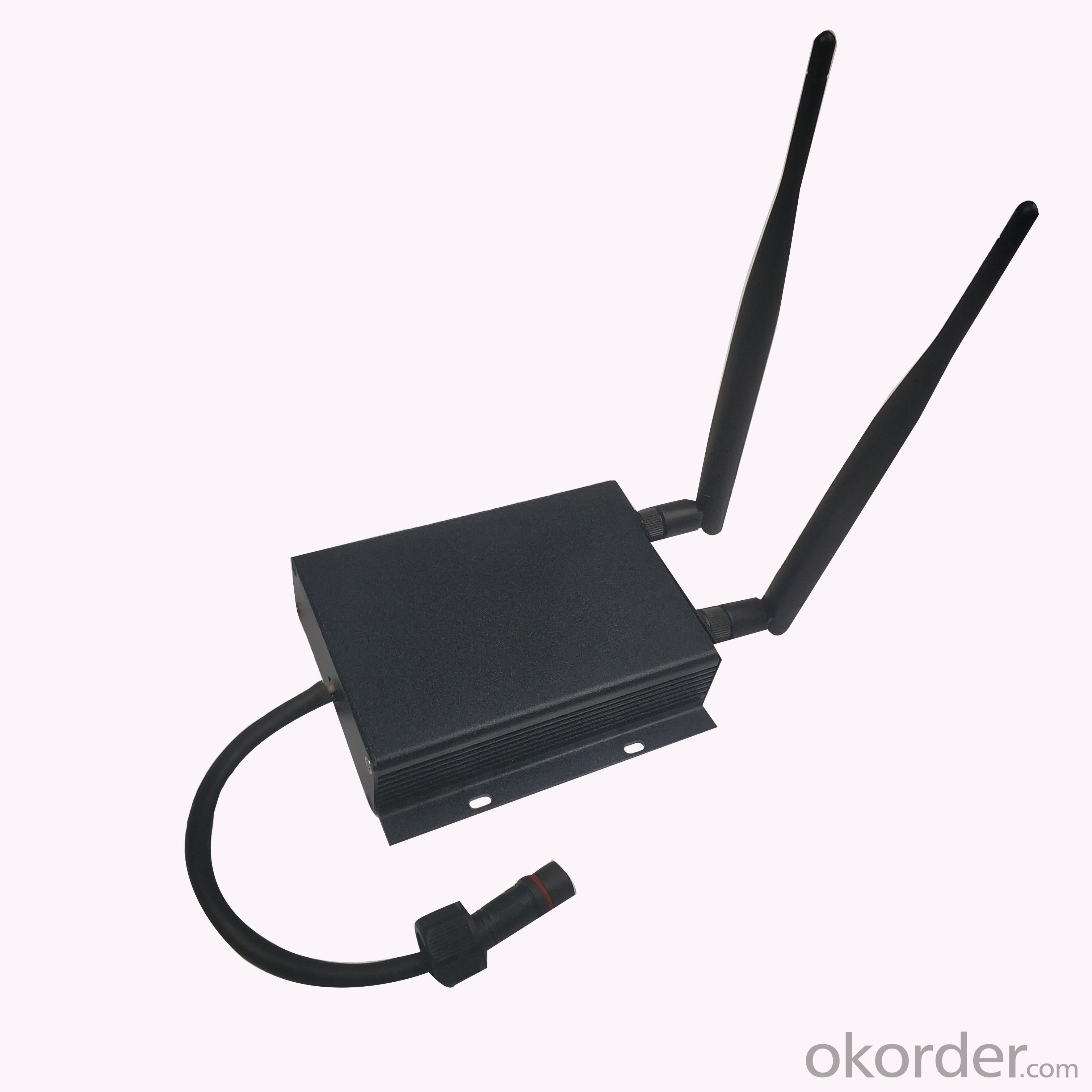

3. Detailed image
4. FAQ
Q:DO YOU HAVE ANY CERTIFICATION FOR YOUR PRODUCTS？
A:We have ISO9001：2015，CE、RoHS certifications for all of our products.
Q:DO YOU HAVE MOQ FOR PLACE ORDER？
A:Low MOQ，1pe for sample checking is availabl
