Introduction of High Quality Solar Controller Tracer-4210RN

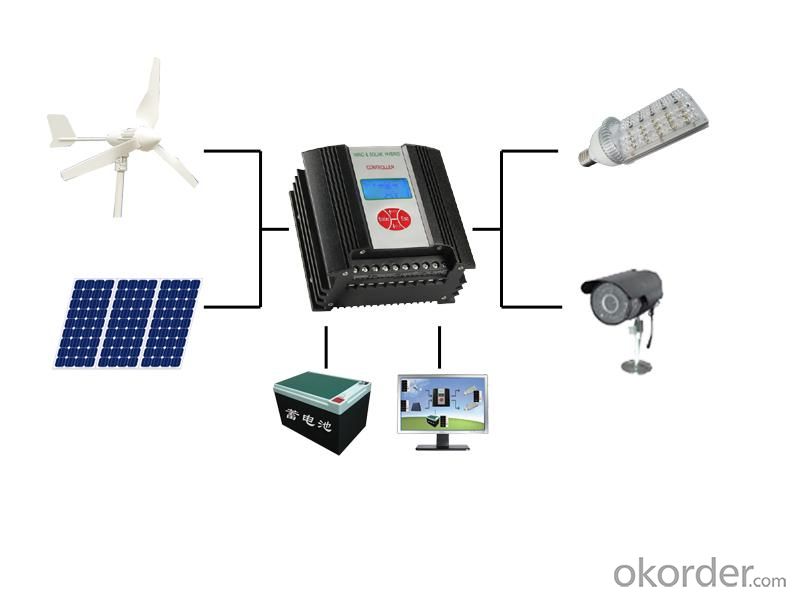

Tracer-4210RN solar controller is our new generation controller for off-grid solar system, such as street light, solar home system or small power station etc.Tracer-4210RN has LCD display, reliable battery charging, full electronic protection, programmable parameters and other features and powerful function.
Our factory is highly recognized by its business partners and clients all over the world and has obtained rapid development under the spirit of win-win .With Solar Controller Tracer-4210RN,We will carry on the mutual beneficial,innovative and revolutionary trading structure as we did before,create value for our employees,share holders and clients and benefit the whole society in our future development.Please contact us ,if you have interest in Solar Controller Tracer-4210RN,don’t hesitate!
Features of High Quality Solar Controller Tracer-4210RN
·MPPT technology
·Peak conversion efficiency of 97%
·High Tracking efficiency of 99%
·Several seconds tracking speed
·4-Stage charge with PWM output
·Nature convection cooling
·Full power output in ambient temperature up to 45 ℃
·Temperature compensation
·Sealed, Gel and Flooded battery option
·Widely used, automatically recognize day/night
·Diversified load control
·RJ45 interface &optional meter
·2 years warranty
·CE certificate
Electronic Protections of High Quality Solar Controller Tracer-4210RN
·Overheating
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV reverse polarity
·Battery reverse polarity
Data Sheet of High Quality Solar Controller Tracer-4210RN | |
Model | Tracer-4210RN |
Rated system voltage | 12/24V auto work |
Rated battery current | 40A |
Rated load current | 20A |
Max.battery voltage | 32V |
Max.PV open circuit voltage | 100VDC |
Max.PV input power | 12V 520W;24V 10400W |
Self-consumption | <10mA(24V) |
Charge Circuit Voltage | <=0.26V |
Discharge Circuit Voltage Drop | <=0.15V |
Communication | TTL232/8 pin RJ45 |
Temp/compensation | -30mV/℃/12V(25℃) |
Working temperature | -35℃~+55℃ |
Storage temperature range | -35℃~+80℃ |
Humidity | 10%-90% NC |
Enclosure | IP 30 |
Altitude | <=3000m |
Dimension | 242mm *169 mm *91mm |
Mounting holes | 180mm *160 mm |
Mounting hole size | Φ5 |
Weight | 2.05kg |
Factory Picture of High Quality Solar Controller Tracer-4210RN
Package Picture of High Quality Solar Controller Tracer-4210RN
