High efficiency 12V 10A MPPT Solar Charge Controller for Solar Panel Street light

Product Description:

1. Features :
   1). Lighting control,times control,dimming range , motion sensor  and so on intelligent  drive LED light.
   2). High tracking efficiency up to 99.9%, promote system efficiency and decrease  cost.
   3). Peak conversion efficiency of 98.4%
   4). Automatic PV power limit function
   5). Multi-function LCD displays system information intuitively
   6). User programmable for battery types, load control etc.
   7). 3-Stage stage MPPT charging, boost and float charging based on temperature compensation.
   8).Fully programmable function via remote meter, PC software and Mobile APP.
   9). Waterproof IP68 garde without any button.

2. Technical Parameter:




3. Model	MCC10
   Battery Type	Lead-acid or lithium battery
   Battery Voltage(V)	12
   Max. Charging Current(A)	10
   Low voltage disconnect(V)	10.8
   Battery Input Voltage Range(V)	8~15
   MPPT charge (V)@25℃	≤14.4(12V)
   Boost charge (V)@25℃	≤14.4(12V)
   Float charge(V)@25℃	13.8(12V)
   Deep discharge protection, Cut-off  voltage(V)@25℃	10.8(12V)
   Reconnect Voltage(V)@25℃	11.8(12V)
   Battery Temperature Compensation	-4mV/℃/2V
   Panel Voltage(V)	≤35
   PV Voltage@ Lighting off(V)	≤5
   Max. panel power(W)	130
   MPPT Tracking  Range(V)	14≤Vp≤125(12V)
   Output Current Range(mA)	50~4000
   Waterproof  Grade	IP68(1.5m,72h)
   Working Environment Temperature(ºC)	-35ºC ~+60 ºC

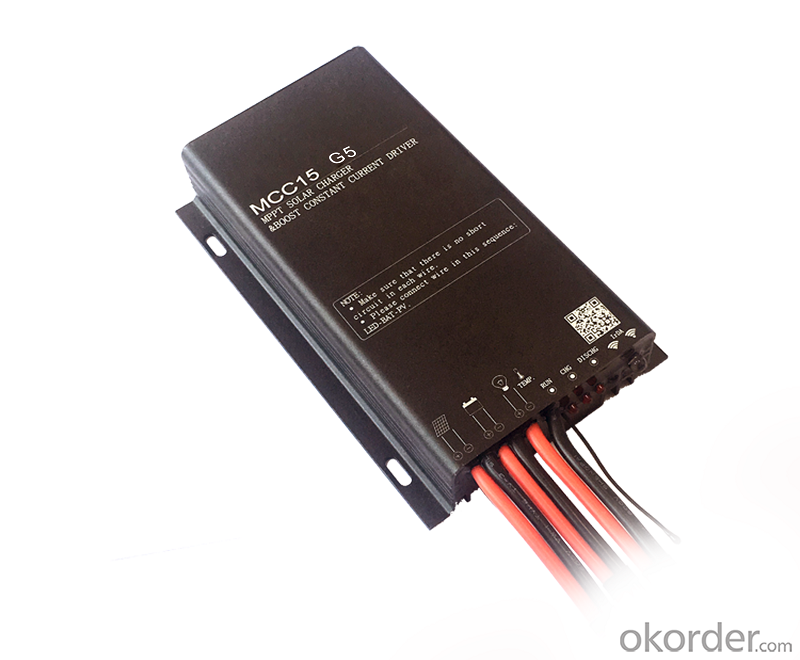

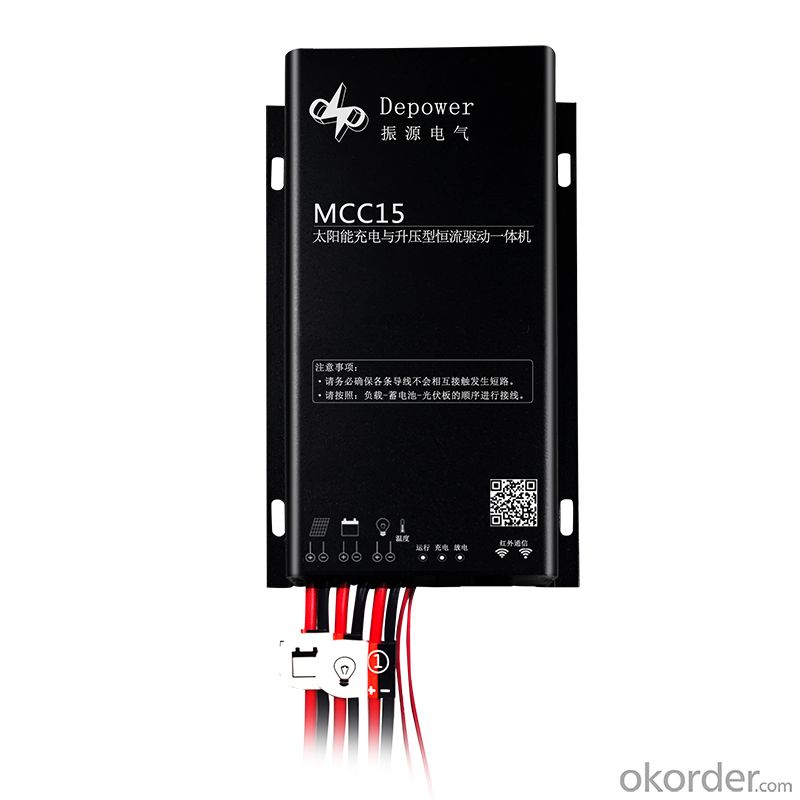

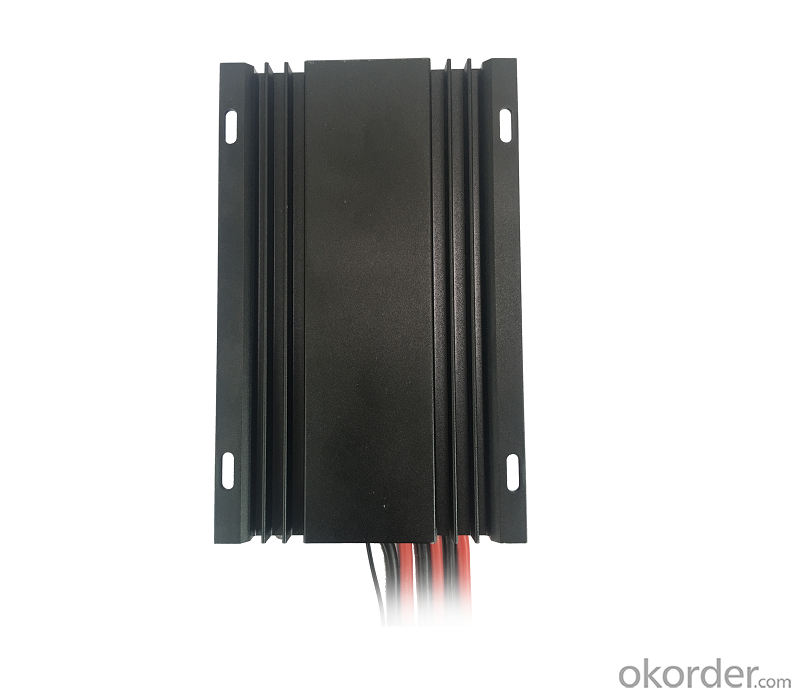

3. Image

4. FAQ

Q:DO YOU HAVE ANY CERTIFICATION FOR YOUR PRODUCTS？

A:We have ISO9001：2015，CE、RoHS certifications for all of our products.

Q:DO YOU HAVE MOQ FOR PLACE ORDER？

A:Low MOQ，1pe for sample checking is available
