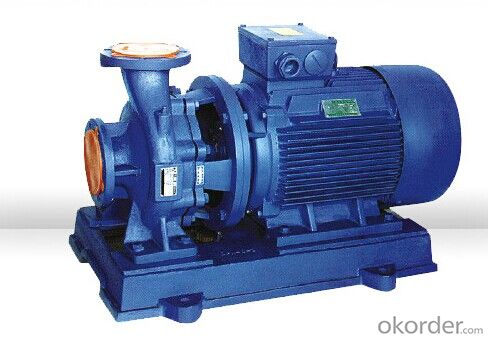

ZB Series Self-Priming Centrifugal Water Pumps

Product Description:

1. Production Introduction for ZB Series Self-Priming Centrifugal Water Pumps:
WZB self-priming pump is divided into single phase and three-phase asynchronous types with built-in protection device. The pump is divided into centrifugal impeller and worm casing structures with self-priming function. Single-face mechanic sealing is mounted between pump and motor."0" shaped oil-proof rubber seating ring is used at each stationary port as static sealing.

2. Application for ZB Series Self-Priming Centrifugal Water Pumps
This series pump is a new type of ideal economical pump, widely used in pumping water, increasing water pressure, garden irrigation, water supply for vegetable green houses, industrial mining enterprises and aquatic breeding fields etc.

3. Work Conditions for ZB Series Self-Priming Centrifugal Water Pumps
The pump can work properly and continuously under following operational conditions:
1.Medium is not corrosive.Sand contents should be max.0.10% by volume and granular size should be max.0.20mm.
2.Medium temperature shouldn’t be over 40°C and PH should be 6.5-8.5.
3.Power frequency should be 50Hz,single phase voltage 220V, three-phase voltage 380V,and voltage fluctuation should be 0.9-1.1 times than the rated.

4. FAQ for ZB Series Self-Priming Centrifugal Water Pumps

1. Are CNBM pumps available in DIY stores?

Yes, currently, we’re available for DIY stores all over the world.

2. Where do I have to send pumps for service?

You must send them to the CNBM PUMP Service Point or, after contacting Customer Care, to the CNBM PUMP service center in China.

3. Are your pumps acid-proofed?

To choose the right pumps for chemical applications, we do need further details on hydraulic operations as well as on the type, concentration and temperature of the liquid.
