Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:1000M m
Supply Capability:80000M per month m/month

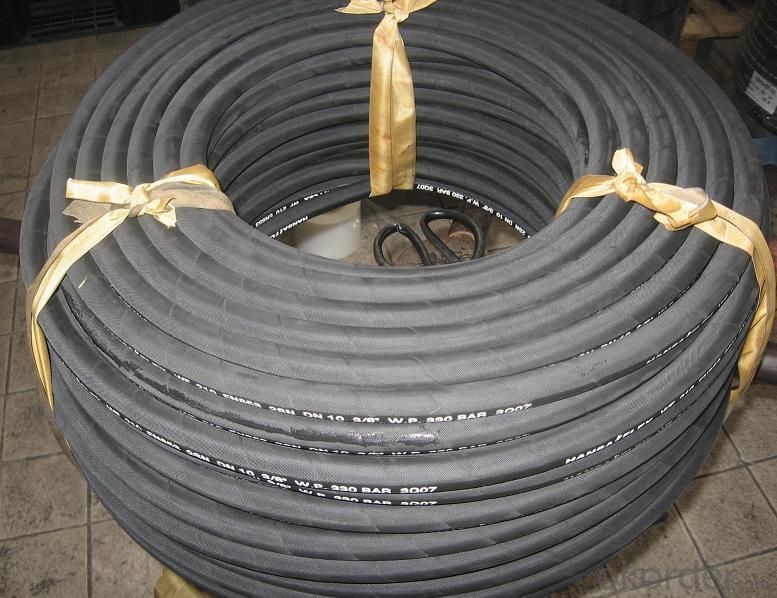

Quick Details of Three High-pressure Steel Braided Hose
Place of Origin: | China (Mainland) | SIZE： | DN6-DN102 |
Specifications of Three High-pressure Steel Braided Hose
Executive Standard:GB/T3683-92 MT98-84
CONSTRUCTION:This hose consists of an inner tube of oil synthetic rubber,three wire braid reinforcements,and an oil and weather re-sistant synthetic rubber cover.
APPLICATIONS:Hose range suitable to carry hydraulic fluids such as gly-col,mineral oils,fuels,lubricants,emulsion,hydrocar-bons etc.
WORKING TEMPERATURE:-40°C-+100°C
The Technical Parameters of Three High-pressure Steel Braided Hose
Hose size | Inside Diameter mm | Reinforcement Diameter (mm) | Outside Diameter (mm) | Work Pressure (MPa) | Proof Pressure (MPa) | Burst Pressure(Pb) | |||
Mpa | Psi | MPa | Psi | Mpa | Psi | ||||
3-5-72 | 5±0.5 | 13.2±0.6 | 17±0.8 | 72 | 10433 | 108 | 15649 | 180 | 26082 |
3-6-68 | 6±0.5 | 15.0±0.6 | 19±1.0 | 68 | 9583 | 102 | 14780 | 170 | 24633 |
3-8-54 | 8±0.5 | 17.5±0.6 | 22±1.0 | 54 | 7825 | 81 | 11737 | 120 | 17388 |
3-10-44 | 10±0.5 | 19.5±0.6 | 24±1.0 | 44 | 6376 | 66 | 9563 | 110 | 15939 |
3-13-32 | 13±0.5 | 23.5±0.8 | 28±1.2 | 32 | 4637 | 48 | 6955 | 96 | 13910 |
3-16-23 | 16±0.5 | 26.5±0.8 | 31±1.2 | 23 | 3333 | 34.5 | 4999 | 69 | 9998 |
3-19-20 | 19±0.5 | 29.5±0.8 | 34±1.2 | 20 | 2898 | 30 | 4347 | 60 | 8694 |
3-22-18 | 22±0.5 | 32.5±0.8 | 31±1.2 | 18 | 2608 | 27 | 3912 | 54 | 7825 |
3-25-16 | 25±0.5 | 36.0±0.8 | 41±1.0 | 16 | 2318 | 24 | 3478 | 48 | 6955 |
3-32-13 | 32±0.5 | 43.0±0.8 | 48±1.2 | 13 | 1884 | 19.5 | 2826 | 39 | 5651 |
3-38-12 | 38±0.7 | 49.0±0.8 | 54±1.5 | 12 | 1789 | 18 | 2608 | 36 | 5216 |
3-51-10 | 51±1 | 62.0±0.8 | 67±1.5 | 10 | 1449 | 15 | 2174 | 30 | 4347 |
3-64-6 | 64±1 | 75.0±0.8 | 80±1.5 | 6 | 895 | 9 | 1304 | 18 | 2608 |
3-76-5 | 76±1 | 88.0±0.8 | 92±1.5 | 5 | 725 | 7.5 | 1087 | 15 | 2174 |
3-89-4 | 89±1 | 101.0±0.8 | 107±1.5 | 4 | 580 | 6 | 895 | 12 | 1789 |
3-102-3.5 | 102±1 | 114.0±0.8 | 120±1.5 | 3.5 | 507 | 5.25 | 761 | 10.5 | 1521 |
3-127-3 | 127±1 | 139±1 | 145±1.5 | 3 | 435 | 4.5 | 652 | 9 | 1304 |
Packaging & Delivery

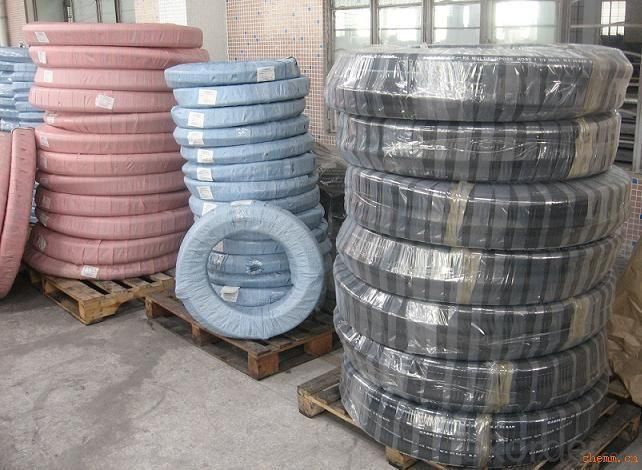

Packaging Detail: | Package: plastic films, then wrapped with fabrics |
Delivery Detail: | According to the Quantity |
