Loading Port:Qingdao
Payment Terms:TT or LC
Min Order Qty:100 kg
Supply Capability:10000 kg/month
| Place of Origin: | China (Mainland) | Brand Name: | Model Number: | Thermal Insulation Loose Ceramic Fiber Bulk | |
| Application: | raw material | Grade: | COM (Common) | Working Temperature: | 950 ℃ |
| Fiber Diameter: | 3-5 μm | Thermal Conductivity: | 0.6 w/m.k | Shrinkage (1800℉, 3h): | -3% |
| density: | 2.73g/cm3 | slag content (diameter>=0.212mm): | <=22%< span=""> | chemical composition: | Al2O3+SiO2 (%)>=97% |
| color: | pure white | packing: | woven bags | certificate: | ISO 9001, CE, REACH |
| Packaging Details: | woven bags |
| Delivery Detail: | within 15 days after received the deposit |
Characteristics
*Good springiness for fiber
*Excellent strength and resistance to blowing
*Excellent chemical stability, resistance to erosion
*Low thermal conductivity
*Low thermal shrinkage
*Excellent sound absorption
Typical Applications
*Filling insulation and joint sealing
*Back-up lining for industrial furnaces
*Fireproof materials for construction
*High temperature materials for filtration
*Raw materials for further producing, such as modules

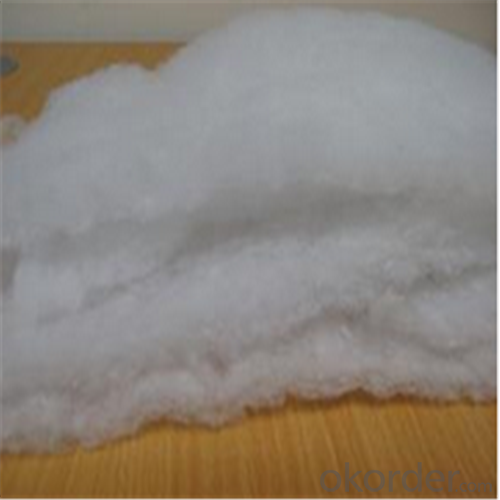

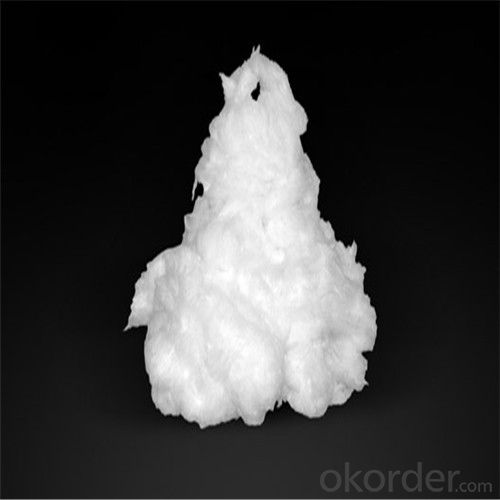

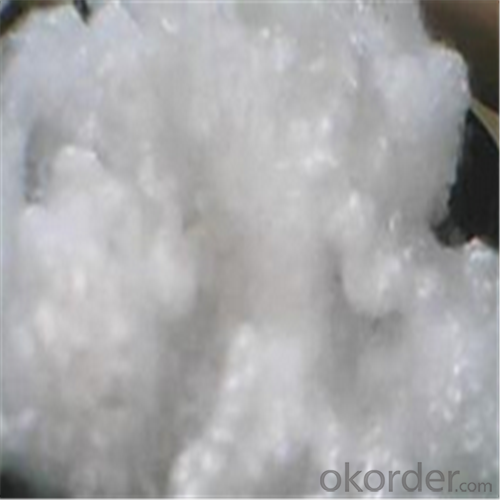

Product Description forInsulation Ceramic Fiber Spun Bulk
Ceramic chopped fiber bulk is made by chopping the ceramic fiber spun bulk, it is an ideal material for making ceramic fiber board and vacuum formed ceramic fiber shapes.
Characteristics:
Low heat capacity and low thermal conductivity;
Excellent chemical stability;
Excellent thermal stability, resistance to pulverization at high temperature;
With no binders or corrosive substances;
Excellent sound absorption
Typical Application:
Raw material for fiber blanket, board products;
Raw material for fiber textile products;
Fillings for wall lining gap in high temperature furnace, heating device;
Raw material wet processed products;
Fiber spraying;
Castables;
Raw material for coatings;
Insulation fillings for corner and complex space
Technical data for Ceramic fiber Bulk
Properties | Unit | 1260 Bulk | 1425 Bulk | 1500 Bulk | 1600 Bulk |
Classification Temperature | °C | 1260 | 1425 | 1500 | 1600 |
Room Temperature Properties(23°C/Relative Humidity 50%) | |||||
Color | White | White | Green | White | |
Density | g/cm³ | 2.70 | 2.70 | 2.70 | 3.2 |
Melting Point | °C | 1760 | 1760 | 1760 | - |
Average Diameter for Fiber | μm | 2.8 | 2.8 | 2.8 | 3.1 |
Chemical Compositions | |||||
Al2O3 | % | 44-48 | 34-36 | 43 | 72 |
SiO2 | % | 52-56 | 48-50 | 54 | 28 |
ZrO2 | % | - | 15-17 | - | - |
Cr2O3 | % | - | - | 3 | - |
FAQ:
1. Which products do you have?
We have all kinds of refractory brick, castable, mortar, cement, ceramic fiber products, etc.
Or you could browse our products to choose what you need.
2. Can you give me a general idea of the specification and technical data of your products?
Yes, catalog is on your request.
3. Can you give me a brief introduction of the application of your products?
We are mainly specializing in the refractory materials in iron and steel, cement, glass, ceramics, petrochemical, electric power Industry, etc.
4. If I need your offer, what information do you need?
In order to choose suitable products, it will be appreciated to provide us the information, such us specification, technical data, order quantity, products application etc.
If any question, please contact us freely.
