Prime Quality Electrolytic Tinplate and TFS for Metal Package of Chemical or Industrial Useage

Product Description:

1.Structure of Prime Quality Electrolytic Tinplate and TFS for Metal Package of Chemical or Industrial Useage Description

Tin Free Steel (TFS) is thin black plate with two coats; one of metal chrome film and the other of chromium oxide. TFS is ideal for the manufacturing of crowns, container ends & shallow drawn cans etc. TFS is also known as Chromium coated steel.

The product complies with ASTM A-657 Specification and is manufactured with low current density (TFS-III) and is supplied in coils （up to 12 metric tons）or sheets.

2.Main Features of the Prime Quality Electrolytic Tinplate and TFS for Metal Package of Chemical or Industrial Useage

Appearance – Tinplate is characterized by its beautiful metallic luster. Products with various kinds of surface roughness are produced by selecting the surface finish of the substrate steel sheet.

Paintability and printability – Tinplates have excellent paintability and printability. Printing is beautifully finished using various lacquers and inks.

Formability and strength – Tinplates have got very good formability and strength. By selecting a proper temper grade, appropriate formability is obtained for different applications as well as the required strength after forming.

Corrosion resistance – Tinplate has got good corrosion resistance. By selecting a proper coating weight, appropriate corrosion resistance is obtained against container contents. Coated items should meet 24 hour 5 % salt spray requirement.

Solderability and weldability – Tinplates can be joined both by soldering or welding. These properties of tinplate are used for making various types of cans.

Hygienic – Tin coating provides good and non toxic barrier properties to protect food products from impurities, bacteria, moisture, light and odours.

Safe – Tinplate being low weight and high strength makes food cans easy to ship and transport.

Eco friendly – Tinplate offers 100 % recyclability.

Tin is not good for low temperature applications since it changes structure and loses adhesion when exposed to temperatures below – 40 deg C.

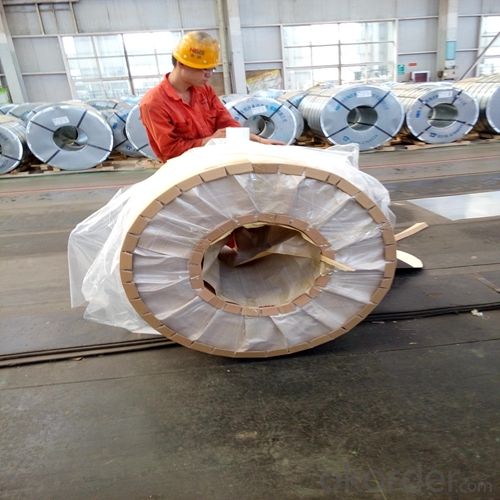

3.Prime Quality Electrolytic Tinplate and TFS for Metal Package of Chemical or Industrial Useage Images

4.Prime Quality Electrolytic Tinplate and TFS for Metal Package of Chemical or Industrial Useage Specification

Specification of :

Standard: ISO 11949 -1995, GB/T2520-2000,JIS G3303,ASTM A623, BS EN 10202

Material: MR,SPCC

Thickness：0.15mm - 0.50mm

Width: 600mm -1150mm

Temper: T1-T5

Annealing: BA & CA

Coil Inner Diameter: 508mm

Weight: 6-10 tons/coil 1~1.7 tons/sheets bundle

Passivation:311

Oil: DOS

Surface: Finish,bright,stone,matte,silver

5.FAQ of Prime Quality Electrolytic Tinplate and TFS for Metal Package of Chemical or Industrial Useage

- How are the tinplates specified?

  The tinplates are specified as per the steel base, extent of tempering, the coating weight, annealing method and the surface finish.

- How many types there are for base steels?

  The base steels are of three types: Type MR, L, D
