PP Woven Geotextile 20KN for Road Consturction Project

Loading Port:Qingdao

Payment Terms:TT or LC

Min Order Qty:1000 g/m²

Supply Capability:100000 g/m²/month

Product Description:

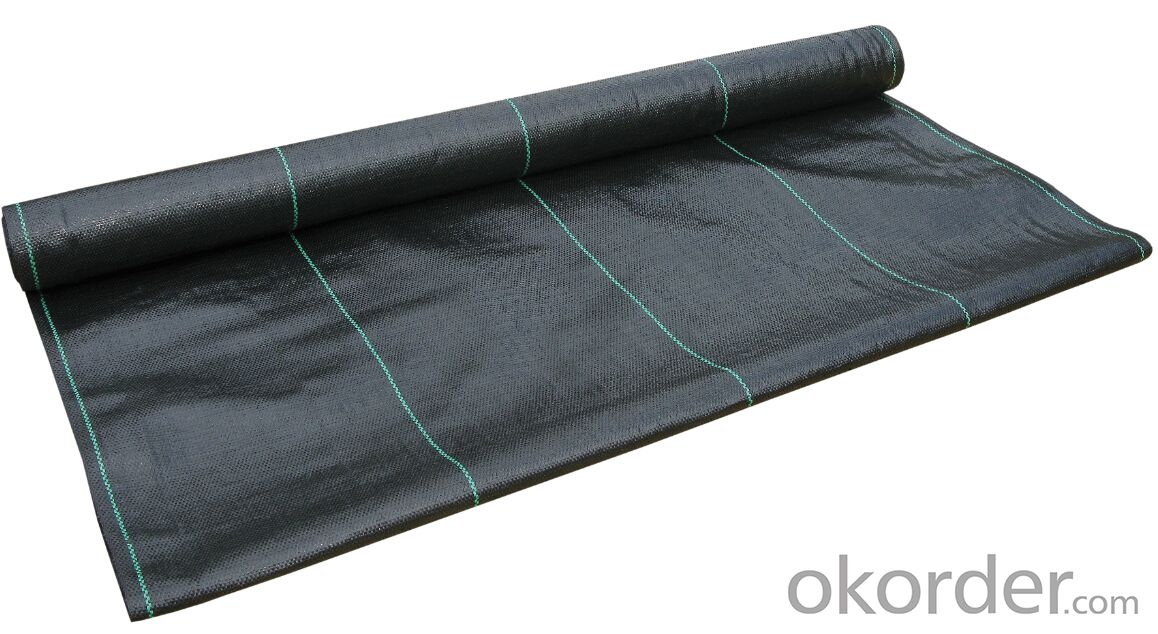

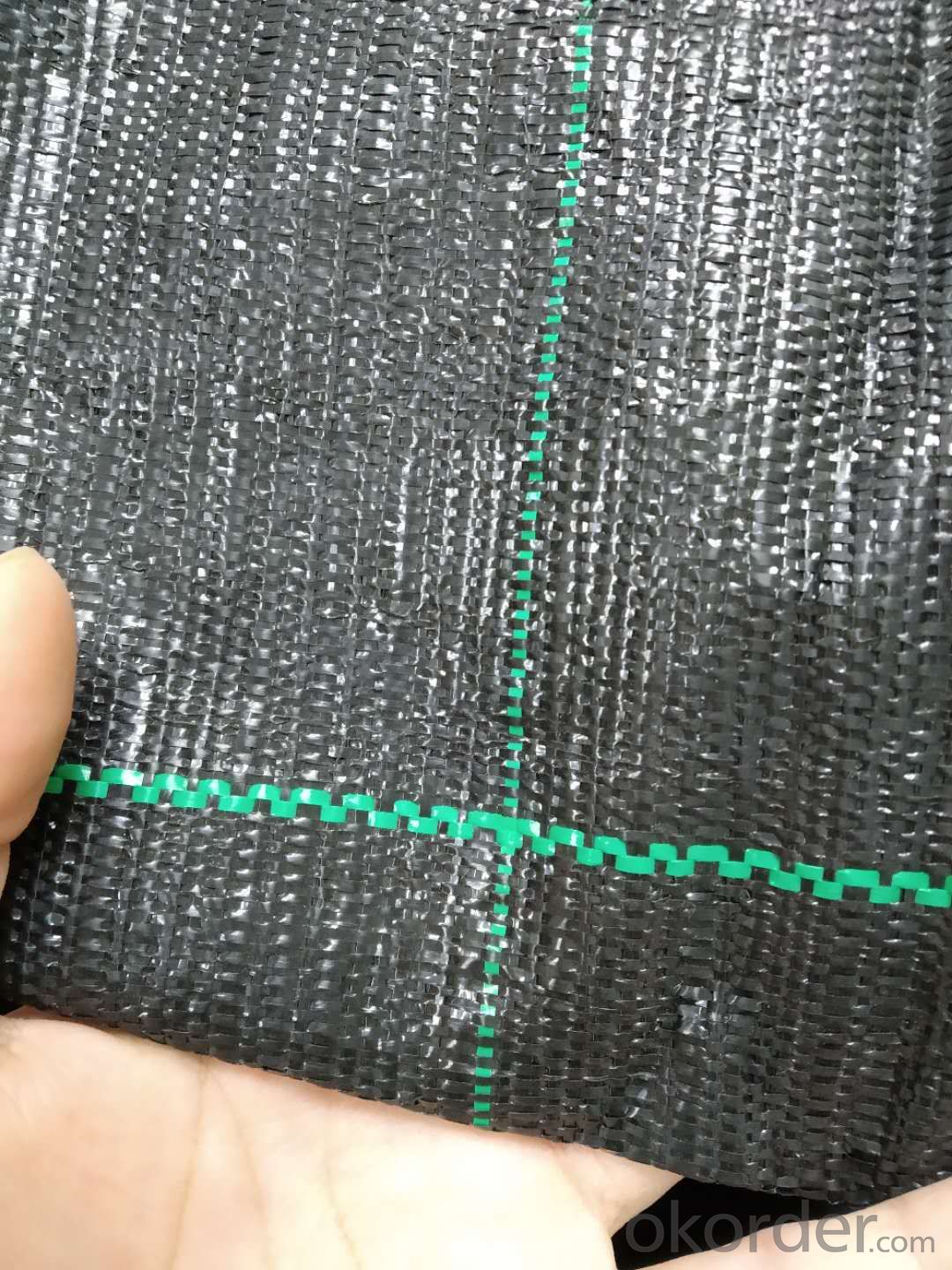

1.     Description of PP Woven Geotextile

CMAX polypropylene woven geotextile is made from polypropylene flit yarn on circle weave machine, including circular loom and flat loom.



2.     Specification of PP Woven Geotextile

Weight: 90gsm – 400gsm;

Width: 1m – 6m; Length: as clients’ required.

Color: black color, black with green lines, white color



3.     Technical Data Sheet of PP Woven Geotextile



Item

Unit

Index

Unit Weight

g/m2

120

160

200

240

280

340

400

Breaking Strength in MD

KN/m

20

30

40

50

60

80

100

Breaking Strength in CD

KN/m

15

22

28

35

42

56

70

Elongation Rate

%

25

Trapezoidal Tearing Strength

KN

0.2

0.27

0.34

0.41

0.48

0.6

0.72

CBR Mullen Burst Strength

KN

1.6

2.4

3.2

4.0

4.8

6.0

7.5

Vertical Permeability

Cm/s

10^-1 ~10^-4

Sieve Size O90(O95)

Mm

0.07 ~ 0.50

Variation

%

±10



4. Property of PP Woven Geotextile:

1).Light weight, high strength, low elongation, easy to construct.

2).Reinforcement, separation, drainage and filtration, fencing function.

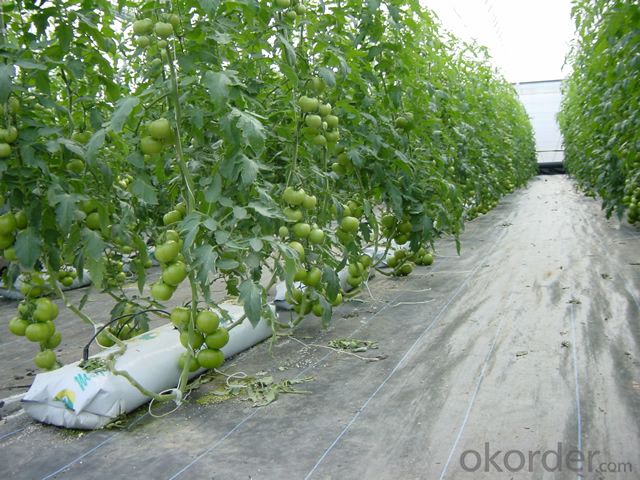

5. Application of PP Woven Geotextile

Railways, highways, sport fields, earthwork projects, tunnels, coal mines, walls and slopes, environmental protection and so on.
