Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:10000 m²
Supply Capability:300000 m²/month
Description of Polypropylene Nonwoven 600gsm Geotextile
Filament yarn with polyester filament geotextile acupuncture non-woven geotextile, there is a polyester filament geotextile after high-speed needle acupuncture and into cloth products, do not contain chemical additives in the process of needle, also without heat treatment, is environmentally friendly building materials.Can replace the traditional engineering materials and construction methods, construction is more secure, and contribute to environmental protection, can be more economic, effective and lasting to solve basic problems in engineering construction.
Main Features of Polypropylene Nonwoven 600gsm Geotextile
1, tensile and tearing resistance, bursting resistance, resistance to puncture, such as high mechanical strength, is equally grams weighs more than doubling of staple fiber geotextile, especially bursting resistance, strength reached more than 2200 Newton, in the stone slope protection, can effectively prevent irregular stones on the impact of the cloth;
2, good extension performance, stress dispersion and transmission is fast, make the uniformly distributed load;
3, the friction coefficient is big, not easy to slip when construction;
4, good chemical resistance;
5, corrosion resistance;
6, ageing resistance, embedded laid, the service life of more than 50 years;
7, heat resistant, cold resistant performance is good, can withstand 200 ~ 30 ℃ temperature difference and the quality is not affected;
Specifications of Polypropylene Nonwoven 600gsm Geotextile
1.plastic woven geotextile for dam
2.Materials:PP
3.Tensile strength:15~100kn/m
4.Unit weight:100~400g/m2
5.Width:1 ~
Technical index of the Plastic woven film yarn geotextile
| Item | Value | Note | ||||||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | ||
| Weight Variation(%) | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| Thickness(mm)≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
| Width Variation% | -0.5 | |||||||||||
| Breaking Strength( KN/m)≥ | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 13 | 14 | 16 | 19 | 25 | MD and TD |
| Elongation at break% | 25-100 | |||||||||||
| CBR Mullen Burst Strength KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
| Sieve Size O90(mm) | 0.07-0.2 | |||||||||||
| Vertical Permeability Coefficient cm/s | K×(10-1-10-3) | K=1.0-9.9 | ||||||||||
| Tearing Strength KN≥ | 0.08 | 0.12 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.6 | MD and TD |
Applications of Polypropylene Nonwoven 600gsm Geotextile
Water conservancy project and hydropower project
Road paving,railway
Airport and port
River bank protection and tunnel
Environmental protection, etc

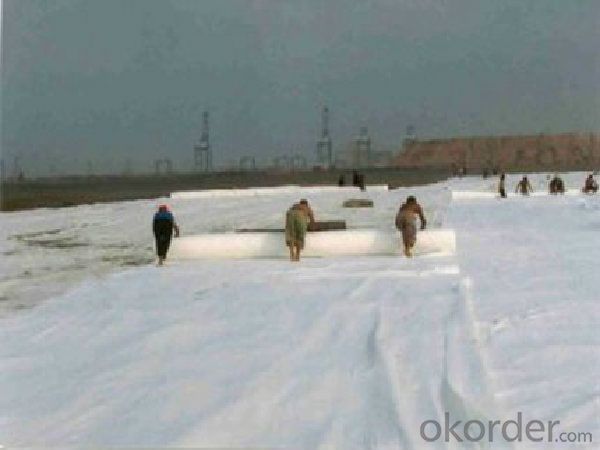

Images of Polypropylene Nonwoven 600gsm Geotextile
RFQ
1. Do you supply free samples for customers?
Yes,we will supply free samples for you.Please send your address for us.
2. How Many years experience do you have?
We have been exported to more than 20 countries in the past 15 years.
3. How long do we usually reply your request?
We always reply our customer within 24 hours.
