Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:-
Supply Capability:-
It is suitable for blowing the plastic film as high density polyethylene
(HDPE),low density polyethylene(LDPE) and linear low density
polyethylene(LLDPE),which is widely used for packing foodstuff,
garment,textile,daily-use articles and industrial products etc.It can
produce pearl film and degradation film via making up a prescription.

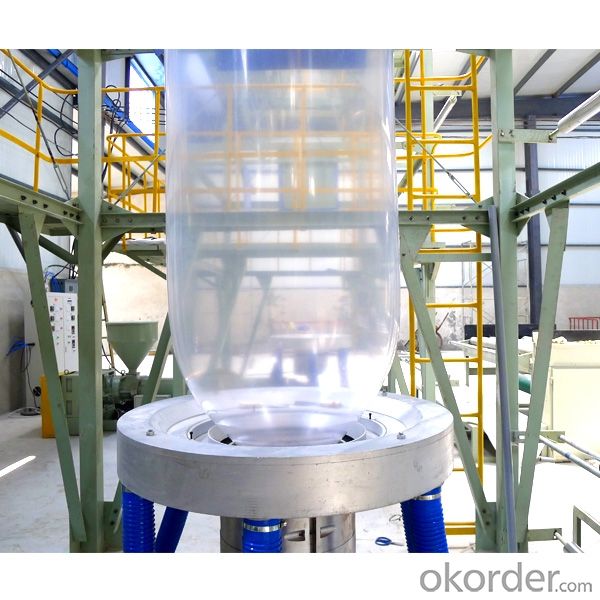

2.The die head is plated with hard chrome,of screw mandrel
type structure with even and smooth discharging,the blown plastic
film has fine finishing
3.The blower is of labyrinth structure with even air output.
4.The winding unit adopts friction pressure rewinding or center
rewinding, which is driven by torque motor,with even and easy roll
changing.
Main Technical Parameter
MODEL | 45 | 50 | 55 | |||
SUITABLE MATERIAL | HDPE ,LDPE, LLDPE | |||||
FILM WIDTH (mm) | 800-1300 | 800-1500 | 1200-2000 | |||
FILM THICKNESS(HD) mm | 0.028-0.18 | 0.028-0.18 | 0.028-0.18 | |||
MAX EXTRUSION OUTPUT | 80-130kg/hr | 120-190kg/hr | 150-260kg/hr | |||
EXTRUDER | ||||||
SCREWDIAMETER (mm) | 45/50/45 | 50/55/50 | 55/65/55 | |||
SCREW L/D LENGTH | 28:1 | |||||
SCREW AND CYLINDER MATERIAL | SACM-645/38 CRMOALA | |||||
CYLINDER COOLING | 370W×2 /3 | 370W×2 /3 | 550W×2/3 | |||
TEMPERATURE CONTROL | 3X3 | 3X3 | 3X3 | |||
Average power-consume | 58kw | 70kw | 90kw | |||
MAIN MOTOR(KW) | 15/18.5/15 | 18.5/22/18.5 | 22/37/22KW | |||
TYPE OF DIE | ||||||
DIE SIZE (mm) | 200/250 | 250/300 | 350/400 | |||
Temperature control | 4 | |||||
AIR RING | 1 | |||||
Air blower | 5.5kw | 7.5kw | 11kw | |||
TAKE UPUNIT | ||||||
ROLLER WIDTH(mm) | 165×1400 | 165×1600 | 190×2100 | |||
TAKE-UP SPEED | 5-60m/min | 5-60m/min | 5-60m/min | |||
Take-up motor | 1.5KW | 1.5KW | 2.2KW | |||
WINDING UNIT | ||||||
Type | Surface friction type | |||||
Winding motor | 1.5kw | 1.5kw | 2.2kw | |||
Winding speed | 5-60m/min | 5-60m/min | 5-60m/min | |||
OVERALL DIMENSION(LXWXH) | 7.5x5.5x7m | 8.2X5.8x7m | 9X6.4X8.2 m | |||
Chnical Parameter:
MODEL | CW-3HL45 | CW-3HL50 | CW-3HL55 | |||
SUITABLE MATERIAL | HDPE ,LDPE, LLDPE | |||||
FILM WIDTH (mm) | 800-1300 | 800-1500 | 1200-2000 | |||
FILM THICKNESS(HD) mm | 0.028-0.18 | 0.028-0.18 | 0.028-0.18 | |||
MAX EXTRUSION OUTPUT | 80-130kg/hr | 120-190kg/hr | 150-260kg/hr | |||
EXTRUDER | ||||||
SCREWDIAMETER (mm) | 45/50/45 | 50/55/50 | 55/65/55 | |||
SCREW L/D LENGTH | 28:1 | |||||
SCREW AND CYLINDER MATERIAL | SACM-645/38 CRMOALA | |||||
CYLINDER COOLING | 370W×2 /3 | 370W×2 /3 | 550W×2/3 | |||
TEMPERATURE CONTROL | 3X3 | 3X3 | 3X3 | |||
Average power-consume | 58kw | 70kw | 90kw | |||
MAIN MOTOR(KW) | 15/18.5/15 | 18.5/22/18.5 | 22/37/22KW | |||
TYPE OF DIE | ||||||
DIE SIZE (mm) | 200/250 | 250/300 | 350/400 | |||
Temperature control | 4 | |||||
AIR RING | 1 | |||||
Air blower | 5.5kw | 7.5kw | 11kw | |||
TAKE UPUNIT | ||||||
ROLLER WIDTH(mm) | 165×1400 | 165×1600 | 190×2100 | |||
TAKE-UP SPEED | 5-60m/min | 5-60m/min | 5-60m/min | |||
Take-up motor | 1.5KW | 1.5KW | 2.2KW | |||
WINDING UNIT | ||||||
Type | Surface friction type | |||||
Winding motor | 1.5kw | 1.5kw | 2.2kw | |||
Winding speed | 5-60m/min | 5-60m/min | 5-60m/min | |||
OVERALL DIMENSION(LXWXH) | 7.5x5.5x7m | 8.2X5.8x7m | 9X6.4X8.2 m | |||
