Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:-
Supply Capability:38 set/month
1.High output
2.Low price
3.CE .SGS and ISO certificate
4.Good after-sales services
5.Flexible Payment Term
Technical Parameter of Blown Film Machine ：

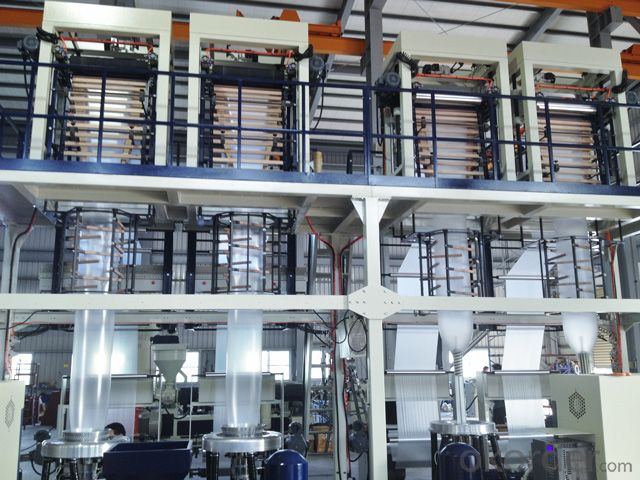

The Lines which adopt the advanced technology equipments, such as extruder with force feeding function, precision ceramicheater, precision dual lip air ring, horizontal rotating haul-off system, IBC internal bubble cooling system, the first haul-off system with cooling function, fully automatic two-slitter and two-winding surface winder, which can be fit for producing all kinds of high clarity packing film.
Main Technical Variables | ||||
MODEL | GD/L-65B | GD/L-80B | GD/L-100B | GD/L-120B |
SUITABLE MATERIAL | LDPE LLDPE | |||
FILM WIDTH(mm) | 800-1500 | 1000-2000 | 1500-2500 | 1800-3300 |
FILM THICKNESS (mm) | 0.015-0.15 | 0.015-0.15 | 0.015-0.15 | 0.015-0.15 |
MAX.EXTRUSION OUTPUT | 150kg/hr | 280kg/hr | 350kg/hr | 450kg/hr |
EXTRUDER | ||||
SCREW DIAMETER(mm) | φ65 | φ80 | φ100 | φ120 |
SCREW L/D LENGTH | 28:1 | |||
SCREW MATERIAL | SACM-645/38 CRMOALA | |||
CYLINDER MATERIAL | SACM-645/38 CRMOALA | |||
CYLINDER COOLING | 550w×3 | 550w×3 | 750w×4 | 750w×4 |
DRIVING MOTOR(Kw) | 37 | 55 | 90 | 110 |
TEMPERATURE CONTROL | 4 | 4 | 5 | 5 |
AVERAGE POWER-CONSUME(Kw) | 45 | 65 | 90 | 110 |
TYPE OF DIE | ||||
DIE SIZE(mm) | 350/400 | 400/500 | 500/600 | 500/600 |
TEMPERATURE CONTROL | 3 | 4 | 4 | 5 |
AIR RING | 1 | |||
AIR BLOWER(Kw) | 5.5 | 5.5 | 7.5 | 11 |
TAKE-UPUNIT | ||||
PINCH ROLLER (DIA. WIDTH)mm | φ165×1800 | φ190×2100 | φ 190×2600 | φ220×3500 |
TAKE-UP SPEED(m/min) | 5-60 | 5-60 | 5-60 | 5-60 |
TAKE-UP MOTOR(Kw) | 1.5 | 1.5 | 2.2 | 2.2 |
WINDING UNIT | ||||
TYPE | SURFACE FRICTION TYPE | |||
WINDING MOTOR(Kw) | 1.5 | 1.5 | 2.2 | 2.2 |
WINDING SPEED(m/min) | 5-60 | 5-60 | 5-60 | 5-60 |
COVER DIMENSION(m) | 6.8×2.6×6.5 | 7.5×3.2×7.2 | 9.0×4.2×10 | 11×5.0×11.5 |
OPTIONAL EQUIPMENT1) AUTO LOADER 2) EMBOSSING ROLLER 3) FILM SURFACE TREATER 4) DIE ROTARY DEVICE 5) AIR COMPRESSOR 6) MECHANICS SCREEN CHANGER |
We have perfect technical inspection facilities, advanced quality-control system and great production capacity, all which ensure good quality as well as timely delivery.
