Description:
1.excellent thermal shock resistance;
2.excellent mechanical properties and resistance to vibration
3. long service life

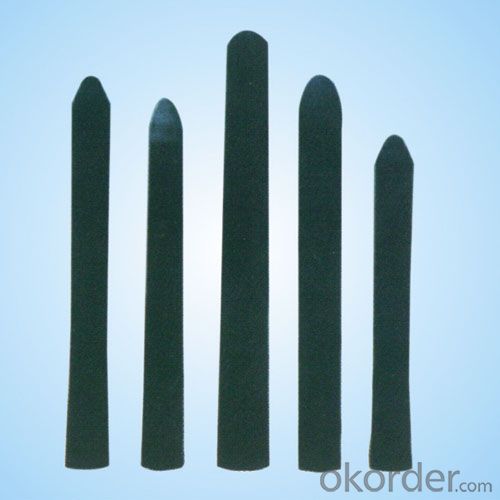

Monoblock stopper is one of the important steel flow regulation components, and to meet the particularly demanding operating conditions, we manufacture varieties of stoppers with customised specifications to suit the different designs of our customers' tundishes
To facilitate customisation, during our manufacturing process, we apply different mixtures of aluminia or magnesia to the nose of our stoppers for our customers, enabling them to cast various types of steel.
The characteristics of the stopper are as follows:
PARMETER | Major portion | Stopper head | Stopper head | Stopper head |
F.C+SiC (%) | 20 | 10 | 20 | 12 |
Al2O3 (%) | 68 | 80 | ||
ZrO2 (%) | 72 | |||
MgO (%) | 75 | |||
apparent porosity(%) | 15 | 14 | 16 | 15 |
bulk density(g/cm3) | 2.35 | 2.80 | 3.30 | 2.70 |
CCS (Mpa) | 27 | 26 | 27 | 25 |
MOR (Mpa) | 8.0 | 8.0 | 9.0 | 8.0 |
The stopper head is the key part. Standard materials are：
Alumina carbon suitable for ordinary steel flow control
Zirconium carbon suitable for special alloy steel flow control
Magnesia carbon suitable for Ca-treatment steel flow control
