Loading Port:China Main Port
Payment Terms:TT or L/C
Min Order Qty:100pcs pc
Supply Capability:5000pcs per month pc/month
| Packaging Details: | Neutral color box |
|---|---|
| Delivery Detail: | Delivery within 1 week against the deposit /payment received |
Specification of Hot Sell Combo DVR Standalone:

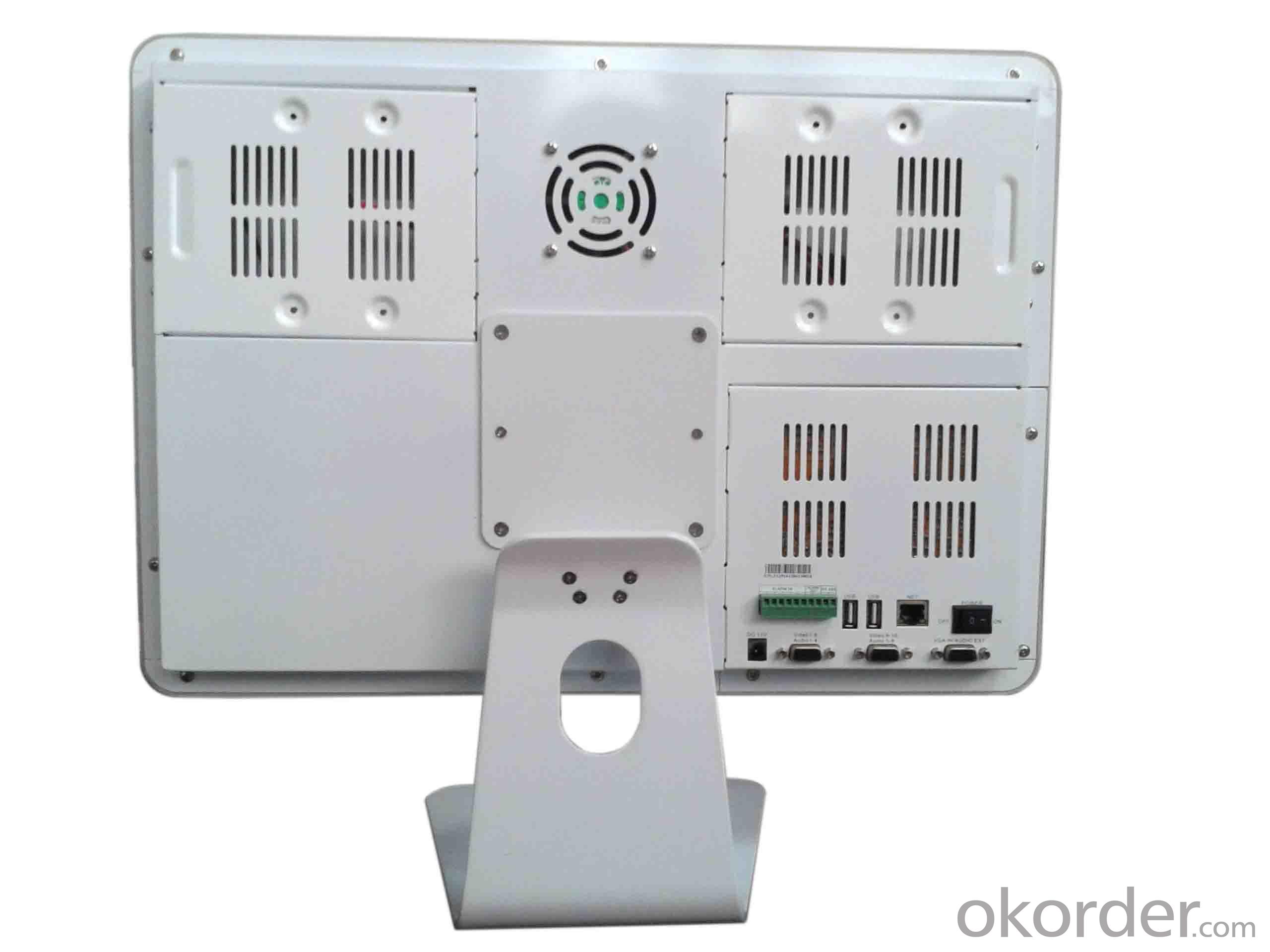

. Combo DVR with a 19 inch TFT LED monitor.
. Standard H.264 compression high image quality, low bite rate
. Support 4ch D1 with real- time recording
. Gigabit network interface, WEB, Client and SDK suite
. Intuitive and user-friendly Graphic User Interface (GUI), windows style operation by mouse.
. Build in OSD menu with 14pcs language
. Powerful 3G smart mobile surveillance. Support Windows Mobile/Symbian/Android/iPhone/ blackberry
. USB 2.0 interface, which support different operations such as USB mouse, backup,recording and upgrade, etc.
| Video System | NTSC / PAL |
| Video Compression | H.264 |
| LED | 19〞TFT LED |
| Operation System | Embedded Linux |
| Video Input | BNC*4 (Composite signal 1.0Vp-p 75Ω ) |
| Video Output | BNC*1 (Composite signal 1.0Vp-p 75Ω ) 1ch VGA output |
| Video Record Frame Rate | NTSC：30fps/ch, PAL：25fps/ch |
| Video Record | NTSC：120fps D1 ,PAL：100fps D1 |
| Frame Rate (max) | D1：720*480(NTSC) 30 fps/ch, 720*576(PAL) 25 fps/ch |
| Video Record Resolution | D1：720*480(NTSC) 120fps,720*576PAL) 100 fps |
| CIF：352*240(NTSC) 120 fps, 352*288(PAL) 100 fps | |
| Audio Input/output | 2ch (RCA) in / 1ch(RCA) out |
| Operation Mode | live display, record, playback, backup, network |
| Recording Mode | Manual, Time, Motion, Alarm, Remote |
| Alarm Input/output | 4ch Input, 1ch Output |
| PTZ Camera Control | RS485 |
| Motion Detection Sensitivity | Four adjustable parameters for accurate detection |
| HDD Storage | 2pcs SATA interface, each supports 1TB HDD |
| USB Flash Drive Backup | YES (2pcs USB2.0 interface) |
| Network Interface | 1 pc RJ45 10M/100M Ethernet interface |
| Network Protocol | TCP/IP, UDP, HTTP, NTP, DHCP, DDNS(Dynamic IP) |
| Network Function | IE remote monitor, control, setup, playback |
| CMS – Central Management System | YES (Maximum：16 different IP addresses) |
| IR Remote Control | YES |
| Multilingual OSD | YES |
| Power Source | DC 12V /3A |
| Power Consumption | 20 ~ 36W |
| Working Temperature | –10°C ～ 50°C |
| Working Humidity | 10% ~90% |
