Loading Port:China Main Port
Payment Terms:TT or L/C
Min Order Qty:50pcs pc
Supply Capability:20000pcs per month pc/month
| Packaging Detail: | Neutral color box to protect products during shipping |
| Delivery Detail: | 7-10 days after getting payment money |

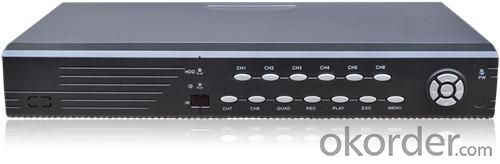

Specification of Digital Video Record:
• H.264 standard compression format with efficient processing and clear image
• Support D1 full real time recording encoding
• Two high-speed USB2.0 interfaces, you can mix backup and mouse
• Support six operations at the same time, recording, playback, network transmission, backup, mobile monitoring, PTZ control etc.
• Support IE and client, remote parameter settings / convenient remote network access function without need to apply for any domain names, plug and play
• Dedicated high-reliability file system for special monitoring
• Simplified Chinese, English, Thai, Russian, French, Spanish etc. over twenty languages
• A powerful mobile control and monitoring features to support Window Mobile, Symbian, Android, iPhone and Blackberry etc

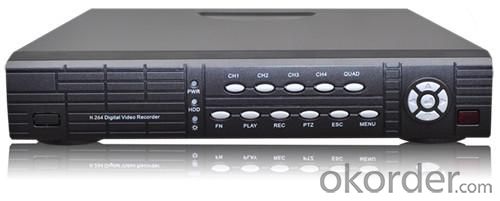

Model | CMAX-D1004B | |||
System | Main Processor | High performance embedded microprocessor | ||
System Resource | Pentaplex: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring | |||
Control Mode | Front panel, USB mouse, IR remote control, Keyboard, Network | |||
Video | Input | 4×BNC,(1.0Vp-p,75Ω) | ||
Standard | NTSC 120F/S,PAL100F/S | |||
Output | 1×BNC,(1.0Vp-p,75Ω),1×VGA | |||
Audio | Input | 4 ×RCA | ||
Output | 1 ×RCA | |||
Display | Display Split | 1/4 | ||
Resolution | VGA:1280*1024, 1024*768, 800*600 | |||
Tour Display | Support | |||
Recording | OSD | Camera title, Time, Video loss, Motion detection, Recording | ||
Video/Audio-compression | H.264/ADPCM | |||
Image Resolution | D1(720*576/720*480), HD1(720*288/720*240), CIF(352*288/352*240) | |||
Encoding Stream | Main | 120FPS(D1) | ||
Extra | 60FPS(CIF) | |||
Recording Mode | Manual, schedule(regular continuous), MD(Video detection: | |||
Recording Priority | Manual>Alarm>Motion detection | |||
Recording Interval | 5-120mins(default:60mins) | |||
Video detection & Alarm | Trigger events | Recording, PTZ movement, Alarm, E-mail | ||
Motion detection | Zones:396（22*18）,Sensitivity:1-5（Level 5 is the highest） | |||
Video loss | Support | |||
Alarm input/output | 4CH input/1CH output | |||
Playback & Backup | Playback channel | 4CH | ||
Playback speed | 60FPS(D1) | |||
Search mode | Time/date, Alarm, Motion detection | |||
Playback function | Play, Pause, Stop, Fast forward, Slow forward, Full screen etc. Recording files can be viewed by dragging the progress bar back and forth | |||
Backup mode | U-disk/Hard disk/USB CD/DVD-RW/Download | |||
Network | Physical interface | RJ-45port(10/100M) | ||
Network function | TCP/IP,UDP,DHCP,DNS,IP filter, PPPOE, E-mail, Alarm server, UPNP, DDNS,DNS Binding | |||
Remote operation | Monitor, PTZ control, Playback, System setting, files download, Log information | |||
Mobile monitoring | Support Window Mobile, Symbian, Android, iPhone, Blackberry etc. | |||
Hard Disk | Hard disk | 1 or 2 SATA port, the capacity of single hard disk has no limit | ||
Space occupation | Audio: 14.4MB/H, Video: 56-900MB/H | |||
HDD management | Hard disk hibernation technology, HDD faulty alarm, file restoration | |||
Auxiliary Interface | USB | Two USB2.0 interface, for connecting mouse, U-disk, USB hard disk | ||
RS485 | PTZ control | |||
Environment | Power supply | 12V/4A | ||
Working | -10℃~+55℃/10~90%RH/86~106KPa | |||
Dimension | 330*250*50mm(Product size) | |||
Weight | 2.6 kg(W/O HDD) | |||
