Hot Dipped Galvanized Steel Coil in Coil

Product Description:

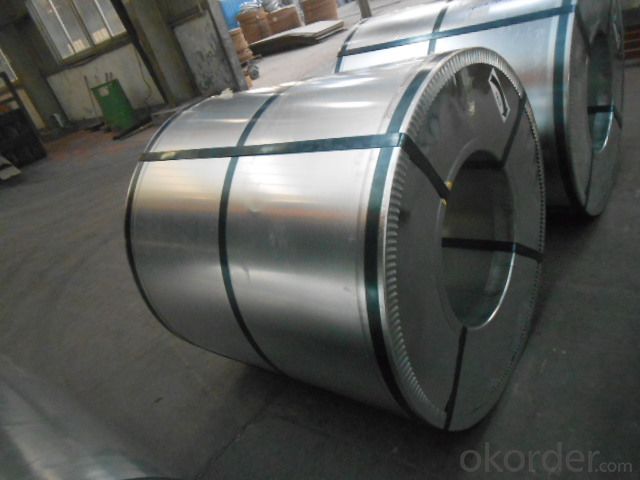

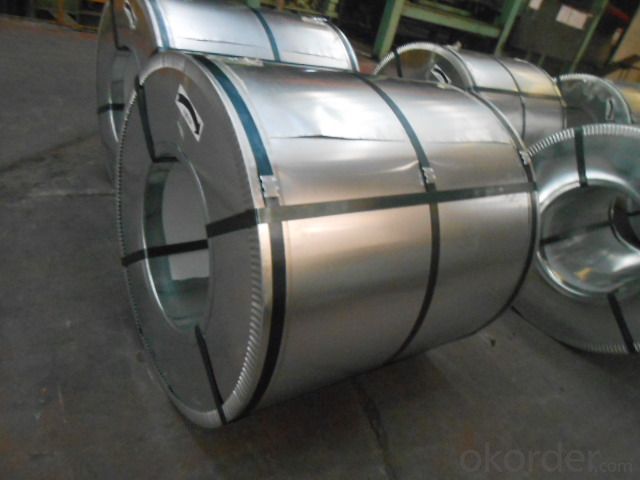

Hot Dip Galvanized Steel Coil

Steel Grade & Standard:JIS G3302 SGHC

Zinc Coating Mass:Z09

Spangle:Regular Spangle

Surface Treatment:Chromated,Unoiled,NonSkinpassed

Coil ID:508mm

Coil Weight:4-7MT

Package Type:

Thickness Tolerance: 0.02mm

Width Tolerance:0-5mm

Zinc Coating Tolerance:2um

Thickness:0.5-3.7mm

Width:914mm-1250mm

Application

1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds

2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts

3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway

4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine

Package：covered with waterproof-paper,strapped by strips. Standard seaworthy export package:4 eye bands and 4 circumferential bands in steel, galvanized metal fluted rings on inner and outer edges, galvanized metal & waterproof paper wall protection disk, galvanized metal & waterproof paper around circumference and bore protection.
