High Quality Initial Adhesion Testing Machine IT-3

Product Description:

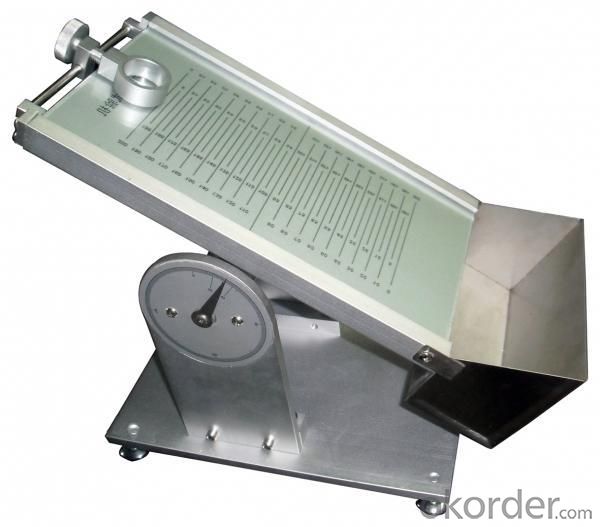

General Information High Quality Initial Adhesion Testing Machine IT-3

Made by China National Standard GB/T4852-2002. This machine is used for testing the initial adhesion of pressure sensitive tapes.

Technical Data High Quality Initial Adhesion Testing Machine IT-3

OBLIQUITY RANGE:0-60 DEGREE

WIDTH OF TESTING TABLE:120MM

WIDTH OF TESTING AREA:80MM

STANDARD STEEL BALLS:1/32 INCH-1 INCH

DIMENSION:320(L)MM X 140(W)MM X 180(H)MM

STANDARD CONFIGURATION:TESTING MACHINE;32 TESTING STEEL BALLS TESTING

STANDARD:GB 4852; JIS Z0237

 Instruction:stick about 20mm tape on the slant surface of machine=)let the steel ball fall on the slant furface=)when the ball falls off, there is slight pressure between the ball and tape, so wetest the initial adhesion by the sticking ability of the ball to the tape.

Packing of High Quality Initial Adhesion Testing Machine IT-3
Packed with wooden carton of customized size and then placed on the pallet.

Storage Of High Quality Initial Adhesion Testing Machine IT-3

Storage procedures：Keep dry and cool and away from direct sunlight for quality.

Remarks of High Quality Initial Adhesion Testing Machine IT-3
Due to machine development, above information may be changed at any time without prior notice. The actual specifications are according to the agreement between buyer and seller.

Service of High Quality Initial Adhesion Testing Machine IT-3
We have a group of professional technicians and workers with rich experience, who are dedicated in this industry and try to offer best service to every customer. We are undertaking the idea of “reliable quality, reasonable price, and good service” to meet the needs of every customer. Your success is our goal, and your content is our hope. We keep pursuing “exact production, high-quality service”.
