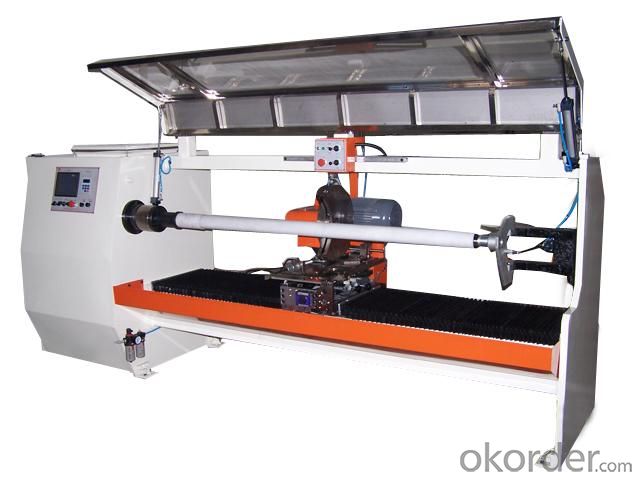

Technical Data of Auotomatic Single Shaft Cutter SC1600
Name: High Quality Auotomatic Single Shaft Cutter SC1600
Item No. SC1600
Effective Width (mm) 1600
Min. Cutting Width (mm) 3
Paper Tubes Diameter (mm) 76
Max. Cutting Diameter (mm) 250
Cutting Speed (sec/pc) 3~10
Air Pressure (Kg/cm2) 6
Total Power (KW) 6
Dimension(L x W x H) (mm) 3300 x 1300 x1500
General Information of Automatic Single Shaft Cutter SC 1600
It is suitable for cutting PVC tape, Masking tape, Double Sided tape, Kraft paper tape, Foam tape, Cloth tape, etc. The cutting width can be freely set up with high cutting precision. It is driven by servo motor and PLC programmable control. Circular knife angle can be adjusted manually or automatically (optional). Also it is equipped with circular knife cooling system.
Features of Auotomatic Single Shaft Cutter SC1600
Cutting width can be freely set up with high cutting precision. Driven by step motor (servo motor optional). PLC programmable control. Circular knife angle can be adjusted manually. Equipped with circular knife cooling system.
Packing of Auotomatic Single Shaft Cutter SC1600
Packed with wooden carton of customized size and then placed on the pallet.
Remarks of Auotomatic Single Shaft Cutter SC1600
Due to machine development, above information may be changed at any time without prior notice. The actual specifications are according to the agreement between buyer and seller.
