Loading Port:Ningbo
Payment Terms:TT OR LC
Min Order Qty:2 m.t
Supply Capability:800 m.t/month

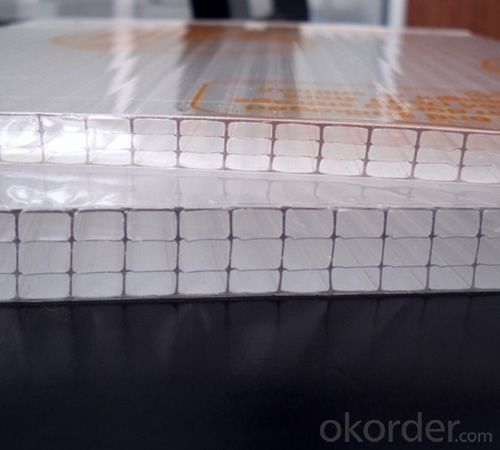

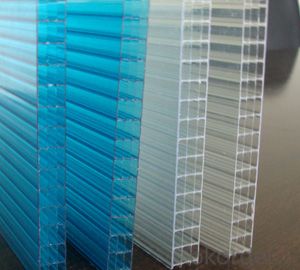

High Quality Colored Four-wall Polycarbonate Hollow Sheet
Polycarbonate Technical Features:
1)Light weight:4mm-1.0kg/sqm,6mm-1.3kg/sqm 8mm-1.5kg/sqm,10mm-1.7kg/sqm
2)High impact resistance
3)Good light transmission:72%-80% for clear color different thickness
4)Good heat insulation(K value):
4mm-4.0W/m2K 6mm--3.6W/m2K
8mm-3.3W/m2K 10mm-3.0W/m2K
5)UV layer thickness: 50μm ,can filter about 99% ultraviolet radiation in sunshine
6)The minimum bend radii for different thickness with standard size(2100mm*6000mm)
4mm--700mm, 5mm--875mm,6mm--1050mm,8mm--1400mm,10mm--1750mm
7)Simply processed and installed
Specification:
Thickness (mm) | Structure | Light Transmittance(%) | Min.Bend Radius(mm) | Max Width(mm) | Color |
6 | Four-wall | 68 | 1320 | 2100 | Clear Opal Green Blue Orange Red Brown |
8 | 67 | 1760 | |||
10 | 66 | 2200 | |||
Material | Continuous-use-temperature rating | Softening temperature | |||
Polycarbonate | 100°C | 145°C | |||
Acrylic | 50°C | 100°C | |||
PVC | 50°C | 70°C | |||
Applications:
1) Roofing light sheet and sunshade for office building, department store, hotel, stadium,school,amusement center,hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.
7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
8) Industrial Roofing and Glazing
9) Swimming Pools roofing/cover/sheet
