Loading Port:China Main Port
Payment Terms:TT
Min Order Qty:1 Set set
Supply Capability:10 Sets Per Month set/month

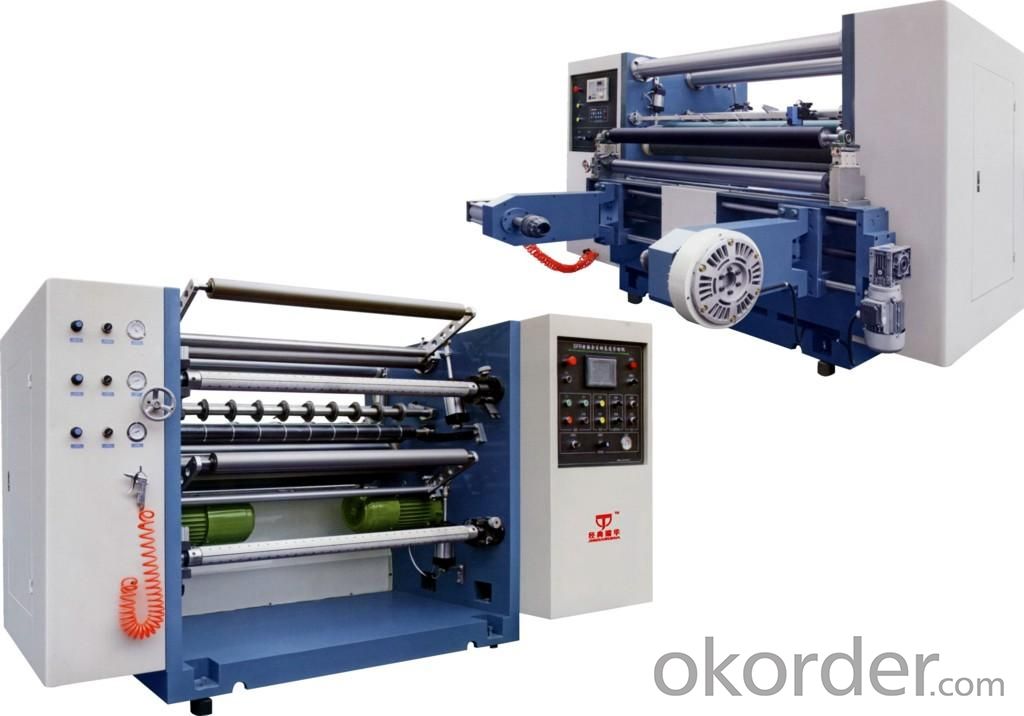

Technical Data of High Profiency Low Noise Slitting Machine QS1600
Name Low Noise Slitting Machine
Item No. QS1600
Max.Effective Width(mm) 1600
Max.Unwinding Diameter(mm)800
Unwinding Core Diameter(mm) 3"
Mechanical Speed(m/min) 0~225(50HZ)
Min.Slitting Width(mm) 20
Rewinding Core Diameter(mm) 150
Dimension(L x W x H) (mm) 2300x1660x1420
General Information of High Profiency Low Noise Slitting Machine QS1600
Used to slit BOPP, PET tapes. Unwinding: manual tension control with air brake. Rewinding: manual tension control with plastic core spring friction. Equipped with adjustable arc stretch roller for wrinkle prevention. Optional accessories: a pneumatic knife, auto label sticking, noise shield for unwinding.
Features of High Profiency Low Noise Slitting Machine QS1600
Equipped with circular knife; Using 4-shafts automatic shift rewinding and continuous operating to improve working efficiency; Speed stepless adjustable by frequency converting;Equipped with3-sections counter that can automatically slow down and stop the machine from high speed;Pneumatic control of unwinding tension rewinding tension controlled by independent; Equipped with arc stretching of materials; Auto-labeling system and equipment with sound insulation cover is optional.
Packing of High Profiency Low Noise Slitting Machine QS1600
Packed with wooden carton of customized size and then placed on the pallet.
Remarks of High Profiency Low Noise Slitting Machine QS1600
Due to machine development, above information may be changed at any time without prior notice. The actual specifications are according to the agreement between buyer and seller.
