Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:10 m.t.
Supply Capability:100 m.t./month
| Application: | Refractory | Thickness: | 10-50mm(12,20,25,50) | Width: | 400/600/1220mm |
| Length: | 600-1220mm(1200/1000/600/900mm) | Grade: | HA (High Aluminum) | Chemical Composition: | al2o3,AL2O3+SIO2 >99.5% |
| Ultimate Strength (≥ MPa): | 0.5 | Working Temperature: | 1450C | Fiber Diameter: | 3-5um |
| Thermal Conductivity: | 0.055-0.135,0.055-0.135 | Shrinkage (1800℉, 3h): | -3 | Place of Origin: | China (Mainland) |
| Model Number: | fiber board | Brand Name: | Color: | pure white |
| Packaging Detail: | Inside plastic bags, outside carton boxes.(ceramic fiber boards) |
| Delivery Detail: | 14 days after signed sales contract(ceramic fiber boards) |
Product Description

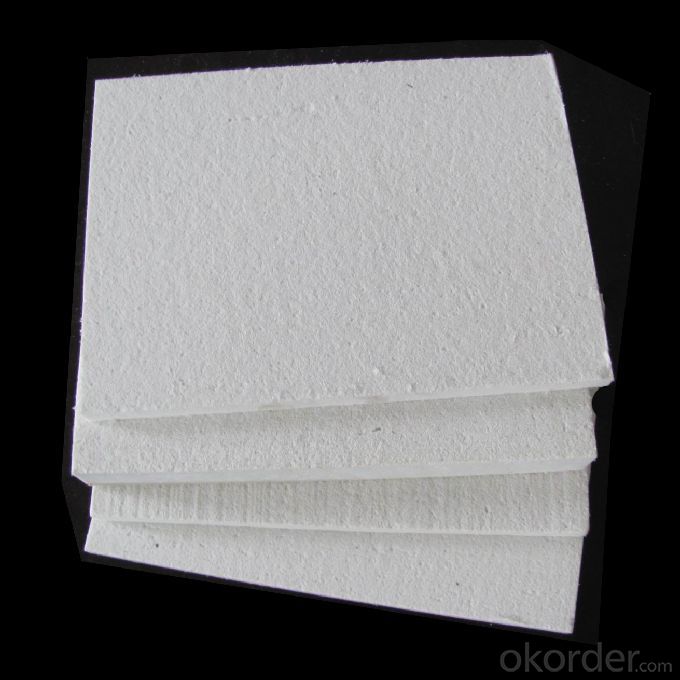

Ceramic Fiber Board
YS ceramic fiber board is a wet vacuum filter pressure forming, plus the use of loose cotton made ??of organic and inorganic binders. The product has a hard texture and excellent strength, resistance to erosion, cut and easy processing. The fire-resistant fiber materials chemical stability, and thus light weight, thermal insulation effect is good, is a versatile product that can be used in lining hot flame and heat resistant surface air direct impact.
Ceramic Fiber Boards Features:ceramic fiber board , alumina fiber board
Low thermal conductivity, thermal shock, high temperature stable performance, good sound insulation, a wide range of bulk density (300-600 kg/m3), product variety, temperature dependent (800oC-1800oC), corrosion resistance, easy processing cutting, direct contact with flame, easy to install.
Ceramic Fiber Boards Application:fiber board/ cramic fiber board/ alumina fiber board
First,the furnace door alumina fiber board aluminum fiber board
Second,the equipment heating insulation and electrical insulation materials
Third,glass and enamel
Fourth,high-temperature insulation
Fifth,a variety of high-temperature furnace lining ladle permanent layer,tunnel kiln,roller kiln
Ceramic Fiber Boards Featured:
Have been using the latest high-tech, industrial results B-1800 ultra-high temperature refractory fiber market, the product has a high temperature, short-term use up to 1800oC, continuous use temperatures up to 1750oC, and the product has a resistance to thermal shock good performance, versatile and so on.
Physical and chemical data:
Model | YS-1000 | YS-1260 | YS-1430 | YS-1600 | YS-1800 | |
Classification temperature(°C) | 1000 | 1260 | 1430 | 1600 | 1800 | |
Weight capacity(kg/m³) | 300-600 | 300-600 | 300-600 | 300-600 | 300-600 | |
Permanent linear shrinkage(%) | <2(800°C×24hr) | <2(1100°C×24hr) | <2(1200°C×24hr) | <2(1500°C×24hr) | <2(1500°C×24hr) | |
Chemical composition% | Al203 | 35 | 42 | 35 | 63.5 | 75 |
Al203+SiO2 | >96.0 | >98 | 88.5 | >99 | >99.5 | |
Fe2O3 | 0.2 | 0.2 | 0.2 | <0.1 | <0.1 | |
ZrO2 | / | / | 8 | / | / | |
