Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:10 m.t.
Supply Capability:100 m.t./month
| Application: | Heat Insulation | Thickness: | 10-50mm | Width: | 300/600mm |
| Length: | 900/600mm | Grade: | COM (Common) | Chemical Composition: | Aluminosilicate |
| Ultimate Strength (≥ MPa): | 0.5Mpa | Working Temperature: | 1260C | Fiber Diameter: | 3-5um |
| Thermal Conductivity: | (1800℉, 3h)<2.5(24 hours) | Shrinkage (1800℉, 3h): | 0.085-0.180w/m.k(400-100) | Place of Origin: | (Mainland) |
| Model Number: | COM 1100C | Brand Name: | Density: | 260/280/300/320kg/m3 |
| Packaging Detail: | carton/bag,or according to customer's requirement |
| Delivery Detail: | with in 7-10days |
Wide bulk density, 260-320kg/m3
Excellent resistance against chemical
Detailed Product Description

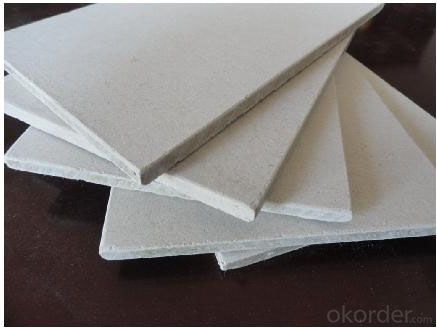

Produc description:
The ceramic fiber board are made of different refractory fiber bulks with excellent chemical stability,organic and inorganic bond bywet method and vacuum forming processing which is applitical to many kinds of industries.The fiber board with a characteristics of hard, flexible,excellent strength and resistance against corrosion.
Product Features
Wide bulk density, 260-320kg/m3
Variety ,can be classified by temperature800ºC-1600ºC
Low thermal conductivity and shrinkage
Low heat storage
Excellent resistance against chemical attack
Easy to machine ,cut and install
Product Application:
High temperature seal, heat insulation
Refractory back lining
Thermal power,
Glass and enamel
Fire proofing
ITEM
PRODUCT
COM
STD
HP
HA
HZ
Classification TemperatureºC
1100
1260
1260
1360
1430
Working TemperatureºC
<1000
1050
1100
1200
1350
Color
white
white
white
white
white
Densitykg/m3
260 320
260 320
260 320
260 320
260 320
Liner Shrinkage% After 24hours
<2.5
<2.5
<3.5
<2.5
<3.5
1000ºC
1000ºC
(1100ºC)
(1200ºC)
(1350ºC)
Thermal conductivityw/m.k density128Kg/m3)
0.085 400ºC
0.085 400ºC
0.085 400ºC
0.085 400ºC
0.085 400ºC
0.132 800ºC
0.132 800ºC
0.132 800ºC
0.132 800ºC
0.132 800ºC
0.180 (1000ºC)
0.180 (1000ºC)
0.180 (1000ºC)
0.180 (1000ºC)
Tensile strengthMPa (Strenth10%)
0.5
0.5
0.5
0.5
0.5
Chemical Composition %
Al2O3
44
46
47-49
52-55
39-40
Al2O3+SiO2
96
97
99
99
-
Al2O3+SiO2+ ZrO2
-
-
-
-
99
ZrO2
-
-
-
-
15-17
Fe2O3
<1.2
<1.0
0.2
0.2
0.2
Na2O+K2O
≤0.5
≤0.5
0.2
0.2
0.2
Size(mm)
Specification:600X400X10-50,900X600X20-50,other according to customer's requirement
