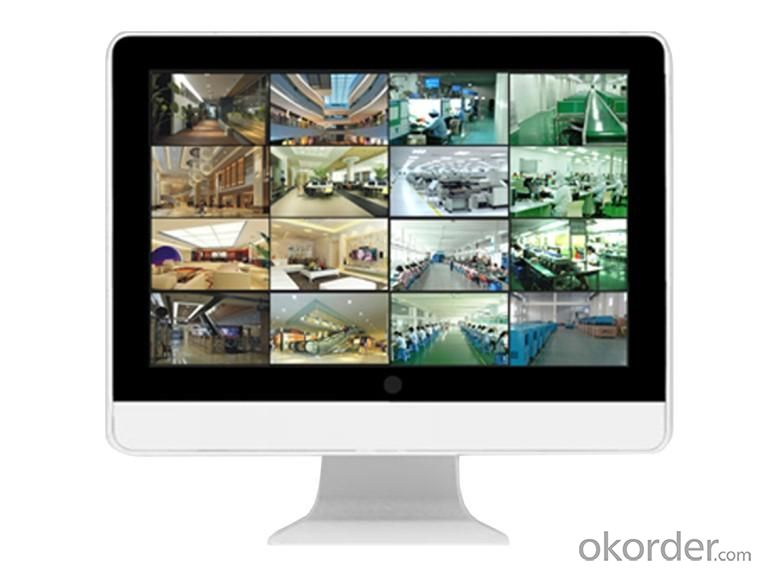

DVR Kit with 19" TFT LED monitor-D1508CK

Loading Port:China Main Port

Payment Terms:TT or L/C

Min Order Qty:100pcs pc

Supply Capability:5000pcs per month pc/month

Packaging & Delivery

Packaging Details:	Color box or neutral color box
Delivery Detail:	Delivery within 1 week against the deposit /payment received

Specification of DVR Kist 19inch TFT LED monitor

. Unique DVR Kit with 19" TFT LED monitor

. Central Power Supply

. Aviation Connectors For Safe Operation

. 8CH D1 real time recording, 2CH audio, H.264 compression, high image quality, low bite rate

. 2 SATA hard disk interface, each supports 1TB HDD

. Support video output VGA, BNC

. Support multiple DDNS(3322, dyndns etc)

. Intuitive and user-friendly Graphic User Interface(GUI), Linux system operated by mouse

. OSD Menu support 14 languages

. Recording mode: manual/time/alarm/auto

. 8CH simultaneous playback, Express search by date, time and alarm Single backup by usb driver via network

. Function: browse, recording, backup, support network, central Power supply

. Support mouse, remote control, IE interface to operate local DVR

. Email alert supported

. Authorization management

. Support TV / color adjustment

. Query log , quick event query

. Support PTZ auto-scan preset and auto cruise

. Powerful 3G mobile surveillance, support Windows mobile/Symbian/Andiod/iPhone/Blackberry

Main Processor	Hi3515
OS	Embedded Linux
Signal System	PAL/NTSC
System Resource	Multi-channel real time recording and playback,multi-channel net operation
Operation Interface	Support mouse, Menu interface and remote control
Display Split	1/4/8/9 screen
Surveillance Quality	D1
Playback Quality	CIF
Stream Control	Support fixed stream/ variable stream optional
Image Quality	6 modes for choosing（variable stream）
Recording speed	PAL: 25 fps per channel, NTSC: 30 fps per channel
Image motion detection	Each image can be set (22 × 18) detection zones
Audio compression	G.711
Recording Mode	Manual>Alarm>Dynamic Detection>Timing
Playback	4/8 Channel playback
Video Mode	Time/ calendar/ event/ channel search
Video storage	Hard disk/ network/ USB
Backup Mode	Network /USB/ hard disk
Video Input	8 x Φ12-4P aviation connector input
Video Output	BNC x1, VGA x1 (Support up to 1280*1024/60Hz)
Audio Input	RCA x2
Audio Intercom Input	RCA x1（function upgrading）
Audio Output	RCA x1
Alarm Input	4 Channel
Alarm Output	1Channel relay alarm output
Alarm Relay	DC 12V
Network interface	RJ45 10M/100M adaptive Ethernet port
PTZ control interface	1 x RS485
USB interface	2 x USB
HDD interface	2 x SATA port
Power supply	DC12V±10%/60W(power external )
Power consumption	<15W(No HDD)
Operating Temperature	-10℃~+55℃
Operating Humidity	10%~90%
