Loading Port:China Main Port
Payment Terms:TT or L/C
Min Order Qty:100pcs pc
Supply Capability:10,000pcs per month pc/month
| Packaging Detail: | Neutral color box |
| Delivery Detail: | 7-10 days after getting payment money |

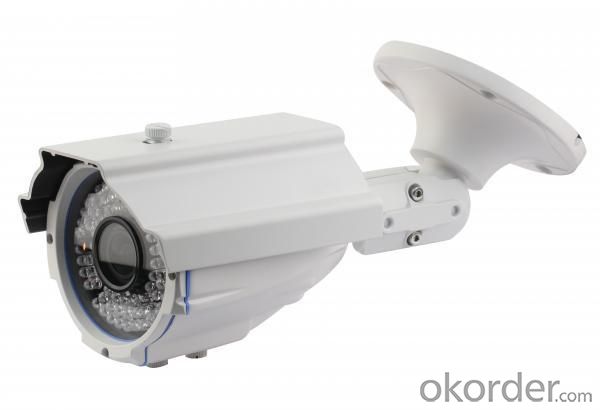

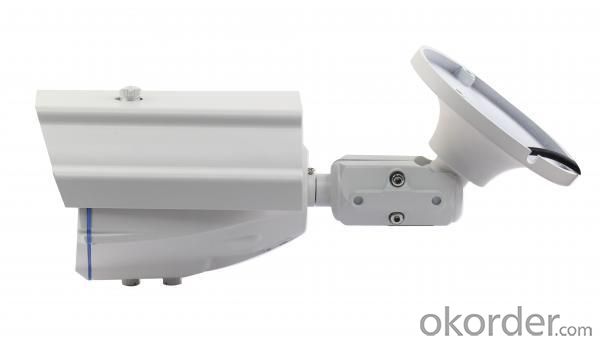

Description of Day/Night IR Array Waterproof Camera
| Model | CMAX-642R-IR80 | CMAX-648R-IR80 | CMAX-654R-IR80 | CMAX-665R-IR80 | |
| Image sensor | 1/3 SONY CCD | ||||
| Pixel | PAL | 500(H)* 582(V) | 720(H)* 540(V) | 752(H)* 582(V) | 976(H) x 582(V) |
| NTSC | 510(H)* 492(V) | 768(H)*492(V) | 768(H)* 596(V) | 976(H)x 494(V) | |
| Resolution | 420TVL | 480TVL | 540TVL | 650TVL | |
| OSD menu | NO | YES | |||
| Video output | 1.0VP—P/75Ω | ||||
| White balance | auto | ||||
| Gain control | auto | ||||
| Backlight compesation | auto | ||||
| Electronic shutter | 1/50(1/60)～1/120,000s | ||||
| Gamma correction | 0.45 | ||||
| Sync system | internal | ||||
| S/N radio | >=48dB | >=52dB | |||
| IR led | Build in 12pcs piranha IR leds | ||||
| view distance | 80m | ||||
| Minimun Illumination | 0LUX（IR ON） | ||||
| Operation lens | standard :12mm operation:6、8、16mm lens (optional) | ||||
| Protection level | IP65 | ||||
| Supplied voltage | DC 12V,1000mA | ||||
| Working temperature | -10~60 ℃ | ||||
