Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:500 m.t.
Supply Capability:10000 m.t./month
Size of 52100 Carbon Alloy Steel | ||||||||

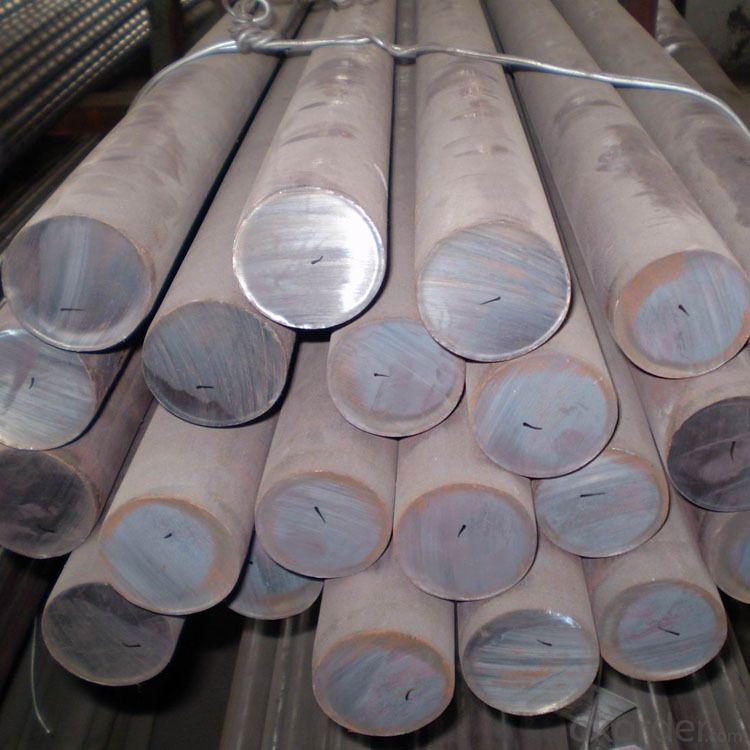

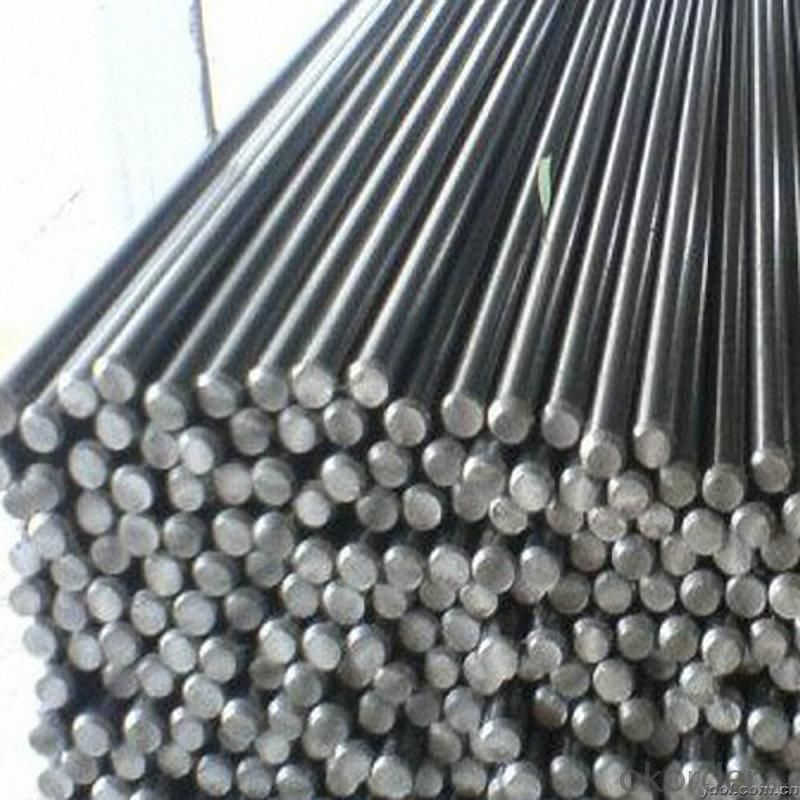

Round bar | Diameter(mm) | Length (mm) | ||||||
20~800 | 3000~9000 | |||||||
Plate | Thickness(mm) | Width (mm) | Length (mm) | |||||
Max:800 | Max:2200 | Max:9000 | ||||||
The specification can be customized. | ||||||||
Chemical Compositons | ||||||||
Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
GCr15 | 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.025 | 1.40-1.65 | ≤0.10 | ≤0.30 |
E52100 | 0.93-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.015 | 1.35-1.60 | ≤0.10 | ≤0.25 |
SUJ2 | 0.95-1.10 | 0.15-0.35 | ≤0.50 | ≤0.025 | ≤0.025 | 1.30-1.60 | ≤0.08 | ≤0.25 |
100Cr6 | 0.93-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.015 | 1.35-1.60 | 0.10 | |
Features of 52100 alloy steel | ||||||||
1, High carbon alloy steel | ||||||||
2, High degree of hardness | ||||||||
3, Good compressive strength and abrasion resistance | ||||||||
Typical Applications | ||||||||
1, Taps, gauges, swaging dies, ejector pins | ||||||||
2, Ball and roller bearings | ||||||||
3, Machine parts and for press tools | ||||||||
