Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:100 pc
Supply Capability:10000 pc/month
The DCCP-DPR series is designed for LED indoor and outdoor lighting application condition, such as road lighting, landscape lighting and billboard lighting etc. It has the feature of high efficiency, high control accuracy, portable volume and fully waterproof design. The load control mode can be set freely.
Features:
· Wide input voltage range：
DC9.5V—DC33V, compatible with 12V/24V full voltage range
·Input surge suppression function. Peak surge current is less than 15Amps
·Digital high precision constant current control and the control accuracy are better than ± 2%
·Max. conversion efficiency is 95%
· Adjustable rated output current in the rated power and current range
· Triangular timers output control , and dual exact timers output control ,and the output parameters can be programmed at each timer
· The RS232 serial port (TTL) for connection via the open standard Modbus protocol
· Fully encapsulated design, IP67 protection
Electronic protections:
· Load overload
· Overheating
· Input reversed polarity
· Load short circuit
Load control mode:
· Remote manual control (Default ON)
· Three time interval control
· Clock time control
Specification:

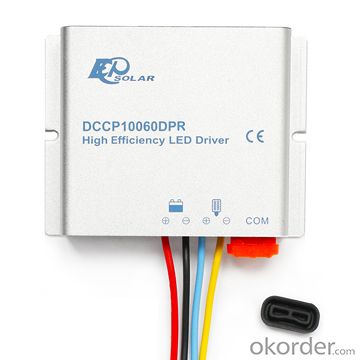

Model | DCCP10060DPR |
Nominal system voltage | 12 / 24VDC |
Input terminal voltage | 9.5V~33.0V |
Rated output power | 50W/12V , 100W/24V |
Rated output current | 3.3A |
Load current | 100W/Load voltage |
Max efficiency | 93%/12V; 95%/24V |
Output voltage range | Exceed voltage of input and < 60.0V |
Load open circuit voltage | 60.0V |
Power output adjustment time | <10s |
Self-consumption | ≤8.5mA(12V); ≤11.0mA(24V) |
Control accuracy | ±2% |
Communications | RS232（TTL） |
Enclosure | IP67 |
Overall dimension | 108.5x82x25.6mm, 4.27x3.22x1.01inches |
Mounting holes | 100(3.94) mm/inches |
Power cable | 1.5mm2 |
Net weight | 0.39kg |
Working temp. | -35℃~+55℃ |
Storage temp. | -35℃~+80℃ |
Humidity | ≤95% (NC) |
FAQ:
Q1. What is the voltage?
A1. Our 45/60A solar charge controller is 12/24/36/48V auto work.
Q2. What is the difference between MPPT&PWM?
A2. MPPT has higher efficiency, it can track the max power point and won't waste energy.
Q3. What is the efficiency of the MPPT controller?
A3. MPPT>99%, peak conversion efficiency>98%.
Q4. What is the waranty of product?
A4. 12 months.
Q5. What protection does your MPPT controller have?
A5. PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit.
