Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:400 pc
Supply Capability:290000 pc/month

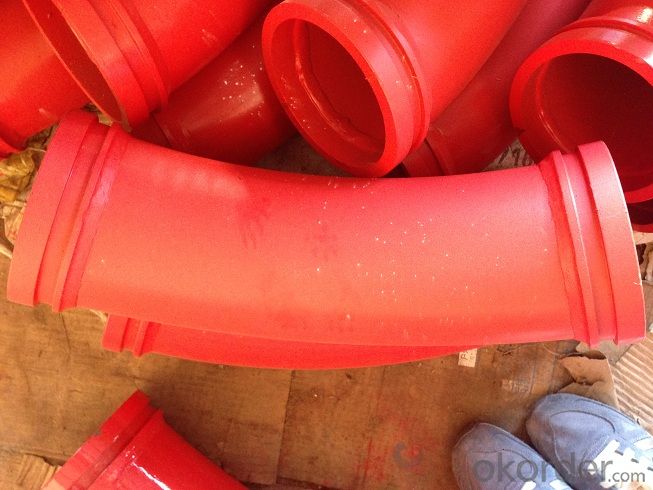

Concrete Pump elbow
1.product profile:The double layer concrete pump elbow is developed by ourselves through new
technology and process.
2.characteristic:the inner layer of this concrete pump elbow undergoes heat treatment,and then the rigitiry can reach 62-65HRC.
3.characteristic:the outer layer of the concrete pump elbow possess good toughness properties
to protect the inner layer,so the security of the elbow is improved.
4.life:the experiment done abroad shows that the life of our concrete pump elbow can reach 35000-50000cbm,got the customers' praise
5.Beside the double layer concrete pump elbow,we produce all kinds of concrete pump parts,
straight pipe hose flange coupling and so on.
| Wear-resistant Single or Double Concrete Pump Elbow | ||||||||
| Type | Singe Elbow | Double Elbow | ||||||
| Model | DN125 | DN150 | DN175 | DN125 | ||||
| Material | Casting Steel ,ST52 | Inside | 40Cr | Outside | ||||
| Size | R275*90° | R275*90°+110 | 36° | F2000 | R275*90° | R275*90°+110 | ||
| R275*45° | R275*90°+211 | R400*30° | A3000 | R275*45° | R275*90°+211 | |||
| R275*25° | R275*90°+411 | R400*45° | 471B | R275*25° | R275*90°+411 | |||
| R275*20° | R275*90°+424 | R400*30° | 571B | R275*20° | R275*90°+424 | |||
| R275*15° | R275*45°+170 | R488*90° | A1000 | R275*15° | R275*45°+170 | |||
| R180*90° | R275*45°+310 | R500*90 | C1000 | R180*90° | R275*45°+310 | |||
| R232*60° | R275*45°+310 | R280*90° | B2000 | R232*60° | R275*45°+310 | |||
| R240*36° | 20°Lengthen | R240*36° | 20°Lengthen | |||||
| R240*30° | 25°+740 | R240*30° | 25°+740 | |||||
| R240*15° | 40°Zoomlion | R240*15° | 40°Zoomlion | |||||
| R385*29° | R385*29° | |||||||
| R315*33° | R315*33° | |||||||
| Technic | Forged | |||||||
| Average life | 25,000cubic | 50,000cubic | ||||||
| Appliciation | Used in concrete transport in construction work | |||||||
