Introduction of CNBM Composite Mat:
Compound Base is made of recycled fabric material and fiberglass mesh. The fiberglass mesh is enforced to recycled fabric together, which aims at increasing the tensile strength.
Mainly used as substrates for water-proof roofing materials. It is characterized by corrosion resistance, dimensional stability, high tensile strength, water resistance, high porosity and easy saturation by bitumen.
Application of CNBM Composite Mat:
Carrier for asphalt shingle
Carrier for waterproofing membrane
Reinforcement for road construction
Other reinforcement usage
Technical Data:
|
Item |
Area Weight |
Mesh |
Tensile Strength |
Shrinkage (230℃) |
Roll Size |
Loading Quantity | |
|
MD |
CMD | ||||||
|
Unit |
g/m2 |
|
N/5cm |
N/5cm |
% |
m x m |
M2/40FCL |
|
Specification |
90g |
4X4 |
350 |
250 |
<1.0 |
1.0 x 1400 |
163800 |
|
100g |
5X5 |
400 |
200 |
<1.0 |
1.0 x 1300 |
152100 | |
|
110g |
5X5 |
500 |
450 |
<1.0 |
1.0 x 1250 |
142650 | |
|
120g |
6X6 |
550 |
350 |
<1.0 |
1.0 x 1200 |
140400 | |
|
120g |
6X6 |
550 |
500 |
<1.0 |
1.0 x 1200 |
140400 | |
|
130g |
7X7 |
600 |
500 |
<1.0 |
1.0 x 1150 |
134550 | |
|
140g-S |
5X5 |
700 |
600 |
<1.0 |
1.0 x 1100 |
128700 | |

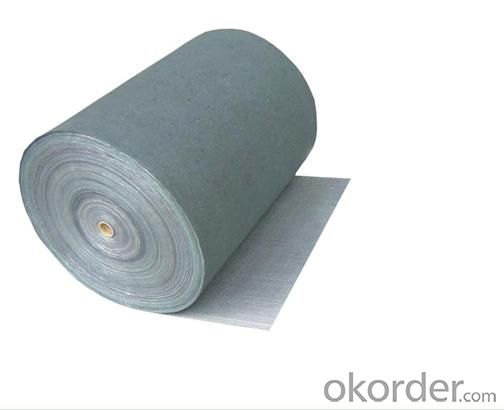

Compound Base in Roll

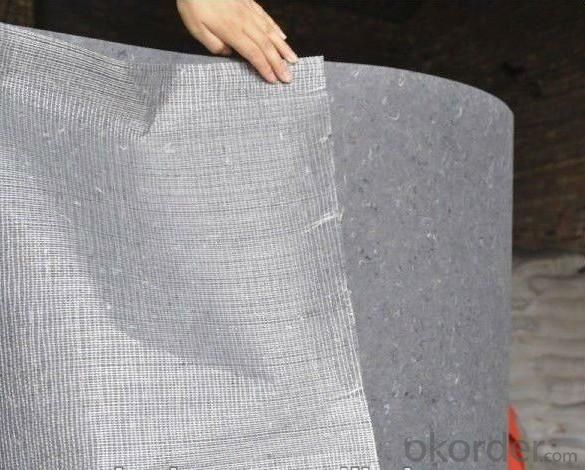

Compound Base-mesh inside
Remark:
140g-S is an improved product with higher dimensional stability and strength.
Package of CNBM Composite Mat:
Each roll is wrapped with PP woven bag, 117 rolls are put into 1x40FCL without wooden pallets. Based on quantity, special package is available.
