Vibration Absorber for Ceiling High Performance Vibration Absorption for Severe Noise

Loading Port:China main port

Payment Terms:TT OR LC

Min Order Qty:1 box

Supply Capability:1000 box/month

Product Description:

OFF vibration-absorbing component is composed of the ceiling vibration absorber, the wall body vibration absorber, the floor vibration absorber, the high polymer vibration-absorbing brick and the sound insulation and vibration damping adhesive.

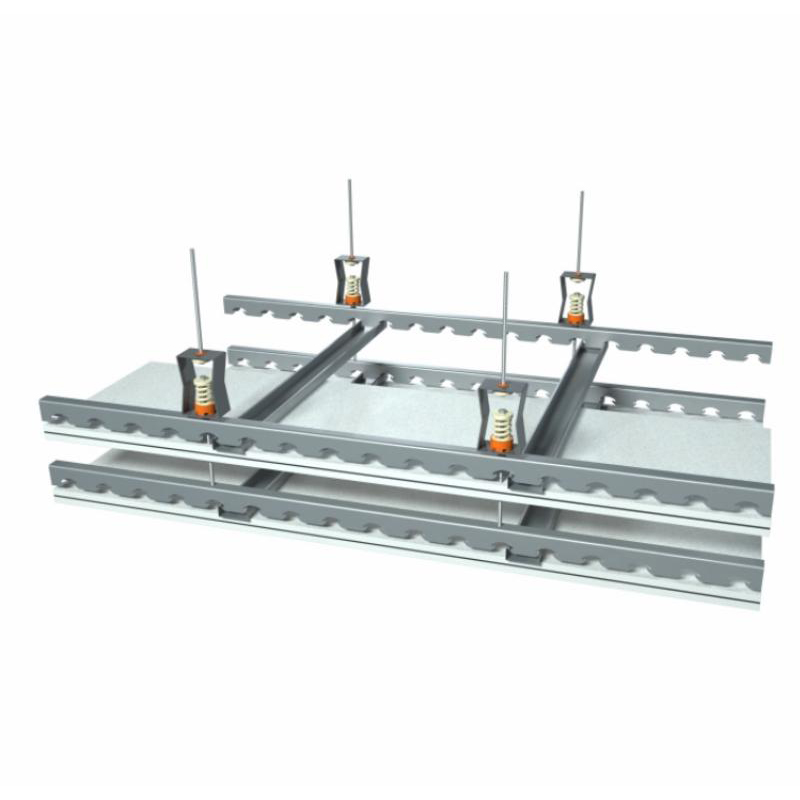

The ceiling vibration absorber is an effective way to cut off the structure-borne sound transmission of the suspended ceiling and the original base building ceiling.

The wall vibration absorber is suitable for installing and fixing the wall reinforced sound insulation structure layer to form the sound insulation layer between the sound wave irradiation surface and the original base wall.

OFF always refuses the non-standard components and the refurbishing adhesive for waveleng thbuster_ceiling(G50T)and waveleng thbuster_wall(G50Q) vibration-absorbing components, the independent mould is adopted to reinforce and thicken the metal components and the international standard components.

The damping rubber components are injected with 100% original adhesive, the aging resistance time and the damping coefficient are five times that of the refurbishing adhesive, thereby ensuring the permanency and safety of vibration damping and sound insulation effect in the aspect of hardware quality.



Model

G25TX/G50T/G50TX/G100TX Ceiling vibration absorber

Weight

G25TX 0.45kg/pc

G50T 0.38kg/pc

G50TX 1.3kg/pc

G100TX 1.7kg/pc

Dimension

G25TX 120*70*50mm
G50T 100*50*50mm
G50TX 140*90*60mm
G100TX 200*120*70mm

Center Load Capacity

G25TX 25kg/pc
G50T 50kg/pc
G50TX 50kg/pc
G100TX 100kg/pc

Packaging

Quantity





G25TX 60pcs/box

G50T 60pcs/box

G50TX 30pcs/box

G100TX 15pcs/box



High performance vibration absorption for severe noise.

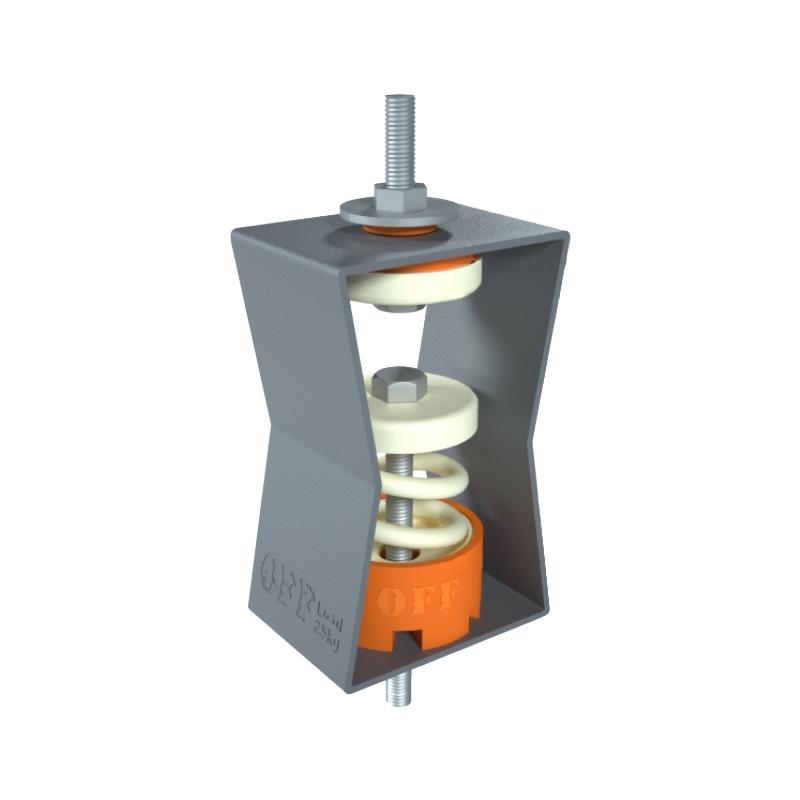

The Ceiling Vibration Absorber (G50T) can effectively reduce vibration and noise which can cause interference to other neighboring rooms.

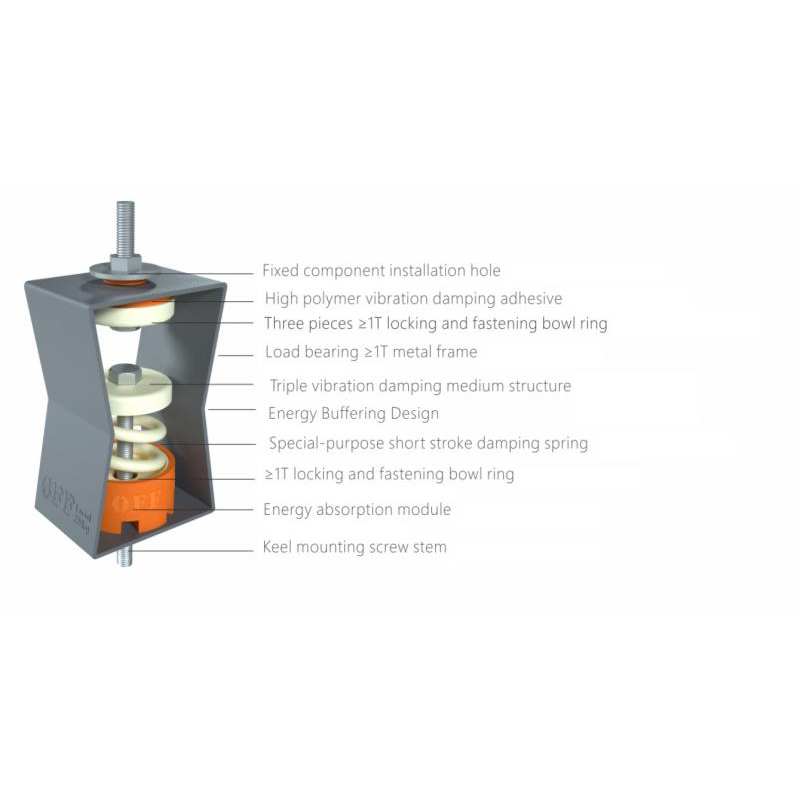

Its triple vibration damping medium structure ensures high performance results no matter where it is installed.

This is why it’s especially suited for places that are loud such as bars, disco halls, and entertainment rooms, to name just a few.



Simple application for best use.

Now you can easily stop low frequency sound (bass) that transmits through structure with this Ceiling Vibration Absorber.

With its easy installation feature, you can use its high polymer vibration damping adhesive to easily put it in place.

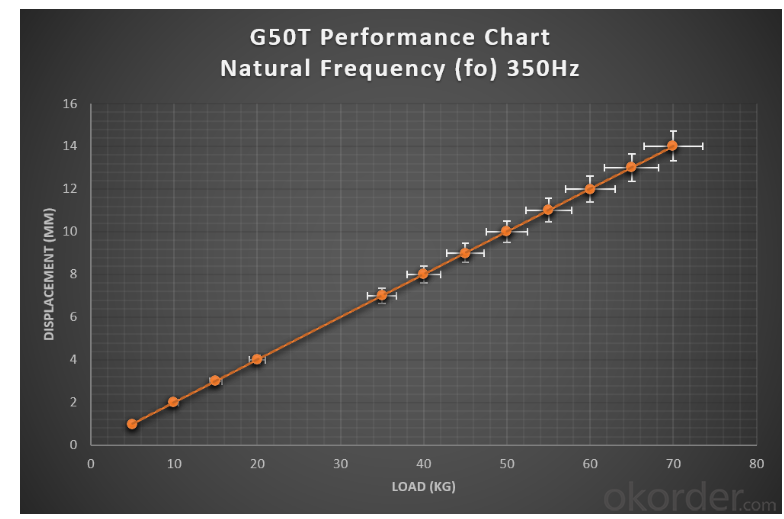

Test report
