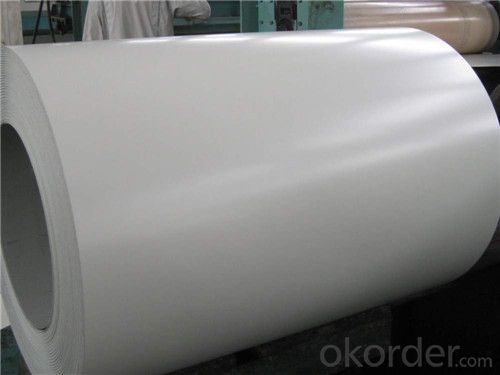

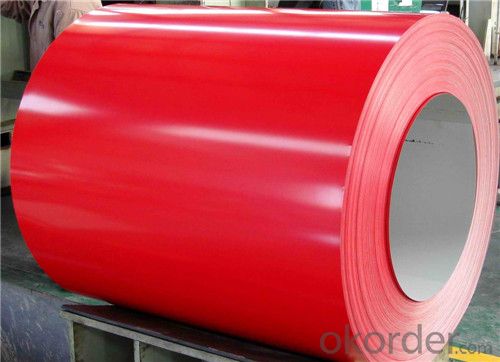

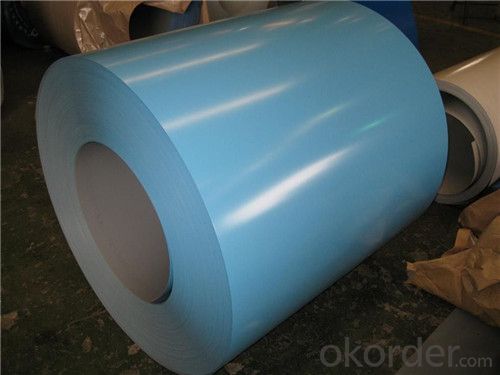

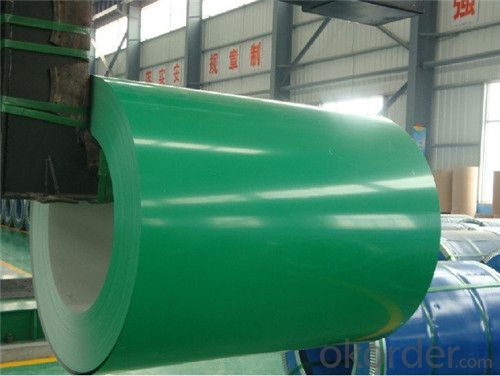

Color coated Galvanized Cold rolled Steel coil

Loading Port:Tianjin

Payment Terms:TT OR LC

Min Order Qty:25 m.t.

Supply Capability:300 m.t./month

Product Description:

Grade	Chemical composition %
	C	Si	Mn	P	S	Alta	Ti	Nb
	No more than	No more than	No more than	No more than	No more than	No less than	No more than	No more than
DC51D+Z,DC51D+ZF	0.1	---	0.5	0.035	0.035	---	---	---
(St01Z,St02Z,St03Z)	0.1	---	0.5	0.035	0.035	---	---	---


Grade	Mechanical properties						plating adhesion
	yield strength	tensile strength	n 90	r 90	Elongation %			Plating weight(g/m 2 )
	Mpa	Mpa	No less than	No less than	No less than			Bending diameter
								(a=thickness of slab)
					L 0 =80mm b=20mm
					Normal thickness mm
					≤ 0.7	>0.7		≤ 140/140	>140/140~	>175/175
					≤ 0.7	>0.7		≤ 140/140	175/175	>175/175
DC51D+Z(St01Z,St02Z,St03 Z), DC51D+ZF	---	270~500	---	---	20	22		0a	1a	2a
Exposure Test :						Salt Spray Test :
Exposure Test :						Salt Spray Test :
Environment	GI					Enviroment	GI Average Corrosion		AL-ZN Average Corrosion
	Average corrosion						GI Average Corrosion		AL-ZN Average Corrosion
	g/m2 /y	μ m/y					g/m2/y	um/y	g/m2/y	um/y
Tough Marine Climate	140	9.8				tough Marine Climate	140	9.8	16	2.2
Moderate Marine Climate	18	1.3				Modeerate Marine Climate	18	1.3	4	0.54
Industrial Climate	20	1.4				Industrial Climate	20	1.4	4.2	0.57
Countryside Climate	4	0.28				Countryside Climate	4	0.28	1.3	0.17
Plainness of hot dip galvanized substrate A.2.1 For steel sheet with a specified minimum yield strength less than 260MPa, the maximum plainness tolerance should be in conformity with the stipulations of Table A1.
MPa	Nominal width	Plainness (mm) for the nominal thickness as shown below
		Common precise PF.A			High-level precision PF.B
		<0.70	0.70~<1.60	1.60~3.0	<0.70	0.70~<1.60	1.60~3.0
<260	<1200	10	8	8	5	4	3
	1200~<1500	12	10	10	6	5	4
	≥1500	17	15	15	8	7	6
For steel sheet and steel strip with a specified minimum yield strength not less than 260MPa but less than 360MPa,and the grades of DC51+Z/Z DD51D+Z /S550GD+Z/ZF), the maximum plainness tolerance should be in conformity with the stipulations of Table A2. Table A2

MPa	Nominal width	Plainness (mm) for the nominal thickness as shown below
		Common precise PF.A			High-level precision PF.B
		<0.70	0.70~<1.60	1.60~3.0	<0.70	0.70~<1.60	1.60~3.0
260~<360	<1200	13	10	10	8	6	5
	1200~<1500	15	13	13	9	8	6
	≥1500	20	19	19	12	10	9
Thickness tolerance for hot dip galvanized substrate
Thickness tolerance for hot dip galvanized substrate
For steel sheet with a specified minimum yield strength less than 260MPa, the maximum thickness tolerance should be in conformity with the stipulations of Table A6.

Nominal thickness	Thickness tolerance while the widths are showed as follows
	Common precise PT.A			High-level precision PT.B
	≤1200	>1200~1500	>1500	≤1200	>1200~1500	>1500
0.30~0.40	±0.04	±0.05	±0.06	±0.030	±0.035	±0.040
>0.40~0.60	±0.04	±0.05	±0.06	±0.035	±0.040	±0.045
>0.60~0.80	±0.05	±0.06	±0.07	±0.040	±0.045	±0.050
>0.80~1.00	±0.06	±0.07	±0.08	±0.045	±0.050	±0.060
>1.00~1.20	±0.07	±0.08	±0.09	±0.050	±0.060	±0.070
>1.20~1.60	±0.10	±0.11	±0.12	±0.060	±0.070	±0.080
>1.60~2.00	±0.12	±0.13	±0.14	±0.070	±0.080	±0.090
>2.00~2.50	±0.14	±0.15	±0.16	±0.090	±0.100	±0.110
>2.50~3.00	±0.17	±0.17	±0.18	±0.110	±0.120	±0.130
For steel sheet and steel strip with a specified minimum yield strength not less than 260MPa but less than 360MPa, the thickness tolerance should be in conformity with the stipulations of Table A7.

Nominal thickness	Thickness tolerance while the widths are showed as follows
	Common precise PT.A			High-level precision PT.B
	≤1200	>1200~1500	>1500	≤1200	>1200~1500	>1500
0.30~0.40	±0.05	±0.06	±0.07	±0.035	±0.040	±0.045
>0.40~0.60	±0.05	±0.06	±0.07	±0.040	±0.045	±0.050
>0.60~0.80	±0.06	±0.07	±0.08	±0.045	±0.050	±0.060
>0.80~1.00	±0.07	±0.08	±0.09	±0.050	±0.060	±0.070
>1.00~1.20	±0.08	±0.09	±0.11	±0.060	±0.070	±0.080
>1.20~1.60	±0.11	±0.13	±0.14	±0.070	±0.080	±0.090
>1.60~2.00	±0.14	±0.15	±0.16	±0.080	±0.090	±0.110
>2.00~2.50	±0.16	±0.17	±0.18	±0.110	±0.120	±0.130
>2.50~3.00	±0.19	±0.20	±0.20	±0.130	±0.140	±0.150
For steel sheet and steel strip with a specified minimum yield strength not less than 360MPa, but less than or equal to 420 MPa, the thickness tolerance should be in conformity with the stipulations of Table A8.

Nominal thickness	Thickness tolerance while the widths are showed as follows
	Common precise PT.A			High-level precision PT.B
	≤1200	>1200~1500	>1500	≤1200	>1200~1500	>1500
0.30~0.40	±0.05	±0.06	±0.07	±0.040	±0.045	±0.050
>0.40~0.60	±0.06	±0.07	±0.08	±0.045	±0.050	±0.060
>0.60~0.80	±0.07	±0.08	±0.09	±0.050	±0.060	±0.070
>0.80~1.00	±0.08	±0.09	±0.11	±0.060	±0.070	±0.080
>1.00~1.20	±0.10	±0.11	±0.12	±0.070	±0.080	±0.090
>1.20~1.60	±0.13	±0.14	±0.16	±0.080	±0.090	±0.110
>1.60~2.00	±0.16	±0.17	±0.19	±0.090	±0.110	±0.120
>2.00~2.50	±0.18	±0.20	±0.21	±0.120	±0.130	±0.140
>2.50~3.00	±0.22	±0.22	±0.23	±0.140	±0.150	±0.160
For steel sheet and steel strip with a specified minimum yield strength not less than 420MPa, but less than or equal to 900 MPa, the thickness tolerance should be in conformity with the stipulations of Table A9.

Nominal thickness	Thickness tolerance while the widths are showed as follows
	Common precise PT.A			High-level precision PT.B
	≤1200	>1200~1500	>1500	≤1200	>1200~1500	>1500
0.30~0.40	±0.06	±0.07	±0.08	±0.045	±0.050	±0.060
>0.40~0.60	±0.06	±0.08	±0.09	±0.050	±0.060	±0.070
>0.60~0.80	±0.07	±0.09	±0.11	±0.060	±0.070	±0.080
>0.80~1.00	±0.09	±0.11	±0.12	±0.070	±0.080	±0.090
>1.00~1.20	±0.11	±0.13	±0.14	±0.080	±0.090	±0.110
>1.20~1.60	±0.15	±0.16	±0.18	±0.090	±0.110	±0.120
>1.60~2.00	±0.18	±0.19	±0.21	±0.110	±0.120	±0.140
>2.00~2.50	±0.21	±0.22	±0.24	±0.140	±0.150	±0.170
>2.50~3.00	±0.24	±0.25	±0.26	±0.170	±0.180	±0.190
Width tolerance
Width tolerance
Nominal width	Width tolerance		Width tolerance of the hot-dip zinc, hot-dip alu-zinc coated alloy steel sheets should conform to relevant parameters designed by A12.
	Common precise PW.A	High-level precision PW.B
≤1200	0~+5	0~+2
>1200~1500	0~+6	0~+2
>1500	0~+7	0~+3
