Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1000 PCS/month

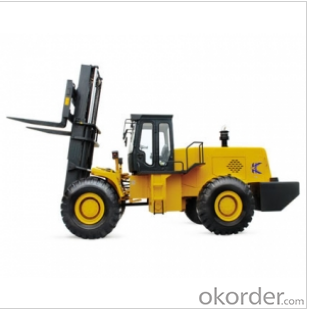

China Durable & Cheap 8150T Rough Treeing Forklift
Model NO.:8150T
Power:Diesel Engine
Load Capacity:1T - 5T
Load center:500mm
Lift height:3000~5000mm
Export Markets:Global
Trademark:ANLI
Packing:with Steel Pallet
Origin:China
Production Capacity:200 Sets
Anli3.5T-T Disel Forklift
Product Feature:
1,High precision welding and assembling ,
make suer excellent performance of the vehicle.
2. Wide view mast to improve work efficiency and safety
3. Humanization design,large operation space and driving room,
much alleviate fatigue of operator
4. Full floating overhead guard and buffering
device to decrease vehicle vibration.
5. High positioned inflow system, prevent dust
being taken in and insure reliable use of engine
Hydraulic system to make sure stable transmission of the vehicle
6. Flexible and easy steering by cross cylinder steering system.
Specification | |||||
General | Model | 8150T | |||
Power type | Diesel | ||||
Rated loading capacity | Kg | 16,000 | |||
Load center | mm | 800 | |||
Dimensions | Lift height | mm | 3,000 | ||
Free lift height | mm | 195 | |||
Fork size | mm | 1,600×180×100 | |||
Fork distance | Min/Max. | mm | 400/1,480 | ||
Mast tilt angle | Front/After | deg | 8/12 | ||
Front overhang | mm | 950 | |||
Overall dimensions | Overall length | mm | 75,000 | ||
Overall width | mm | 2,600 | |||
Mast lowered height | mm | 2,980 | |||
Mast extended height | mm | 4,380 | |||
Overhead guard height | mm | 32,000 | |||
Turning radius | mm | 5,500 | |||
Min. right angle aisle width | mm | 3,500 | |||
Performance | No load/Full load | Traveling Speed | km/h | 25/24 | |
Lifting speed | mm/sec | 320/270 | |||
Max. grade ability | % | 25 | |||
Max. Pull force(full load) | KN | 95 | |||
Self-weight | kg | 23,800 | |||
Chassis | Tread | Front | 26.5-25 | ||
Rear | 26.5-25 | ||||
Tread width | Front | mm | 1,500 | ||
Rear | mm | 1,550 | |||
Wheelbase | mm | 3,900 | |||
Min. Ground clearance (No load/Full load) | Mast | mm | 230/220 | ||
Frame | mm | 245/240 | |||
Drive unit& control | Battery | V/AH | 24/100×2 | ||
Engine | Manufacture | WD10G220E11 | |||
Manufacture | WEICHAI | ||||
Rated power | Kw/rpm | 162/2,300 | |||
Rated torque | N.m/rpm | 1,460/2,400 | |||
NO. of cylinder | 6 | ||||
Bore × Stroke | mm | 126×130 | |||
Displace ment | L | 9.726 | |||
Fuel tank capacity | L | 200 | |||
Transmissions | Type | L | Hydraulic | ||
Shift Front/rear | 2/1 | ||||
