Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:1 pc
Supply Capability:9999 pc/month
Quick Details
Standard or Nonstandard: | Standard | Structure: | Check | Pressure: | Medium Pressure |
Power: | Hydraulic | Material: | Casting | Temperature of Media: | Medium Temperature |
Media: | Water | Port Size: | DN50-400 | Place of Origin: | China (Mainland) |
Model Number: | H76X | Brand Name: | CMAX | Application: | General |
Name: | Single disc wafer type check valve | Standard: | API,DIN,JIS,BS, | Medium: | wafer,oil,gas,Acid,alkali |
Valve body material: | cast iron,Stainless steel,brass | Size: | 2"~16" or DN50~DN400 | Advantage: | no leakage |
Packaging & Delivery
Packaging Details: | Veneer board boxes |

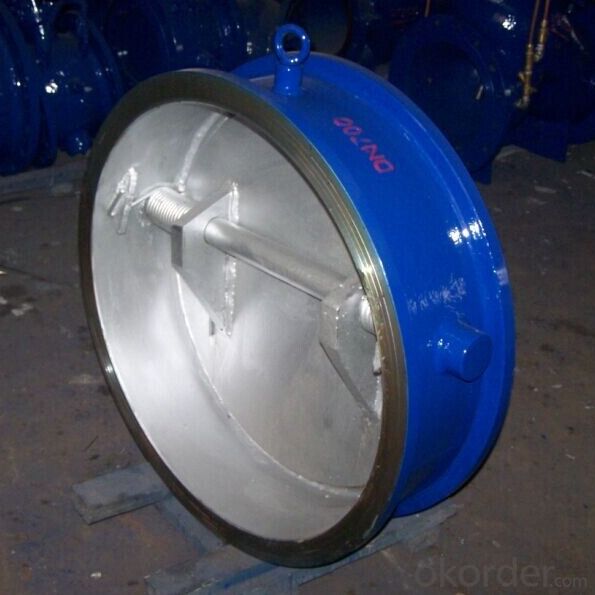

Name:Wafer type check valve,single door check valve,wafer type swing check valve.
Valve body:cast iron ,GG25,GGG40,CF8M
1.Working pressure:1.6Mpa
2.Testing :API598 DIN3230
3.Flange standard
DIN2501 PN10/16
BS4504 PN10/16
BS10 TABLE "D"/"E"
JIS2220 10K/16K
ANSI125/150
4.Face to face
ANSI125/150
DIN3203 K3-1999
Technical Date | Material Specification | ||
Nominal Diameter | DN40-DN1000 | Valve Body | Cast Iron or Ductile Iron |
Nominal Pressure | PN10/PN16 | Valve Disc | Cast Iron or Ductile Iron or Stainless Steel |
Operation Temperature | -40°C~225°C | ||
Flange Driling Standard | EN 1902-2 PN10/16 | Seal Material | EPDM OR NBR |
Suface Treatment | Painting | Valve Spring | Stainless Steel |
