Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:200 kg
Supply Capability:5000000 kg/month
| Type: | Round Rope | Application: | Heat Insulation | Thickness: | 3~60 (mm) |
| Width: | 3~60(mm) | Length: | 10~30 (m) | Grade: | ST (Standard) |
| Chemical Composition: | Al2O3+SiO2 | Ultimate Strength (≥ MPa): | 0.09 | Working Temperature: | 650 ~ 1000 C |
| Fiber Diameter: | 2~4 (um) | Thermal Conductivity: | 0.09~0.20 (W/m.k) | Shrinkage (1800℉, 3h): | 0.3% |
| Place of Origin: | China (Mainland) | Brand Name: | Model Number: | C101TG/TS | |
| Certificate: | ISO9001:2000 | Twisting strands: | 1 or multi-stand | Reinforcement: | Glass filament / Glass filament + s.s.wire |
| Packaging Detail: | Rolls,Cartons |
| Delivery Detail: | 10~ 15 days |

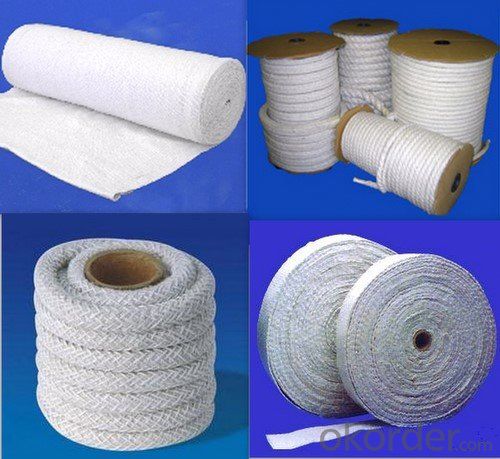

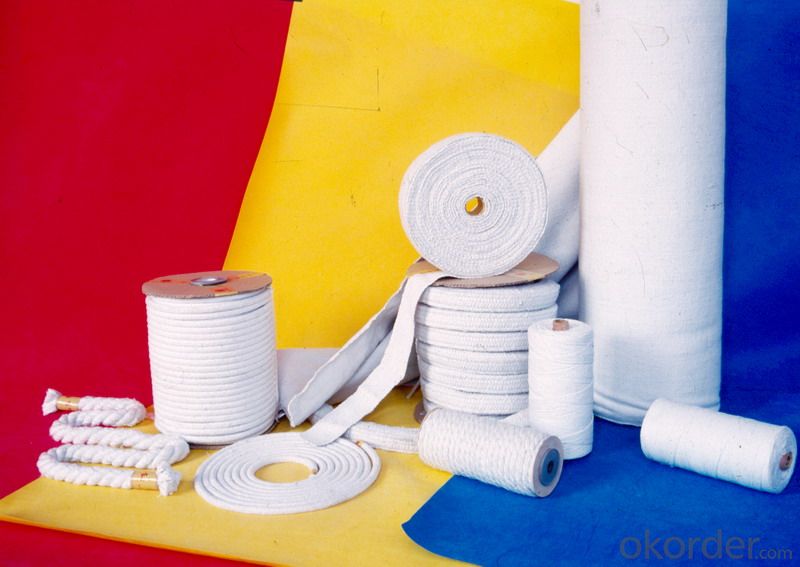

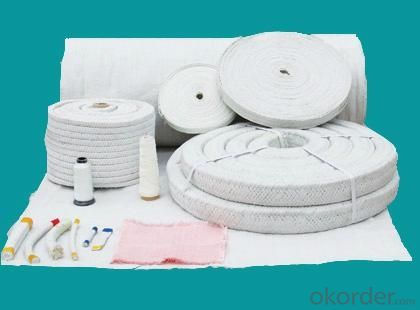

Ceramic Fiber Ropes
1.Ceramic Fiber Twisted Rope
2.Ceramic Fiber Round Braided Rope
3.Ceramic Fiber Square Braided Rope
Ceramic Fiber Ropes
Description
It includes three styles: twisted, round braided and square braided. All are made of our high quality ceramic fiber yarns. They can be used for high temperature applications up to 1000° C. The rope is reinforced with fiberglass filament, and optional stainless steel wire. It contains a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property.
Ceramic Fiber Twisted Rope
Ref. No. | Reinforcement | Temp. resistance (C degree) | Diameter (mm) | Twisting strands |
C101TG | Glass filament | 650 | 3 up to 60 | 1 or multi-strand |
C101TS | Glass filament+s.s.wire | 1000 | 3 up to 60 | 1 or multi-strand |
Ceramic Fiber Round Braided Rope
Ref. No. | Reinforcement | Temp. resistance (C degree) | Diameter (mm) | Braiding way |
C102G | Glass filament | 650 | 5 up to 60 | 2 or 4 tracks |
C102S | Glass filament+s.s.wire | 1000 | 5 up to 60 | 2 or 4 tracks |
Ceramic Fiber Square(rectangular) Braided Rope
Ref. No. | Reinforcement | Temp. resistance (C degree) | Diameter (mm) | Braiding way |
C103G | Glass filament | 650 | 5 up to 60 | 2 or 4 tracks |
C103S | Glass filament+s.s.wire | 1000 | 5 up to 60 | 2 or 4 tracks |
Application:
· Furnace repair
· Furnace, kiln, reformer and boiler linings
· Furnace door linings and seals
· Reusable insulation for steam and gas turbines
· High temperature insulation for kiln and furnace
· Primary reformer heater insulation
· High temperature insulation gaskets
· Expansion joint seals
· Glass furnace crown insulation
· Field steam generator lining
· Nuclear insulation applications
· Thermal reactor insulation
· Flexible high temperature pipe insulation
· Investment casting mold wrapping
· Removable casting mold wrapping
· Removable insulating blankets for stress relieving welds
· Pressure and cryogenic vessel fire protection
· Soaking pit seals
· High temperature filtration
· Incineration equipment and stack linings
· Petrochemical process heater fiber lining
· Heat treating furnace or intermittent (shuttle) kiln lining
· General furnace backup insulation
· Heat seals for kiln car or furnace door
· Electrical insulator
