Introduction

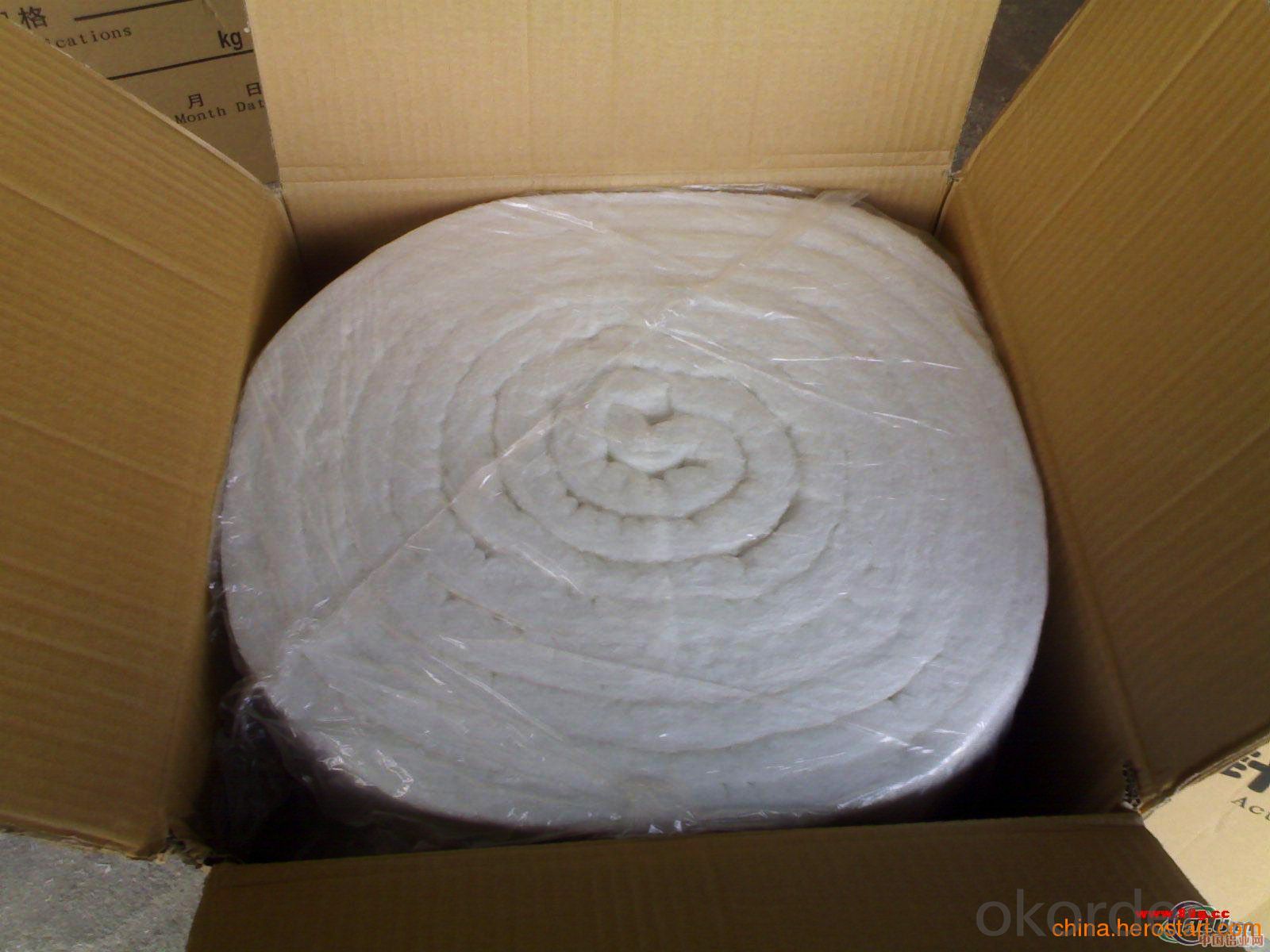

Ceramic Fiber Blanket is a great energy saving product because of its superior insulating properties andadvantages of low heat storage and complete resistance to thermal shock. It is widely used as industrial insulation, high temperature insulation and in a variety of heat processing applications. Insulation Blanketis produced from high strength spun ceramic fibers and is needed to provide exceptional handling or construction strength. KT Refractories stocks large amounts of High quality Insulation Blanketin Houston TX: 2300°F or 2600°F Insulation Blanketwith different width or densities, or thickness.
Specification
Type | Common | Standard | Pure | High Aluminum | Zirconium |
Classification Temperature(℃) | 1100 | 1260 | 1260 | 1360 | 1430 |
Work Temperature(℃) | <1000< span=""> | 1050 | 1100 | 1200 | 1350 |
Color | White | Pure white | Pure white | Pure white | Pure white |
Density (kg/m3) | 96 / 128 | 96 / 128 | 96 / 128 | 128 / 160 | 128 / 160 |
Shrinkage on heating (%) (24 hours, density as 128/m3) | -4 (1000 ℃) | -3 (1000 ℃) | -3 (1100 ℃) | -3 (1250 ℃) | -3 (1350 ℃) |
Thermal conductivity by different temperature (w/m.k) (density as 128kg/m3) | 0.09(400 ℃) 0.176(800 ℃) | 0.09(400 ℃) 0.176(800 ℃) | 0.09(400 ℃) 0.176(800 ℃) 0.22(1000 ℃) | 0.132(600 ℃) 0.22(1000 ℃) | 0.76(600 ℃) 0.22(1000 ℃) |
Tensile Strength (Mpa) (density as 128kg/m3) | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 |
Size | Thickness: 10mm, 20mm, 30mm, 50mm Diameter: 460mm Width: 610mm, 1220mm Length: 1500mm, 7200mm, 5000mm, 3600mm (Other sizes and shapes on request.) | ||||
Chemical Composition (%) | |||||
Type | Common | Standard | Pure | High Aluminum | Zirconium |
Al2O3 | 44 | 46 | 47--49 | 52-55 | 39-40 |
Al2O3 + SiO2 | 96 | 97 | 99 | 99 | - |
Al2O3 + SiO2 + Zro2 | - | - | - | - | 99 |
Zro2 | - | - | - | - | 15-17 |
Fe2O3 | <1.2< span=""> | <1.0< span=""> | 0.2 | 0.2 | 0.2 |
Na2O + K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 |
Feature
Good anti-stripping performance
Good Sound-absorbing performance
Non-brittleness material, good flexibility
Excellent machining performance
Resistance to wind and erosion, long service life
Excellent heat insulation, fire prevention, sound absorption performance
Low thermal conductivity, low thermal capacity
Excellent thermal stability and good resistance to heat shock
Excellent tensile strength
Application
The industry kiln, heating device, high temperature pipe lining
Power boiler, gas turbine and heat and nuclear power insulation
Chemical industrial high temperature equipment and heating equipment lining
Fireproof and heat insulation for high building
High-grade household appliances thermal insulation device
High temperature filtration etc.
