Ceramic Fiber Blanket for Glass Melting Tank
Composite of Ceramic Fiber Blanket for Glass Melting Tank
Ceramic Fiber Blanket for Glass Melting Tank is made from high quality clay, high purity alumina and silica oxides by spun or blown process.
Types of Ceramic Fiber Blanket for Glass Melting Tank: ordinary type, standard form, high-purity type, high-alumina type and containing zirconium type. Different types of products used different materials. Performance of Ceramic Fiber Blanket for Glass Melting Tank also has difference, and they are suitable for different working temperatures.
Description of Ceramic Fiber Blanket for Glass Melting Tank
It is a needled blanket made from our ceramic bulk fiber which can withstand temperature up to 1400C degree(depends on different quality grades). The blanket is lightweight, flexible, and available in a wide variety of thicknesses, widths and densities.
Main Features of the Ceramic Fiber Blanket for Glass Melting Tank
◆Low thermal conductivity
◆High tensile strength
◆Resilient to thermal shock
◆Corrosion resistance
Application of Ceramic Fiber Blanket for Glass Melting Tank
◆Petrochemical process heater refractory fiber lining
◆General furnace backup insulation
◆Heat treating furnace or intermittent(shuttle) kiln hot face lining
◆Electrical insulator
◆Heat seals for kiln car or furnace door
◆High temperature acoustic
◆Fire protection

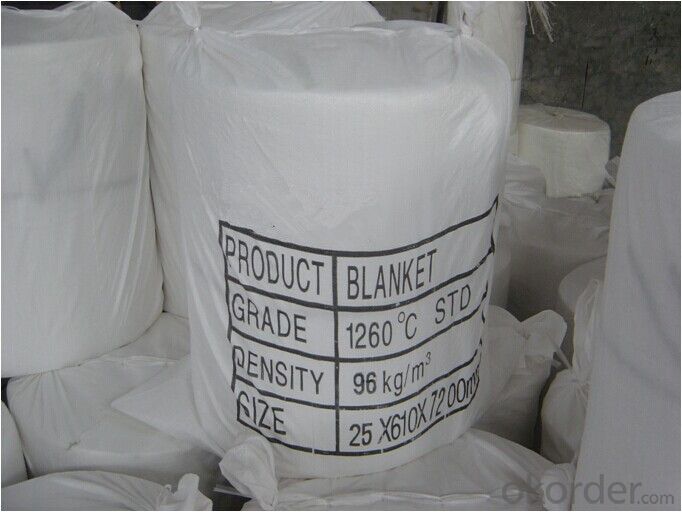

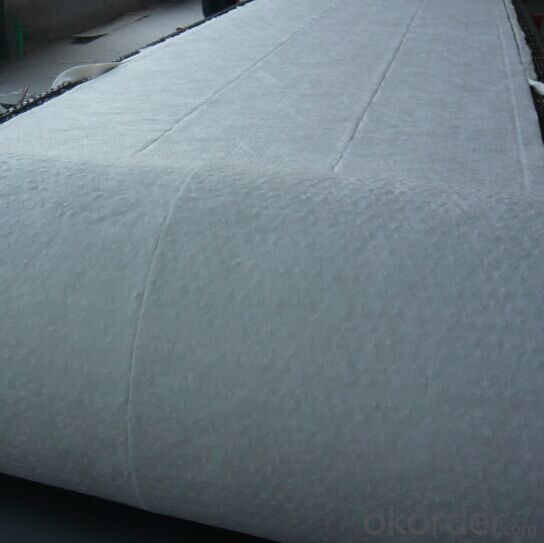

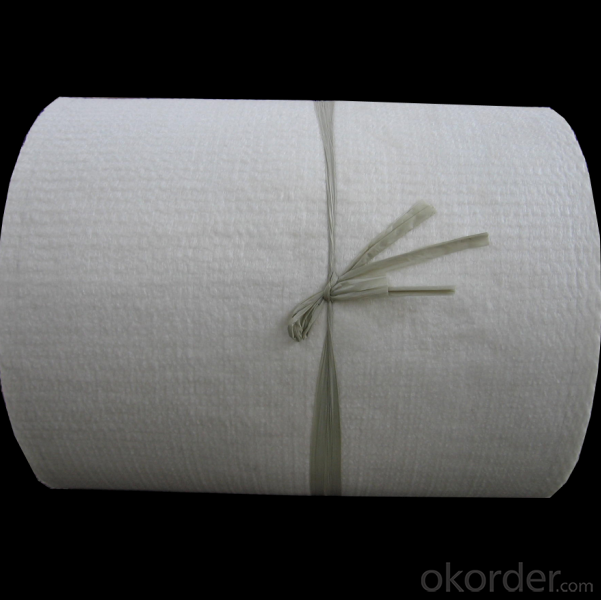

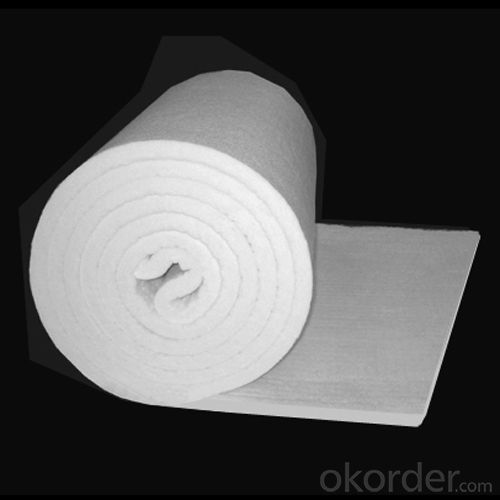

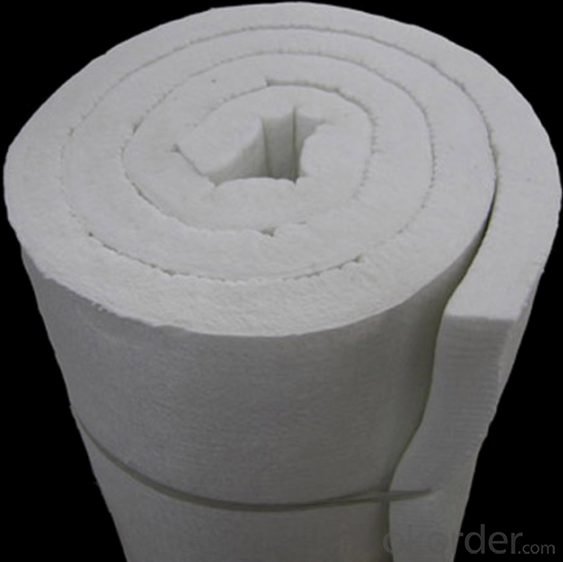

Ceramic Fiber Blanket for Glass Melting Tank Images
Ceramic Fiber Blanket for Glass Melting Tank Specification
Type | STD | HP | HA | HZ | |
Classification Temperature (°C) | 1260 | 1260 | 1350 | 1430 | |
Working Temperature (°C) | 1050 | 1100 | 1200 | 1350 | |
Color | Spotlessly white | spotlessly | spotlessly | spotlessly | |
white | white | white | |||
Density (kg/m3) | 64,96, | 64,96, | 64,96, | 64,96, | |
128,160 | 128,160 | 128,160 | 128,160 | ||
Shrinkage on heating (%) | ≤3 | ≤3 | ≤3.5 | ≤3.5 | |
(24 hours, density as 128/m3) | (1150°C) | (1250°C) | (1300°C) | (1350°C) | |
Thermal conductivity by different temperature (w/m.k) (density as 128kg/m3) | 0.15(800°C) | 0.176(800°C) | 0.18(1000°C) | 0.23(1000°C | |
0.17(1000°C) | 0.22(1000°C) | 0.26(1200°C) | 0.31(1200°C) | ||
Tensile strength (MPa) | 0.04 | 0.04 | 0.04 | 0.04 | |
(density as 128kg/m3) | |||||
Chemical | AL2O3 | 45-47 | 45-46 | 53-55 | 38-54 |
composition | AL2O3+SIO2 | 98.5 | 99 | 99 | 82-90 |
(%) | ZrO2 | - | - | - | 10-18 |
FAQ of Ceramic Fiber Blanket for Glass Melting Tank
Q1:Are you a manufacture or trader?
A:Factory+trade(mainly factories,at the same time,we operates other related products).
Q2:Can we visit your factory?
A:Sure,welcome at any time,seeing is believing.
Q3:What's the MOQ of trial order?
A:No limit,We can offer the best suggestions and solutions according to your condition.
Q4:Is your company accept customization?
A:We have own factory and excellent technical team,and we accept OEM service.
Q5:How about your company's certification?
A:ISO9001 and Test Report,also we could apply other necessary certification.
