Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:200 pc
Supply Capability:50000 pc/month
1. PRODUCT DESCRIPTION
Size | 300 x 300mm, 300x450mm, 300 x 600mm, 300*900mm |
Material | Ceramic Tile |
Usage | Interior Tiles |
Function | Acid-Resistant, Antibacterial, Heat Insulation |
Surface Treatment | Glazed Tiles |
Color Family | white, grey, black |
Tile Type | Wall Tiles |
Minimum Order Quantity | Depends on the stock or 1 Twenty-Foot Container |
Packaging Details | Wooden pallets & Paper box |
Delivery Time | 7-15 days after Deposit |
Payment Terms | L/C,D/A,D/P,T/T, Western Union, Money Gram |
Supply Ability | 80000 Square Meters per Day |
2. Technical specifications:
Test item | GB/T4100.1-2010 | Test result |
Length tolerence | ±0.5 | ±0.5 |
Side straight | ±0.3 | ±0.3 |
Right angle | ±0.2 | ±0.5 |
Surface quality | A minimum of 95% of the tiles shall be free from visible defects. | A minimum of 95% of the tiles shall be free from visible defects. |
Water absorption | Mean value E> 10% | >8% |
Breaking strength | Thickness is ≥7.5mm≥600N | Thickness is ≥7.5mm≥600N |
Modulus of rupture | Mean value≥7.5mm≥15 | Meab value≥15 |
3. Production process:
1. Technology department: Modify the color tones, and press the production
2. Cut Aniseed: According to the demand of production which suitable glass of requested size of the glass material
3. Printing: Printing Line
4. According to the production requirement to cut into particular specifications
5. Firing
6. Semi finished products warehouse: stored separately semi finished product
7. Paving: According to the production requirements of paving
8. Drying: Put into drying line to finished
9. Packing: Product packing, and stor
4. Package Details:
SIZE MM | PCS/CTN | KG/CTN | SQM/CTN | CTN/PALLET |
300X300 | 12 | 18.5 | 1.08 | 54 |
400x400 | 10 | 28 | 1.6 | 48 |
450x450 | 6 | 23 | 1.215 | 40 |
500x500 | 7 | 31.5 | 1.75 | 28 |
300x600 | 8 | 30 | 1.44 | 32 |
600x600 | 4 | 30 | 1.44 | 32 |

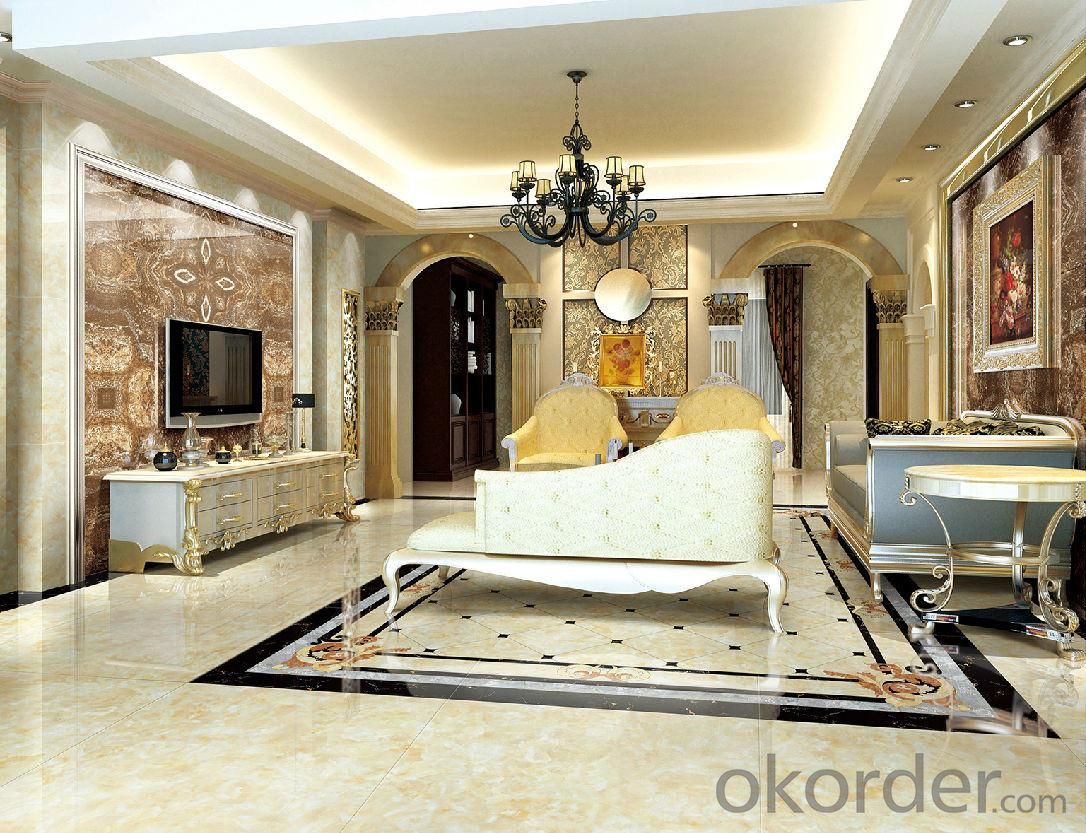

5. REFERENCE PICTURES
