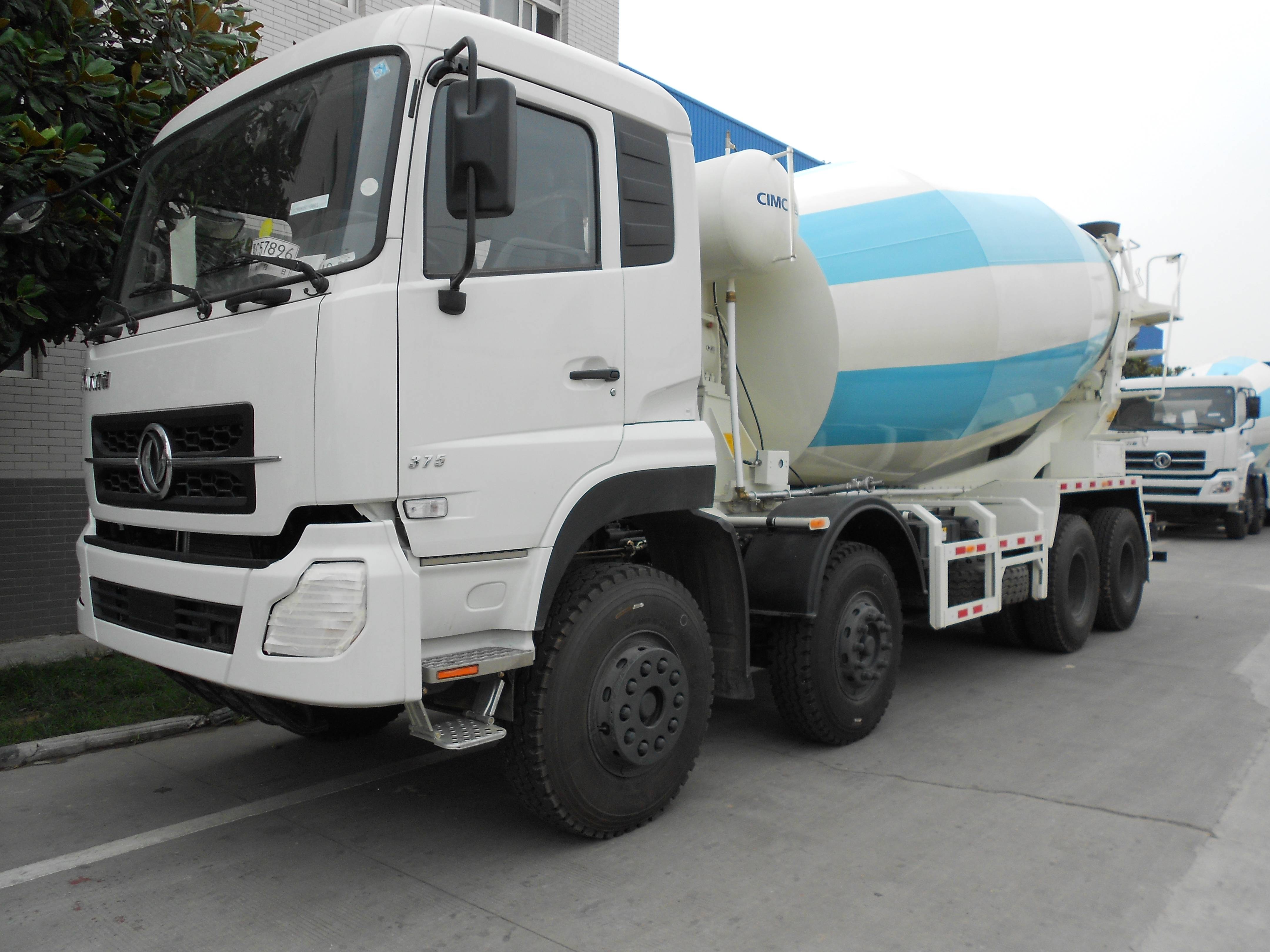

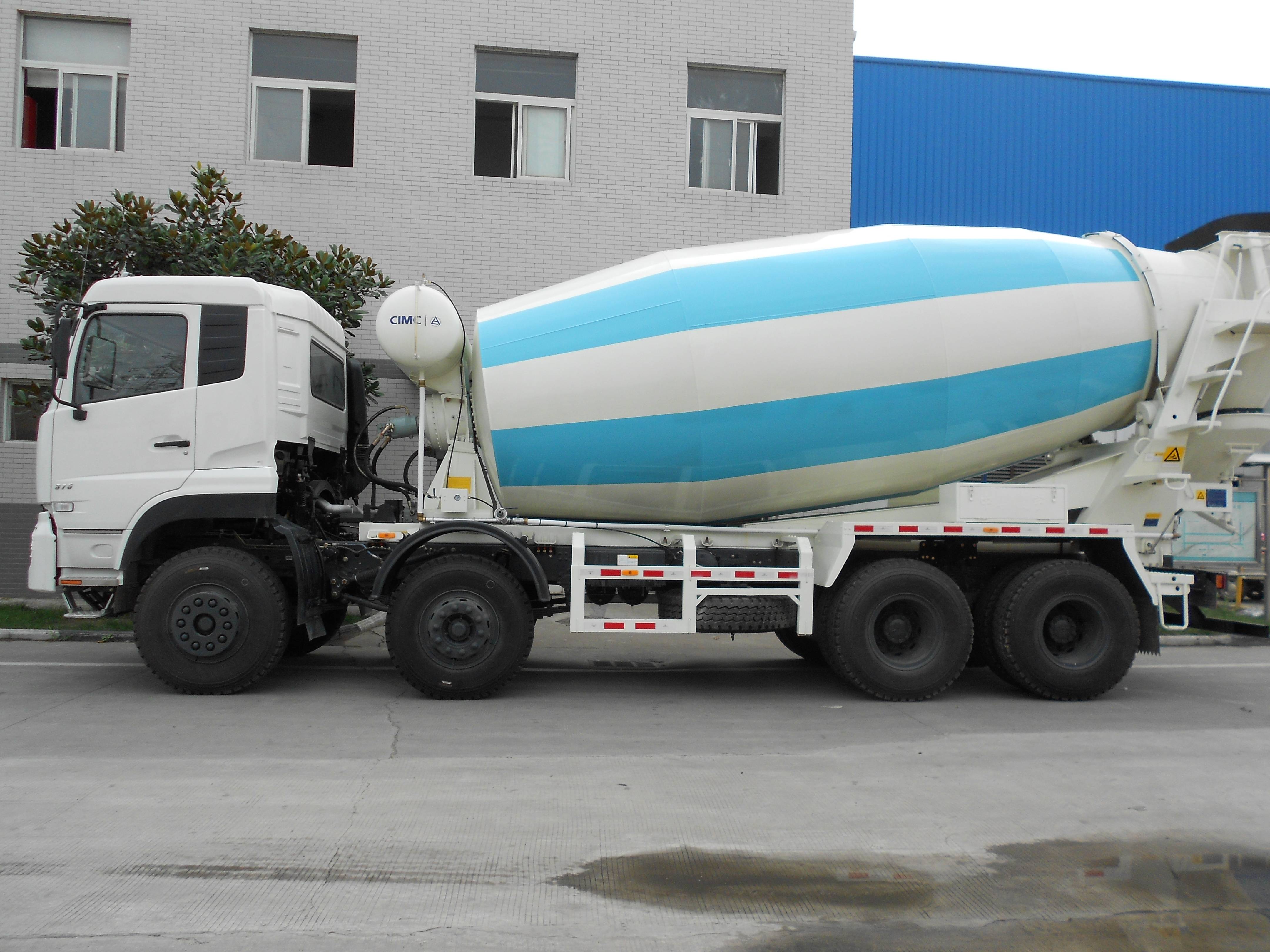

15m3 concrete mixer truck(Dongfeng chassis)

Model: CLY5310GJB

Overall size (mm)

10950(L)*2500(W)*3920 (H)

Tank body dimension(mm)

6724*2450

Wheel base (mm)

1850+3400+1350

Tread f/r (mm)

2027/1820

Max. Speed (km/h)

89

Chassis

Manufacturer

Dongfeng  motorcorporation

Model

DFL1310A

Steering system

Integral  hydraulic power steering

Transmission

Manual

Brake system

Dual circuit air-pressure braking system

High  pressure oil pump

ARK pump

Hydraulic motor

ARK motor

Reducer

TOP

Water  supply system

Water  supply by air pressure (450L water tank), homemade sprinkler.

Air-condition

Dongfeng  motor special air condition

Engine

Model

dCi375-30

Max. Power (hp)

375

Engine type

L6,  water cooled, super-charged inner-cooler ,diesel engine

Fuel type

Diesel oil

Tank body parameter

Mixing volume(m³)

15, optional for 12-16m³

Feeding speed

More  than or equal to 3m³/min

Unloading speed

More than or equal to 2m³/min

Discharge residue rate

<0.5
