Loading Port:China Main Port
Payment Terms:TT or L/C
Min Order Qty:1 unit
Supply Capability:100 Unit Per Month unit/month
|
Model |
ZLJ5331THB42 | |
|
Pumping system |
Max. theo. outputm3/h |
120 |
|
Max. output pressure of the concrete Mpa |
6.5 | |
|
Rated working pressureMpa |
32 | |
|
min-1 Pumping frequency |
22 | |
|
Hopper capacityL |
550 | |
|
Feeding heightmm |
1540 | |
|
Mode of the hydraulic system |
Closed/open | |
|
Mode of the distribution valve |
S valve | |
|
Cylinder diameter×strokemm |
130×2100 | |
|
Cylinder diameter×strokemm |
230×2100 | |
|
Cooling of the hydraulic oil |
Air-cooled | |
|
Recommended collapsed slumpcm |
12~23 | |
|
Max. dimension of the aggregatesmm |
40 | |
|
booms |
Max. pumping heightm |
41.6 |
|
Max. pumping radiusm |
37.6 | |
|
Max. pumping depthm |
29.5 | |
|
Slewing angle |
365° | |
|
Number of the booms section |
5 | |
|
Length of each boommm |
8150/7220/7270/7480/7480 | |
|
Angle of unfolding the booms |
90°/180°/180°/240°/235° | |
|
Diameter of the delivery pipemm |
125 | |
|
Length of the end hosemm |
3000 | |
|
Chassis and whole vehicle |

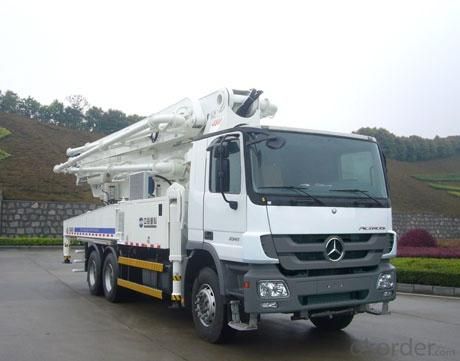

Chassis model |
Actros 3341 |
|
Drive mode |
6×4 | |
|
wheelbasemm |
4500+1350 | |
|
Wheel gauge (front/rear)mm |
2034/1804 | |
|
Modle of the tyre |
315/80R22.5 | |
|
Modle of the engine |
OM501LA.Ⅲ/17 | |
|
Max. power of the enginekW/(r/min) |
300/1800 | |
|
Max. torque of the engineN.m/(r/min) |
2000/1080 | |
|
Displacement of the enginecc |
11946 | |
|
Type of the fuel |
Diesel | |
|
Capacity of the fuel tank L |
400 | |
|
Standard of the exhaust emission |
EUROⅢ | |
|
Max. speed of the whole vehiclekm/h |
85 | |
|
Mass of the whole vehiclekg |
32700 | |
|
Overall dimension of the whole vehicle (length×width×height)mm |
11720×2500×4000 | |
|
others |
Type of lubrication |
Auto lubrication of energy-saving type |
|
Capacity of the hydraulic oil tank L |
650 | |
|
Type of control |
manual+ remote control | |
|
Max. pressure of the water tankMpa |
4 | |
|
Capacity of the water tankL |
450 | |
|
Mode of cleaning the concrete pipes |
Water washing/dry cleaning | |
