Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:1 unit
Supply Capability:1 unit/month
Forklift Description:
Articulated Counterbalance Trucks
These are, unlike most lift trucks, front wheel steer, and are a hybrid VNA (Very Narrow Aisle) truck designed to be both able to offload trailers and place the load in narrow aisle racking. Increasingly these trucks are able to compete in terms of pallet storage density, lift heights and pallet throughput with Guided Very Narrow Aisle trucks, while also being capable of loading trucks, which VNA units are incapable of doing.
Guided Very Narrow Aisle Trucks
These are rail or wire guided and available with lift heights up to 40' non-top-tied and 98' top-tied. Two forms are available; 'man-down' and 'man-riser' where the operator elevates with the load for increased visibility or for multilevel 'break bulk' order picking. This type of truck, unlike Articulated Narrow Aisle Trucks, requires a high standard of floor flatness.
Omni-directional Trucks
Omni-directional technology (such as Mecanum wheels) can allow a forklift truck to move forward, diagonally and laterally, or in any direction on a surface. Omni-directional wheel system is able to rotate the truck 360 degrees in its own footprint or strafe sideways without turning the truck cabin. One example is the Airtrax Sidewinder. This forklift truck has also made an appearance in the TV -series called 'Mythbusters'.
A straight mast container handler at Haikou Xiuying Port, Hainan, China
UL 558 Safety Rated Trucks
In North America, some internal combustion powered industrial vehicles carry Underwriters Laboratories ratings that are part of UL 558. Industrial trucks that are considered "safety" carry the designations GS (Gasoline Safety) for gasoline powered, DS (Diesel Safety) for diesel powered, LPS (Liquid Propane Safety) for liquified propane or GS/LPS for a dual fuel gasoline/liquified propane powered truck.
Forklift Specification:
Model | CPCD80F | |
Load capacity kg | 8000 | |
Load center mm | 600 | |
Power type | Diesel | |
Max.lifting speeds(with load)mm/s | 350 | |
Max.Driving speeds(with without load)km/h | 26/30 | |
Max.Towing (with load)kN | 58 | |
Gradeability(with/without load)% | 21/20 | |
Lifting height mm | 3000 | |
Tilting angles(forward-backward)° | 6/12 | |
Free lift mm | 195 | |
Min. turning radius mm | 3700 | |
Min. right angle alsle width mm | 3310 | |
Min. under-clearance mm | 250 | |
Dimensions | A Overall length (inincluding fork) mm | 5160 |
B Overall width mm | 2165 | |
H Overall height(mast lowered) mm | 2700 | |
H2 Overall height(mast extend) mm | 4375 | |
H3 Overall height to overhead guard mm | 2585 | |
A1 Fork overhang mm | 700 | |
A2 Wheel base mm | 2500 | |
Tread | B1 Front tread mm | 9.00-20-14 |
B2 Rear tread mm | 9.00-20-14 | |
Tyre | Front tyre | 1600 |
Rear tyre | 1700 | |
Total weight kg | 10960 | |
B3 Fork width mm | 170 | |
H4 Fork thickness mm | 70 | |
Backrest height mm | 1374 | |
A3 Fork length mm | 1220 | |
Engine | Engine model | chaochai |
Rate power KW | 80.9 | |
Rotate Speed At Rate Power rpm | 2500 | |
Max.torque Nm | 353 | |
Rotate speed at max torque rpm | 1650 | |
Operating pressure | 2-12V/80AH | |
Type of power shift | Hydraulic | |

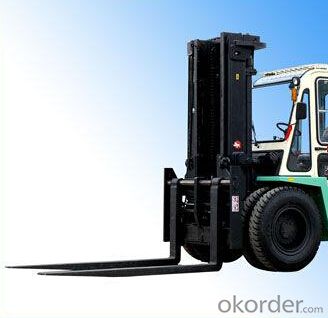

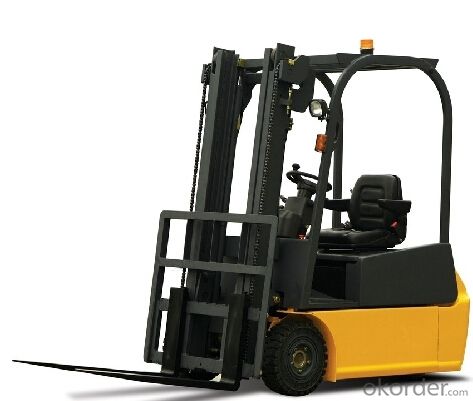

Forklift Images:
FAQ of forklift:
Q: What’s the function of forklift?
A: A forklift truck (also called a lift truck, a fork truck, or a forklift) is a powered industrial truck used to lift and move materials short distances. The forklift was developed in the early 20th century by various companies including the transmission manufacturing company Clark and the hoist company Yale & Towne Manufacturing. Following World War II the use and development of the forklift truck has greatly expanded worldwide. Forklifts have become an indispensable piece of equipment in manufacturing and warehousing operations.
Q: What’s the general operations of forklift:
A: Forklift cab with control layout.
Forklifts are rated for loads at a specified maximum weight and a specified forward center of gravity. This information is located on a nameplate provided by the manufacturer, and loads must not exceed these specifications. In many jurisdictions it is illegal to remove or tamper with the nameplate without the permission of the forklift manufacturer.
Q: What are the Forklift safety Standards?
A: 1, Forklift safety is subject to a variety of standards world wide. The most important standard is the ANSI B56—of which stewardship has now been passed from the American National Standards Institute (ANSI) to the Industrial Truck Standards Development Foundation after multi-year negotiations. ITSDF is a non-profit organization whose only purpose is the promulgation and modernization of the B56 standard.
2, Other forklift safety standards have been implemented in the United States by the Occupational Safety and Health Administration (OSHA) and in the United Kingdom by the Health and Safety Executive.
3, Driver safety: In many countries forklift truck operators must be trained and certified to operate forklift trucks. Certification may be required for each individual class of lift that an operator would use.
