According to the cross section of the silo outlet, SU-type Single Shaft Screw Feeders are available with standard U-shaped or with flared V-section trough. In a light-duty version, SU-Feeders are used for flour and materials with similar bulk density and properties. For animal feed and similar products a heavy-duty version is available.
SU Screw Feeders are available with ATEX, Zone 22 certification.

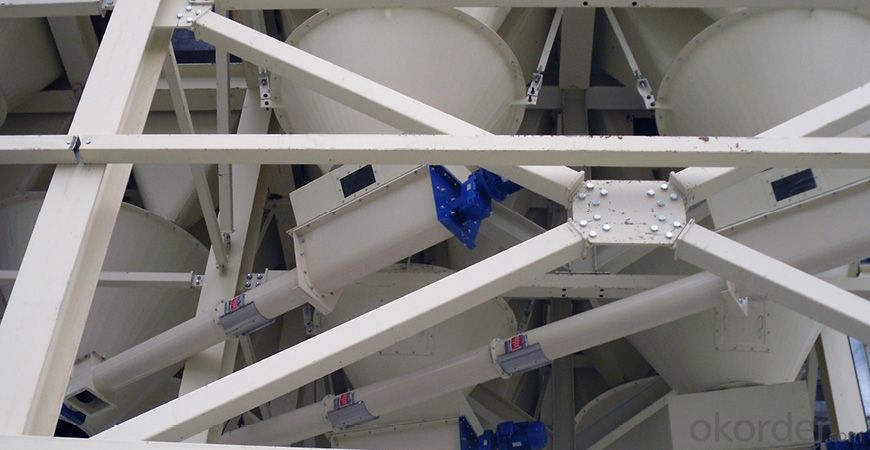

Some powders or granular materials are so poorly flowing that they cannot be stored in silos with a circular outlet cone. The silo simply would not empty. Such materials (e.g. flour) require storage in silos with a steeper cone and an oblong outlet opening. With their inlet trough section SU-type Screw Feeders match the shape of the silo outlet. The trough section is coupled to a tubular section for efficient material feeding towards further processing.
Light or medium-heavy-duty carbon steel trough in modular flanged sections
Light or medium-heavy-duty carbon steel helicoid flighting welded on centre pipe
Open trough section with drilled WAM standard trough flange; round outlet with WAM standard drilled flange
Powder-coated
Robust cast iron body flanged end bearing assemblies with externally positioned bearings and manually adjustable packing gland seals
Splined or bolted shaft couplings
Drive unit mounted at inlet or outlet end
Direct drives in a compact version, with coupling transmission, or with chain or belt transmission
Maintenance-free intermediate cast hanger bearings with self-lubricating slide bushes
Light or medium-heavy-duty carbon steel trough in modular flanged sections
Light or medium-heavy-duty carbon steel helicoid flighting welded on centre pipe
Open trough section with drilled WAM standard trough flange; round outlet with WAM standard drilled flange
Powder-coated
Robust cast iron body flanged end bearing assemblies with externally positioned bearings and manually adjustable packing gland seals
Splined or bolted shaft couplings
Drive unit mounted at inlet or outlet end
Direct drives in a compact version, with coupling transmission, or with chain or belt transmission
Maintenance-free intermediate cast hanger bearings with self-lubricating slide bushes
Constant feed rates
Sturdy design
Prevents bridging, rat-holing or segregation improving material flow
Modular design enabling easy access and individual custom-design features
Food-grade finishing and painting
Air-purged shaft seals
Square, rectangular or shoe-type outlet spouts with drilled WAM standard flanges
Overflow hatches
Slide valves
SU SCREW FEEDERS ARE AVAILABLE WITH ATEX, ZONE 22 CERTIFICATION.
