Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:580 pc
Supply Capability:10000 pc/month

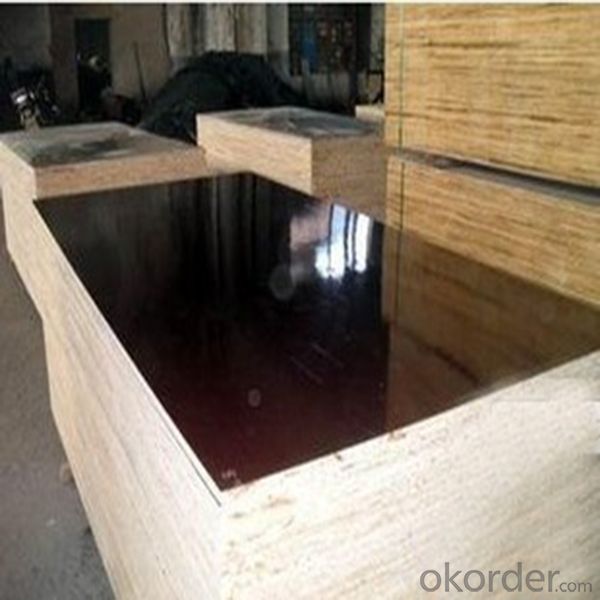

ZNSJ waterproof shutter plywood for bridge construction
Dimensions of ZNSJ waterproof shutter plywood for bridge construction: 1220*2240*（6-20）, 6-8mm thickness normally used as curved plywood, other normal use thickness are 12mm, 15mm, 18mm.
Product Application of ZNSJ waterproof shutter plywood for bridge construction:Mirror finished special bamboo plywood also called bamboo plywood for bridge construction, mirror surface bamboo plywood, clear water bamboo plywood. Widely used in highway, bridge, dam, tunnel, power plant and so on which need mirror effect concrete, also applicable to free- painting house building.
Product Advantages of ZNSJ waterproof shutter plywood for bridge construction:
Except all the bamboo plywood advantages, the unique mirror effect, perfectly solved the mark defect of cast-in-situ construction concrete face. Promote the quality of the concrete appearance process to a new platform! To provide reliable technology for building owners to create excellent project.
Items | Parameters |
Product Name | Bridge Special Bamboo Plywood，Bamboo plywood , packing plywood, commercial plywood, Film faced Plywood , film faced bamboo plywood, bamboo formwork, bamboo board, bamboo pannel, |
Specifications | 1220*2440*（10-20） |
Glue | Phenolic glue |
Materials | Bamboo +Poplar |
Moisture Content | 11.7 |
Density | 850kg/m³ |
Water Absorption | ≤10% |
Modulus Of Elasticity | //≥6.1*103N/mm2 ≥4.5*103N/mm2 |
Modulus Of Rupture | //≥70N/mm2 //≥50N/mm2 |
Impact Strength | ≥50Kj/m2 |
Bonding Strength | ≤50mm/layer |
Abrasion Value | ≤0.09g/100r |
Using times | 5-8times |
Preservation Stregth | //≥50N/mm2 ⊥≥35N/mm2 |
